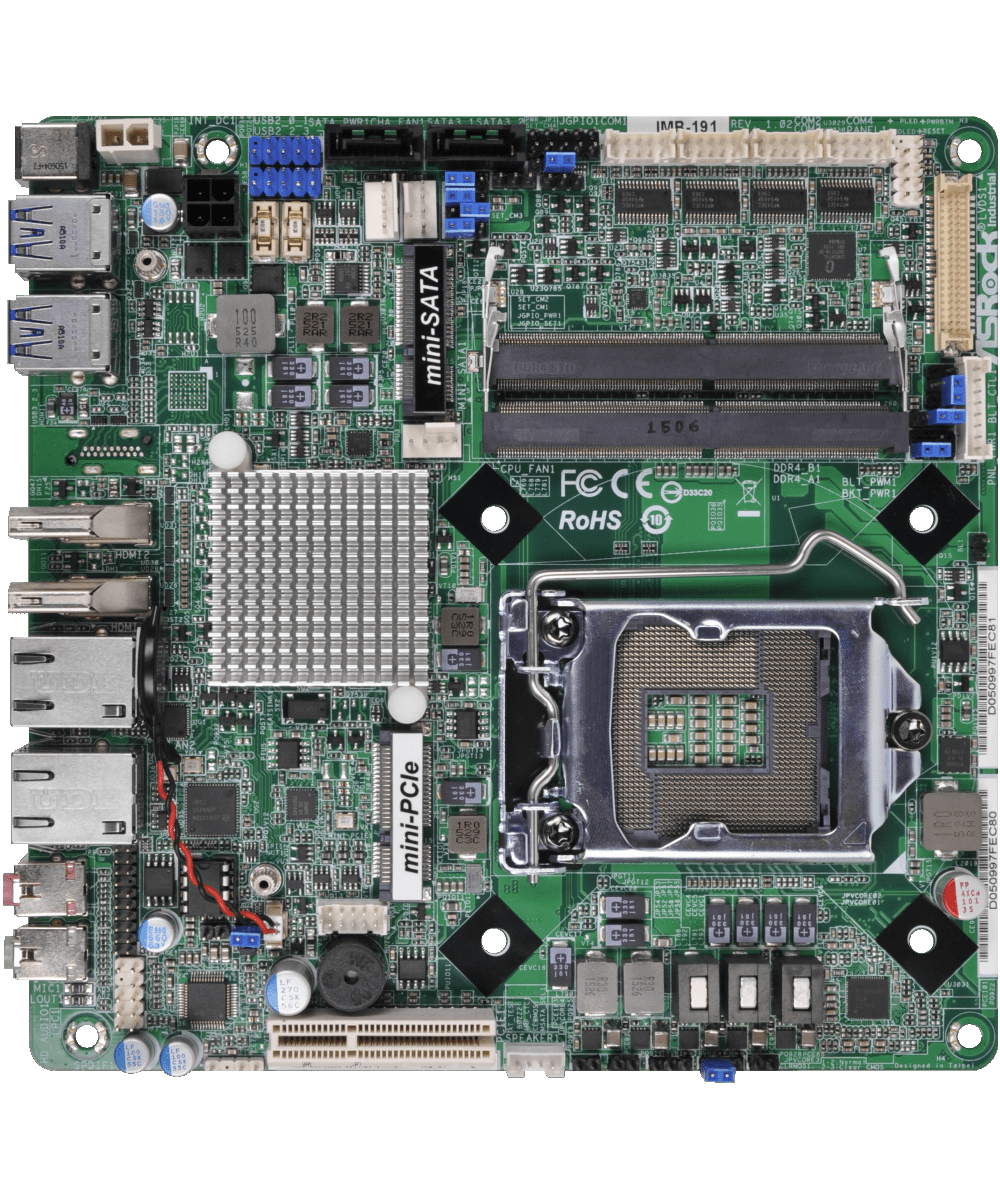

IMB-191 Mini-ITX Motherboard

  • Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors with H110 chipset
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 2133 MHz (16GB per DIMM)
  • 1 x PCIe x4 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x mSATA, 4 x COM, 2 x SATA3
  • 2 x Intel Gigabit LAN
  • Supports dual display, 2 x HDMI 2.0, 1 x VGA header, 1 x LVDS
  • TPM Header
  • 12V/ 19~24V DC-In
產品型錄
產品規格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® 7th/ 6th Gen (Kabylake-S/Skylake-S) Core™ Processors
Chipset Intel® H110
Socket LGA1151
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR4 2133 MHz
Capacity 32 GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 11/12
HDMI HDMI 1.4b
Max resolution up to 4096x2160@24Hz
VGA Max resolution up to 1920x1200@60Hz
LVDS Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay Dual Display

Expansion Slot

PCIe 1 x PCIe x4 (Gen2)
mini-PCIe 1 x Half size with PCIe x1 and USB 2.0

Audio

Interface Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000Mbps
Connector 2 x RJ-45

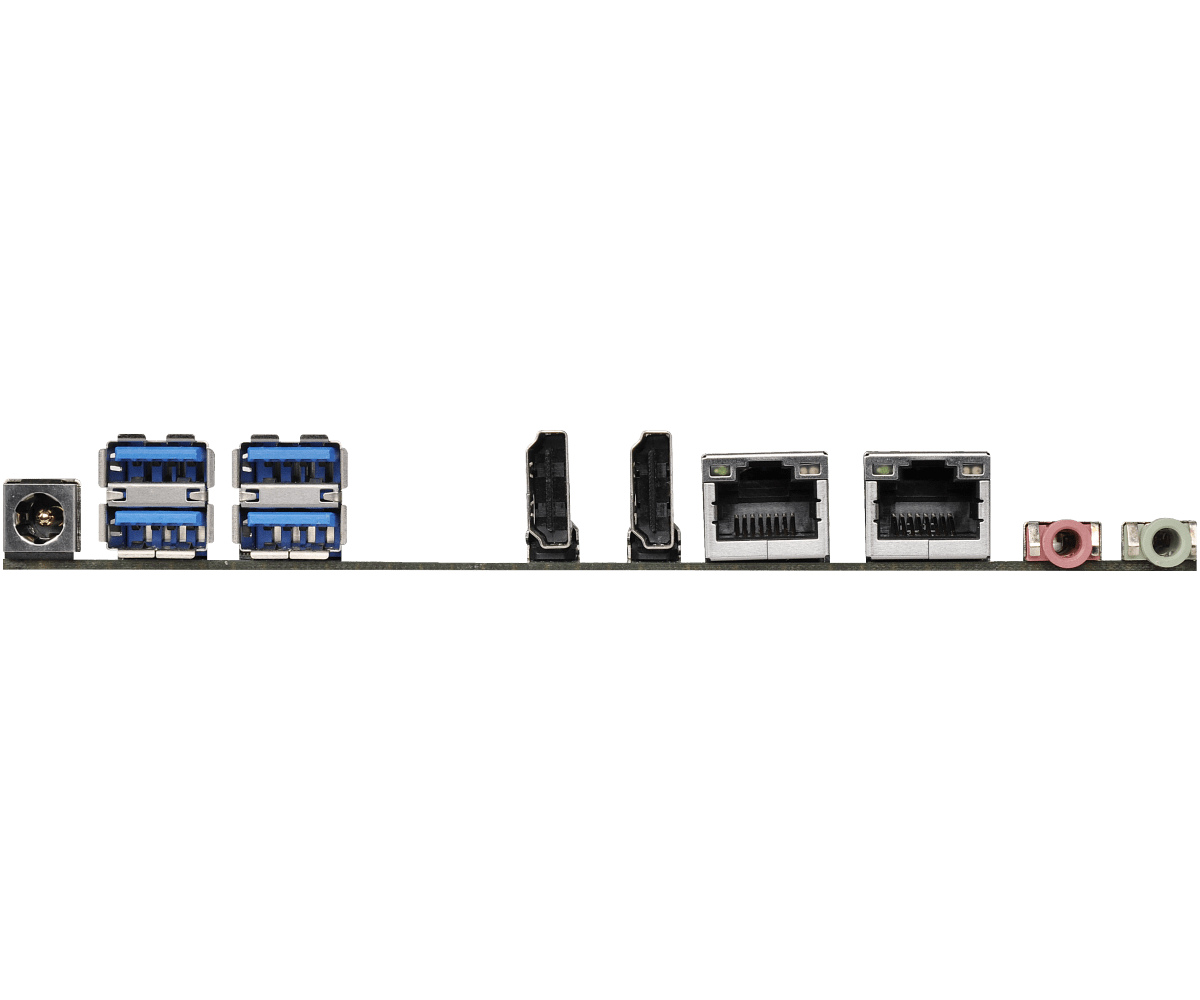

Rear I/O

HDMI 2 x HDMI 1.4b
Ethernet 2 x 1 Gigabit LAN
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
DC Jack 1

Internal Connector

USB 4 x USB 2.0 (2 x 2.54 pitch header)
COM COM1, 2(RS-232/422/485)
COM3,4(RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM Header
LVDS 1
VGA 1 x Header
SATA PWR Output 1
Speaker Header 1

Storage

mSATA 1 x Full size with SATA3 and USB 2.0
SATA 2 x SATA3 (6Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V or 19~24V DC-In with 4-pin plug PWR cable or DC Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020325000AK)
1 x I/O Shield THIN (13G020325010AK)
2 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020325000AK)
1 x I/O Shield THIN (13G020325010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 ASRock 3TB+ Unlocker utility ver:1.1.1 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 INF driver ver:10.1.1.12 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 VGA driver ver:21.20.16.4542 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 Date 2020-05-08 下載
說明 Intel Lan driver ver:20.2 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Realtek high definition audio driver ver:9116_FF00 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-03-10 下載
說明 Intel USB 3.0 driver ver:4.0.2.42 作業系統 Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 VGA driver ver:21.20.16.4541 作業系統 Win 7 Date 2020-05-08 下載
說明 Intel USB 3.0 Adaptation driver ver:1.0.1.45 作業系統 Win 8.1 x 64 Date 2020-05-08 下載
說明 SATA Floppy Image ver:14.6.0.1029 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 Intel Management Engine driver ver:11.7.0.1045 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
說明 COM Port driver ver:1.0.2011.1109 作業系統 Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2020-05-08 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.80 更新方式 / 如何更新 BIOS 說明 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
日期 2021-04-23 下載
版本 1.80 更新方式 / 如何更新 DOS 說明 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
日期 2021-04-23 下載
版本 1.80 更新方式 / 如何更新 Windows 說明 1. Update audio codec
2. Update Intel microcode
3. Update Intel ME version
日期 2021-04-23 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-06 下載
說明 User Manual 語言 English 日期 2020-05-06 下載
說明 日期 下載
下載 CPU Support List 日期 2020-05-06 下載
