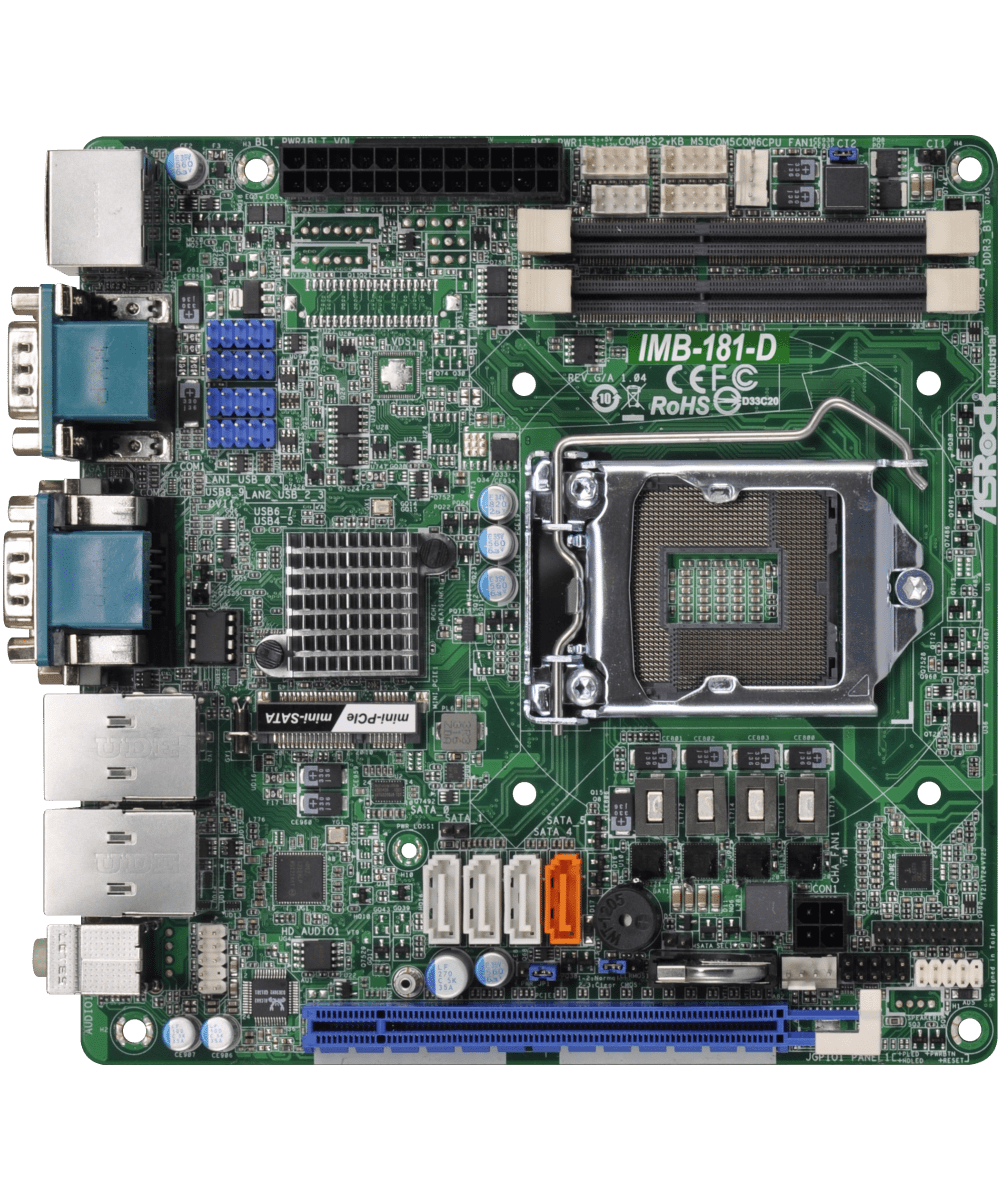

IMB-181-D Mini-ITX Motherboard

  • Supports Intel® 4th Gen (Haswell-S) Core™ Processors (Socket 1150)
  • Supports Dual Channel DDR3 SO-DIMM 1600, up to 16GB
  • 1 x HDMI, 1 x DVI, 1 x Displayport
  • 4 x USB 3.0, 8 x USB 2.0, 4 x SATA3
  • 1 x Mini-PCIe, 1 x PCIe x16, 1 x mSATA
  • 2 x Intel® LAN
  • 1 x TPM Header
  • ATX PWR (4 + 24)
產品型錄
產品規格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Supports Intel® 4th Gen (Haswell-S) Core™ Processors
Chipset Intel® Q87

Memory

Technology Dual Channel DDR3 1333 / 1600MHz
Capacity 16GB
Socket 2 x SO-DIMM

Graphics

Controller Intel HD Graphics (By CPU)
HDMI Supports HDMI 1.4a, max resolution 1920 x 1200
VGA Supports max resolution 2048 x 1536
MultiDisplay Triple Display
DisplayPort Supports HDMI 1.4a, max resolution 2560 x 1600

Expansion Slot

PCIe 1 x PCIe x16
mini-PCIe/mSATA 1 x Full size with PCIe x1, SATA3 and USB 2.0

Audio

Interface Realtek ALC888S, High Definition Audio. Mic-in / Line-out

Ethernet

Controller/ Speed LAN1: Intel® I217LM with 10/100/1000 Mbps
LAN2: Intel® I210 with 10/100/1000Mbps
Connector 2 x RJ-45

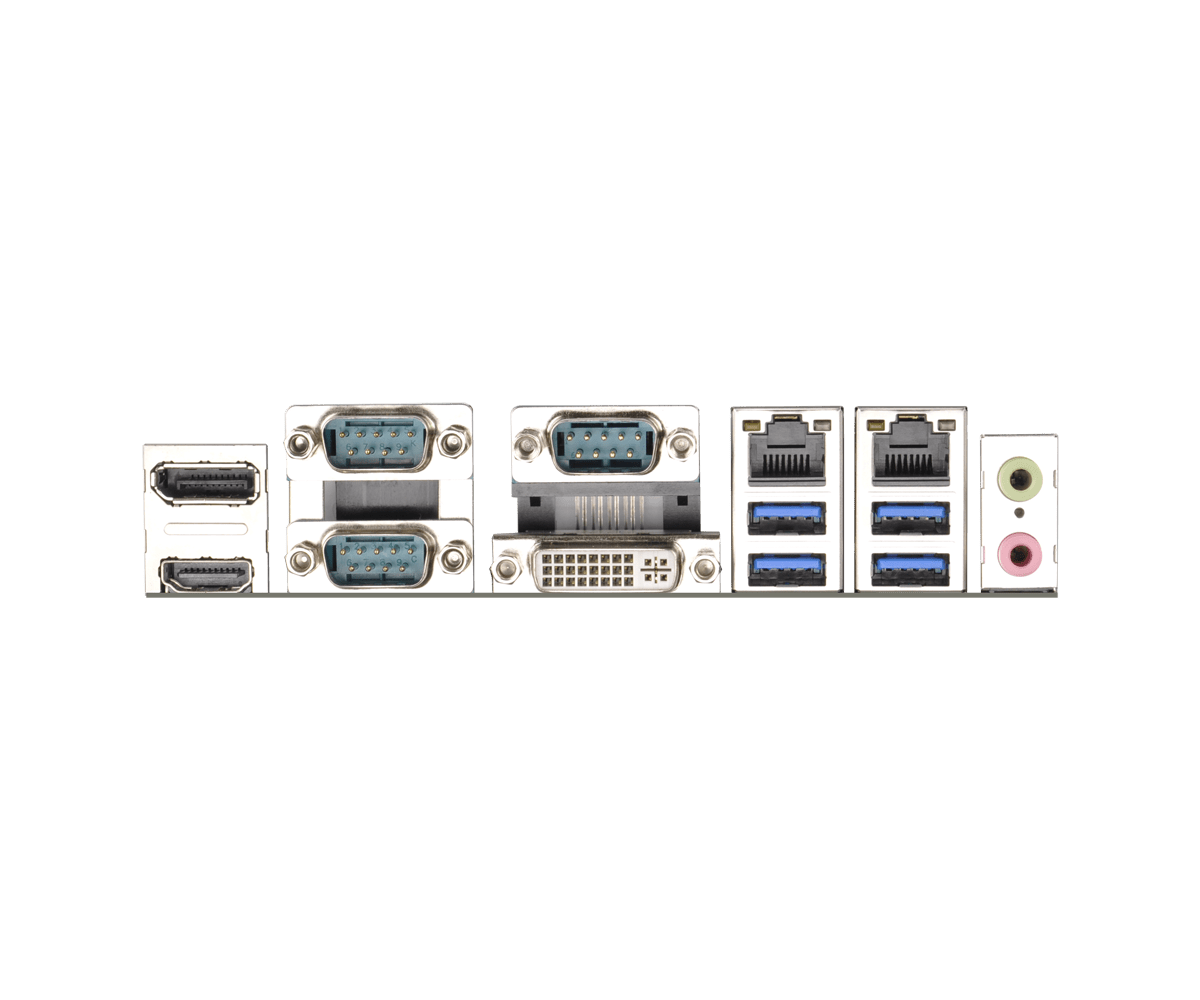

Rear I/O

HDMI 1
Ethernet 2
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
COM 3 x COM (RS-232/422/485)
DisplayPort 1
DVI 1 (DVI-I)

Internal Connector

USB 8 x USB 2.0
COM 3 x COM (RS-232)
GPIO 4 x GPI, 4 x GPO
Speaker Header 1
TPM 1 x Header
VGA 1

Storage

SATA 2 x SATA3

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR ATX PWR (4 + 24)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020182000AK)
2 x SATA Data Cable (14G00010107DAK)
Bulk Package 2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020182000AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 VGA driver ver:15.40.4.64.4256_win10 作業系統 Win 10 x 64 Date 2021-02-05 下載
說明 VGA driver ver:15.40.9.4285 作業系統 Win 10 Date 2021-02-05 下載
說明 Intel Management Engine driver ver:11.0.0.1158_1.5M 作業系統 Win 10 x 64 , Win 10 Date 2021-02-05 下載
說明 Microsoft .NET Framework 4.5 作業系統 Win 7 x 64 , Win 7 Date 2021-02-04 下載
說明 VGA driver ver:15.33.1.64.3277 作業系統 Win 8.1 x 64 Date 2020-05-29 下載
說明 VGA driver ver:15.31.12.3204 作業系統 Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Intel USB 3.0 driver ver:2.0.0.102 作業系統 Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Intel Rapid Storage Technology driver and utility ver:14.5.0.1081 作業系統 Win 10 x 64 , Win 10 Date 2020-05-29 下載
說明 Intel Rapid Storage Technology driver and utility ver:12.8.0.1016 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 SATA Floppy Image ver:12.8.0.1016 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 COM Port driver ver:1.0.2011.1109 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Intel Lan driver ver:20.2_PV_v2 作業系統 Win 10 x 64 , Win 10 Date 2020-05-29 下載
說明 Lan driver ver:18.5_PV 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Intel Smart Connect driver ver:4.2.41.2633 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Intel Management Engine driver ver:9.5.14.1724_5M 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 INF driver ver:9.4.0.1026 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 Realtek high definition audio driver ver:7058 作業系統 Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-29 下載
說明 INF driver ver:10.1.1.8 作業系統 Win 10 x 64 , Win 10 Date 2020-05-27 下載
說明 Realtek high definition audio driver ver:7560 作業系統 Win 10 x 64 , Win 10 Date 2020-05-27 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 2.60 更新方式 / 如何更新 BIOS 說明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-02-02 下載
版本 2.60 更新方式 / 如何更新 DOS 說明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-02-02 下載
版本 2.60 更新方式 / 如何更新 Windows 說明 1. Update audio codec
2. Update Intel microcode
3. Update TPM2.0 module
4. Improve HDD compatibility
日期 2021-02-02 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-29 下載
說明 User Manual 語言 English 日期 2020-05-29 下載
說明 日期 下載
下載 CPU Support List 日期 2020-06-18 下載
