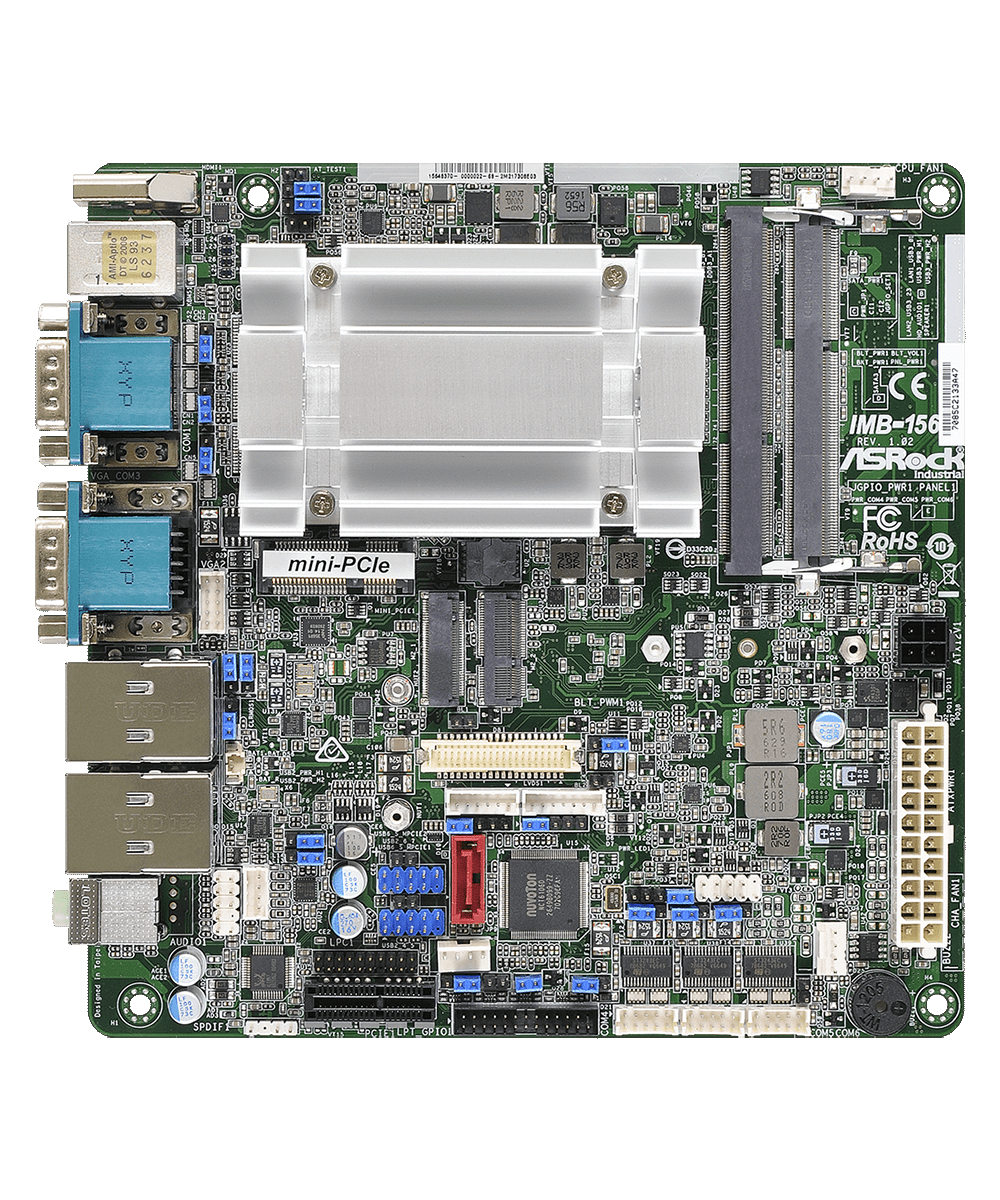

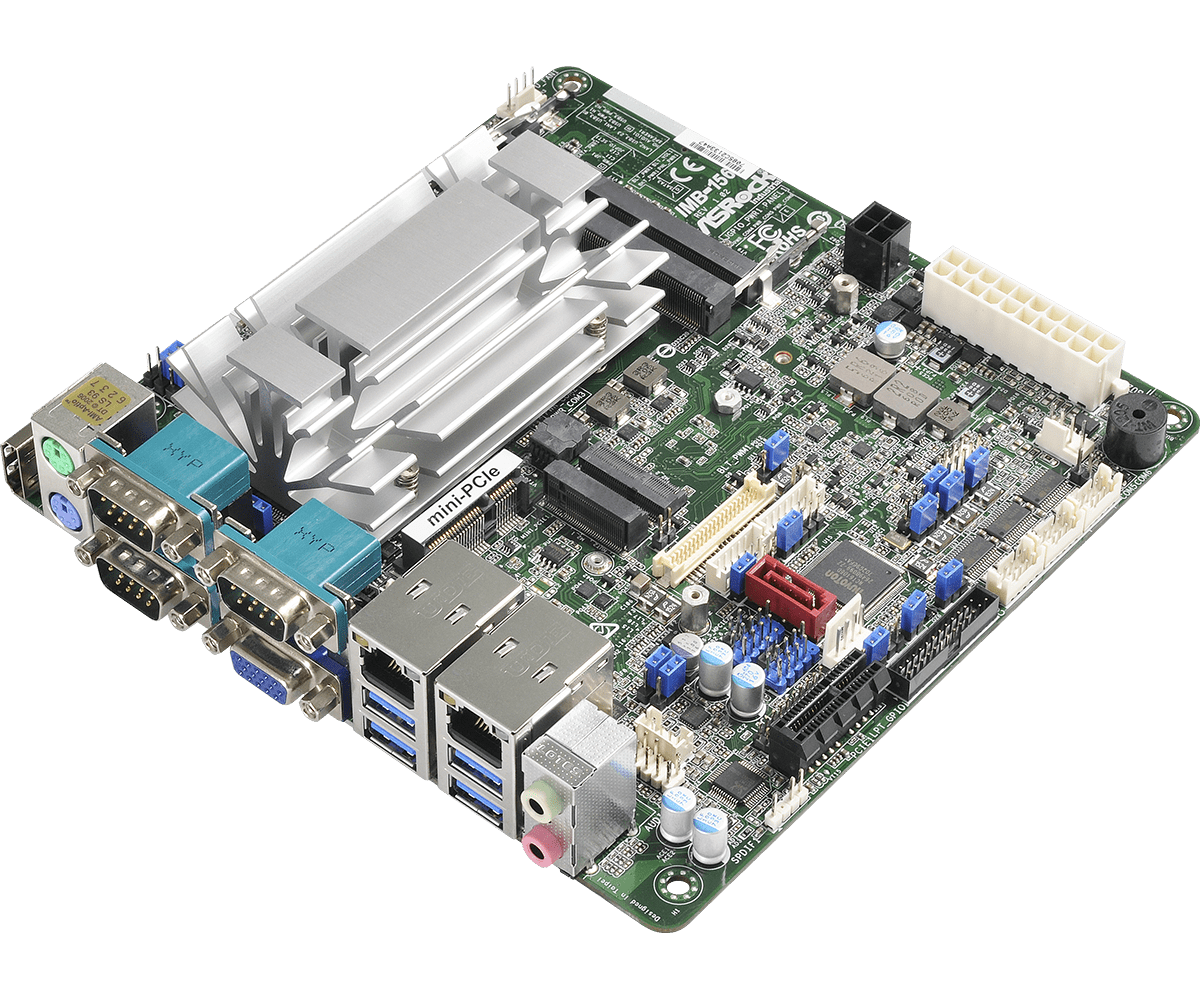

IMB-156J Mini-ITX Motherboard

  • Intel® Apollo Lake SoC Processor
  • 2 x 204-pin SO-DIMM up to 16GB DDR3L 1866 MHz (8GB per DIMM)
  • 1 x PCIe x1 (Gen2), 4 x USB 3.1 Gen1, 4 x USB 2.0, 1 x mini-PCIe, 1 x M.2 Key M, 1 x M.2 Key E, 6 x COM, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports triple display, 1 x HDMI 1.4b, 1 x VGA, 1 x LVDS
  • TPM header
  • 12V or +19V~+24V DC-In / ATX PWR
產品型錄
產品規格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU Intel® Apollo Lake SoC Processor J3455, QC, 1.5 GHz, 10W
Chipset SoC
BIOS AMI SPI 128 Mbit

Memory

Technology Dual Channel DDR3L 1866 MHz
Capacity 16 GB (8GB per DIMM)
Socket 2 x 204-pin SO-DIMM

Graphics

Controller Intel® Gen9 Graphics DX 12
HDMI HDMI 1.4b
Max resolution up to 4096 x 2160@24Hz
VGA Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 1 x PCIe x1 (Gen2)
mini-PCIe 1 x Full size with PCIe x1 and shared USB 2.0
M.2 1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed 2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

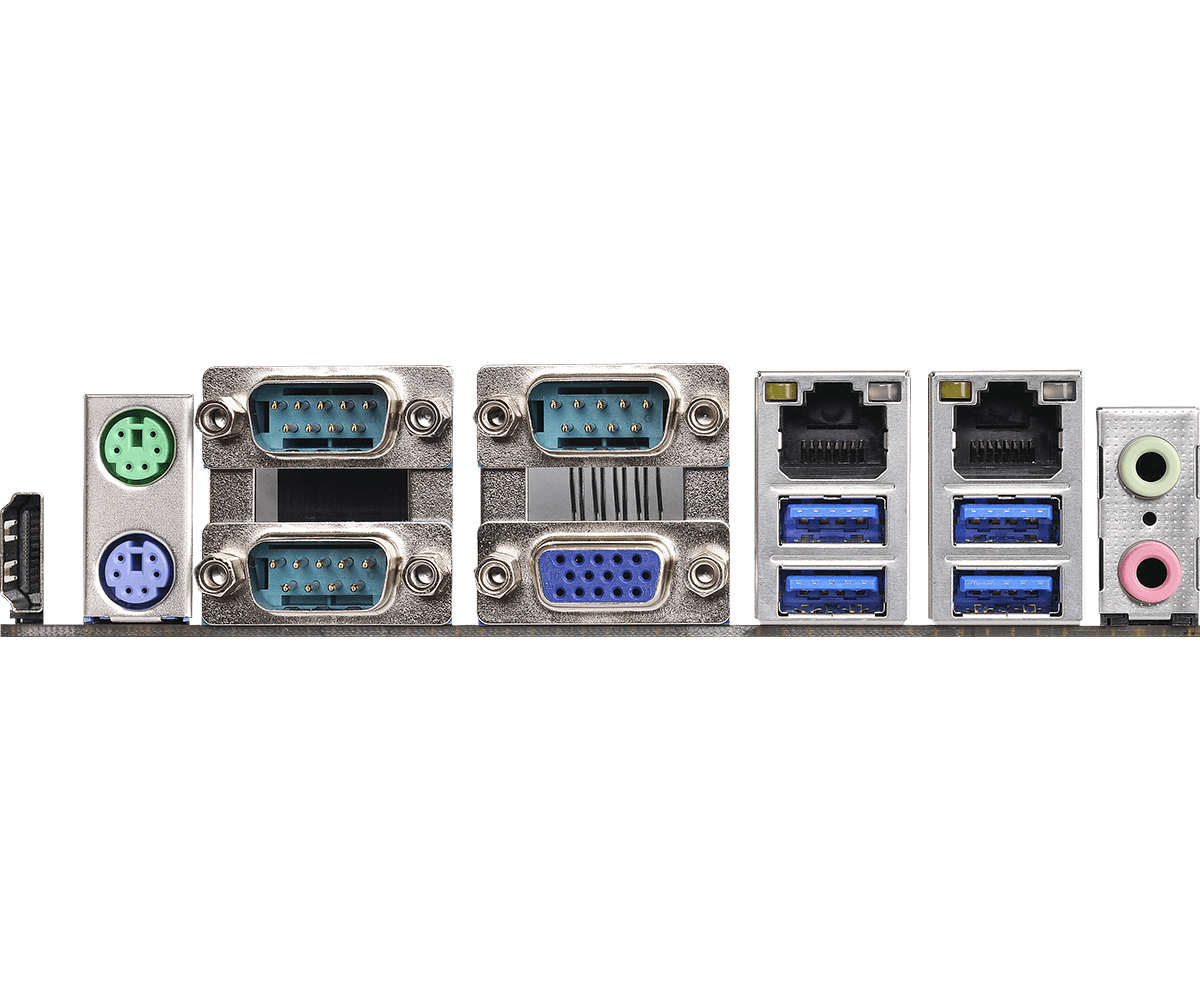

Rear I/O

HDMI 1 x HDMI 1.4b
VGA 1
Ethernet 2 x Realtek 1 Gigabit LAN
USB 4 x USB 3.0
Audio 2 (Mic-in, Line-out)
COM 3 x COM (RS-232/422/485)
PS2 1 x PS / 2 combo

Internal Connector

USB 4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM Header
LVDS 1
SATA PWR Output 1
Speaker Header 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD
SATA 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V or +19V~+24V DC-In / ATX PWR
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 2 x SCREW M2,D=5.3 (13G020302010AK)
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020221000AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 Adobe Reader ver:9.0 作業系統 Win 7 x 64 , Win 7 Date 2021-06-29 下載
說明 VGA driver ver:15.45.20.64.4727 作業系統 Win 10 x 64 Date 2021-06-29 下載
說明 Realtek Teaming driver ver:2.0.2.11 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2021-06-29 下載
說明 Intel iRMT ver:1.1.50.493 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2021-06-29 下載
說明 Realtek Lan driver ver:8046 作業系統 Win 8.1 x 64 Date 2021-06-29 下載
說明 Realtek Lan driver ver:7100 作業系統 Win 7 x 64 Date 2021-06-29 下載
說明 Microsoft .NET Framework 4.5 作業系統 Win 7 x 64 Date 2021-06-29 下載
說明 Intel Trusted Execution Engine ver:3.1.75.2351 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 Date 2021-06-29 下載
說明 Intel Serial IO driver ver:30.100.1631.03_PV 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 Date 2021-06-29 下載
說明 INF driver ver:10.1.1.34 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 Date 2021-06-29 下載
說明 Realtek high definition audio driver ver:9151_FF00 作業系統 Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 7 x 64 , Win 7 Date 2021-06-29 下載
說明 COM Port driver ver:1.0.2011.1109 作業系統 Win 8.1 x 64 , Win 8 x 64 , Win 7 x 64 , Win 7 Date 2021-06-29 下載
說明 [Beta] Realtek Lan driver ver:10047_02232021 作業系統 Win 10 x 64 Date 2021-04-08 下載
說明 ASRock 3TB+ Unlocker utility ver:1.1.1 作業系統 Win 10 x 64 Date 2020-05-08 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.70 更新方式 / 如何更新 BIOS 說明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下載
版本 1.70 更新方式 / 如何更新 DOS 說明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下載
版本 1.70 更新方式 / 如何更新 Windows 說明 1. Update audio codec
2. Update Realtek Lan FW
日期 2021-06-18 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-05-06 下載
說明 User Manual 語言 English 日期 2020-05-06 下載
