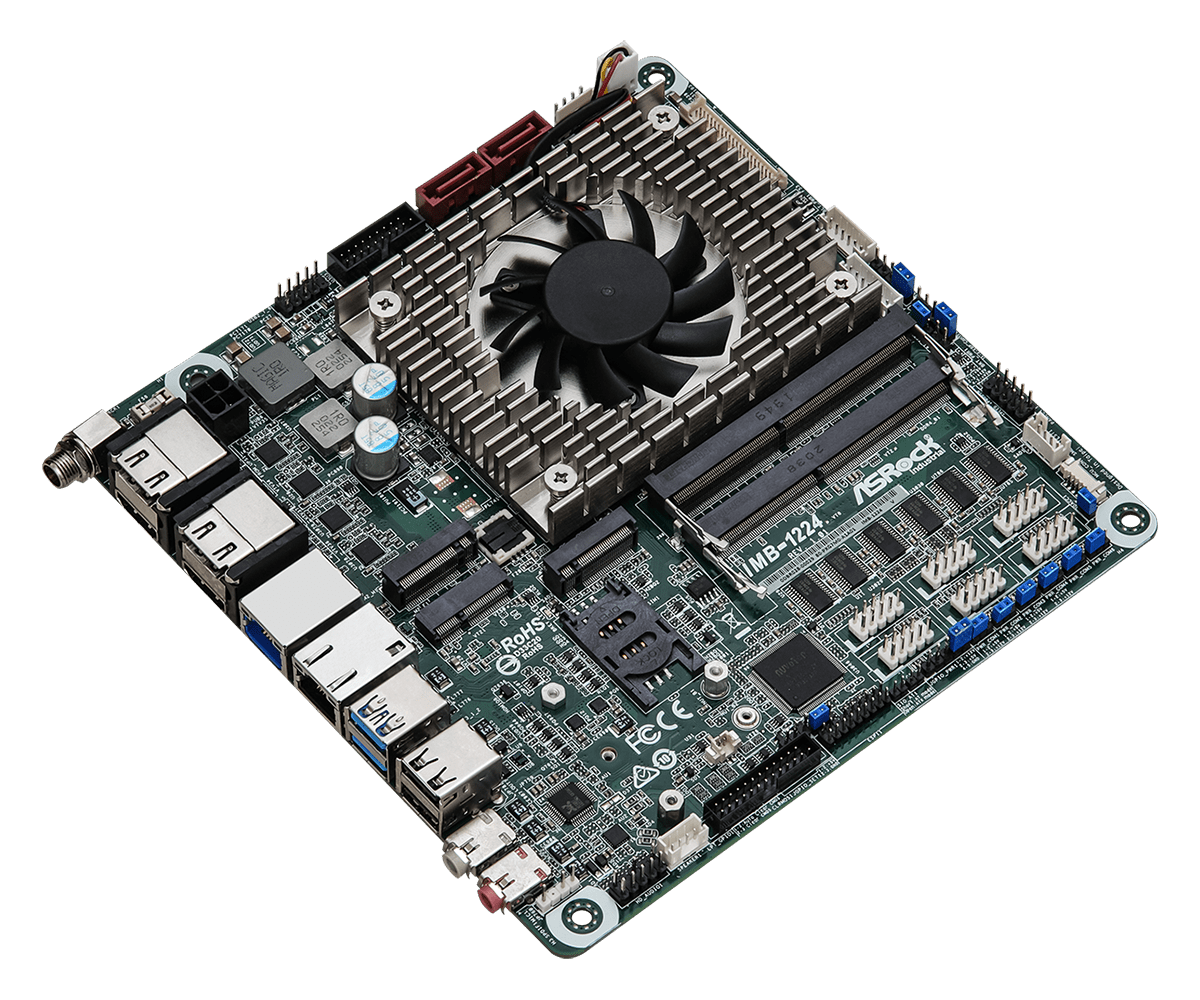

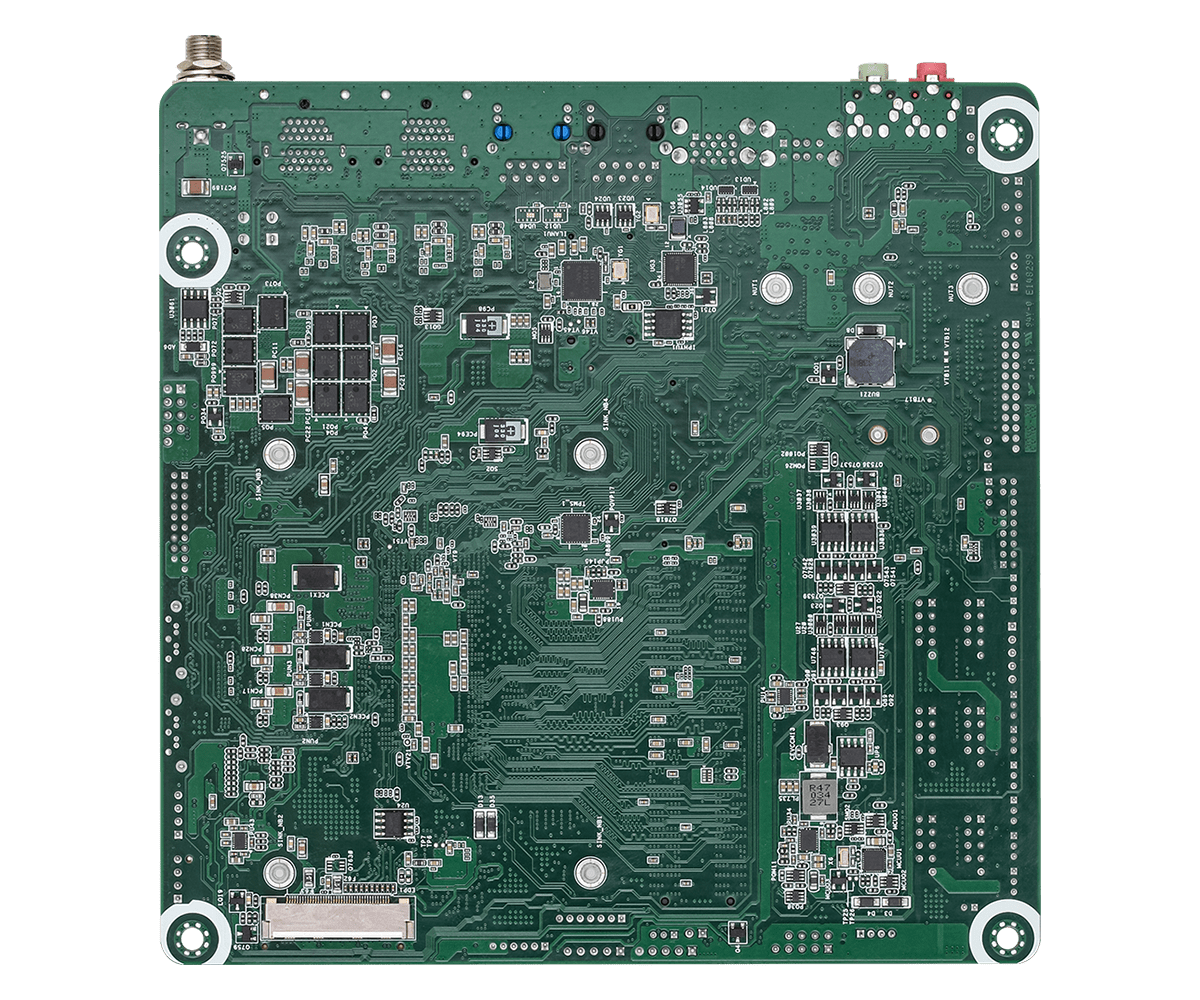

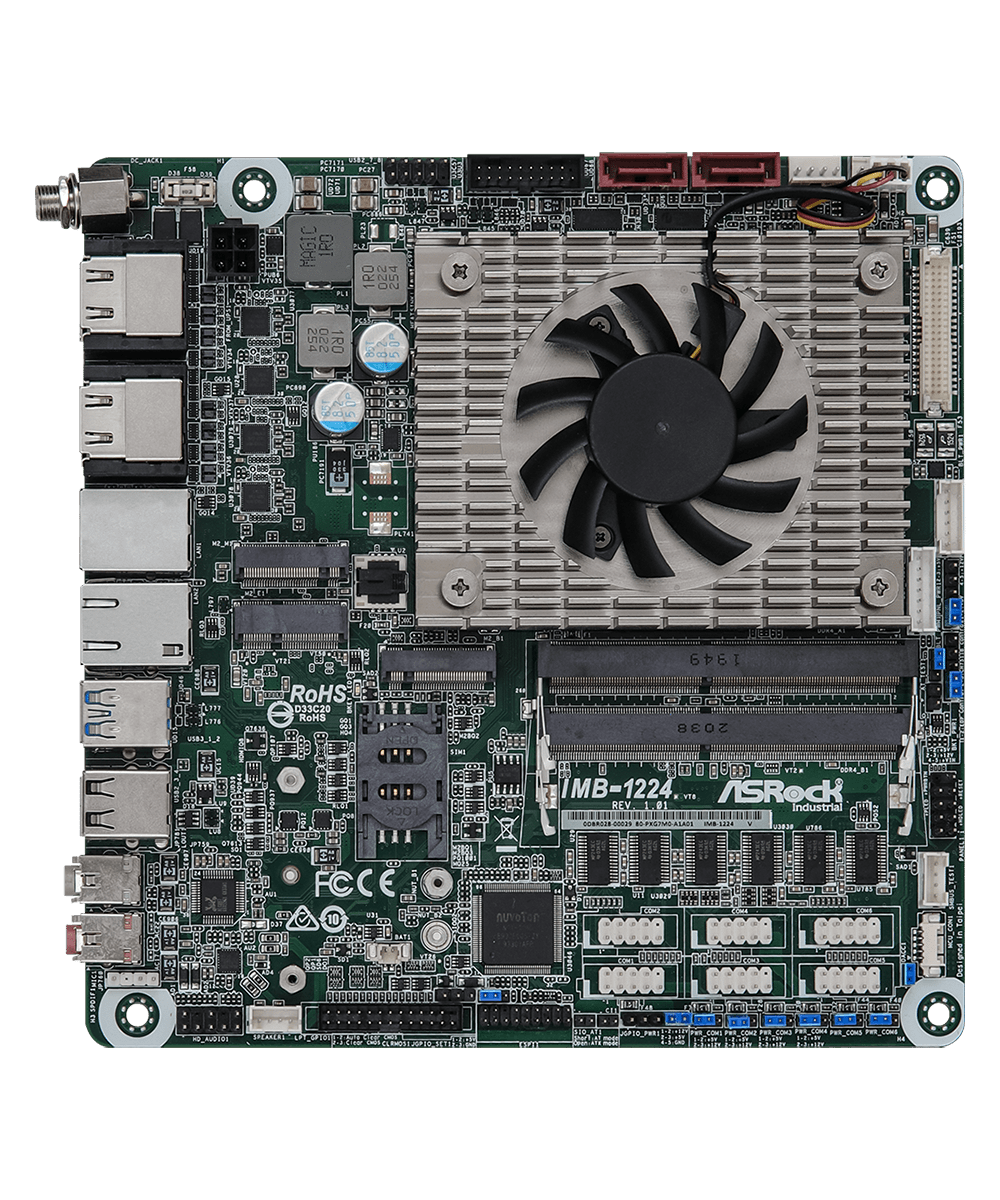

IMB-1224M Mini-ITX Motherboard

Processor System

CPU	Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors,up to 28W i5-1145G7E, QC, Max Speed up to 4.1GHz
Chipset	MCP
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	64GB (32 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel® Iris® Xe Graphics
eDP	eDP Max resolution up to 4096x2304 60Hz
MultiDisplay	Quad Display
HDMI	4 x HDMI 2.0b Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz

Expansion Slot

M.2	1 x M.2 (Key E, 2230) with PCIe x1 ,USB 2.0 and CNVi for Wireless 1 x M.2 (Key B*, 3042/3052) with PCIe x1/USB 3.2/USB 2.0/SATA and SIM for 4G/5G * Shared with SATA3_1
SIM Socket	1x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out

Ethernet

Controller/ Speed	LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps LAN2: Intel® I219LM with 10/100/1000 Mbps, supports vPro
Connector	2 x RJ-45

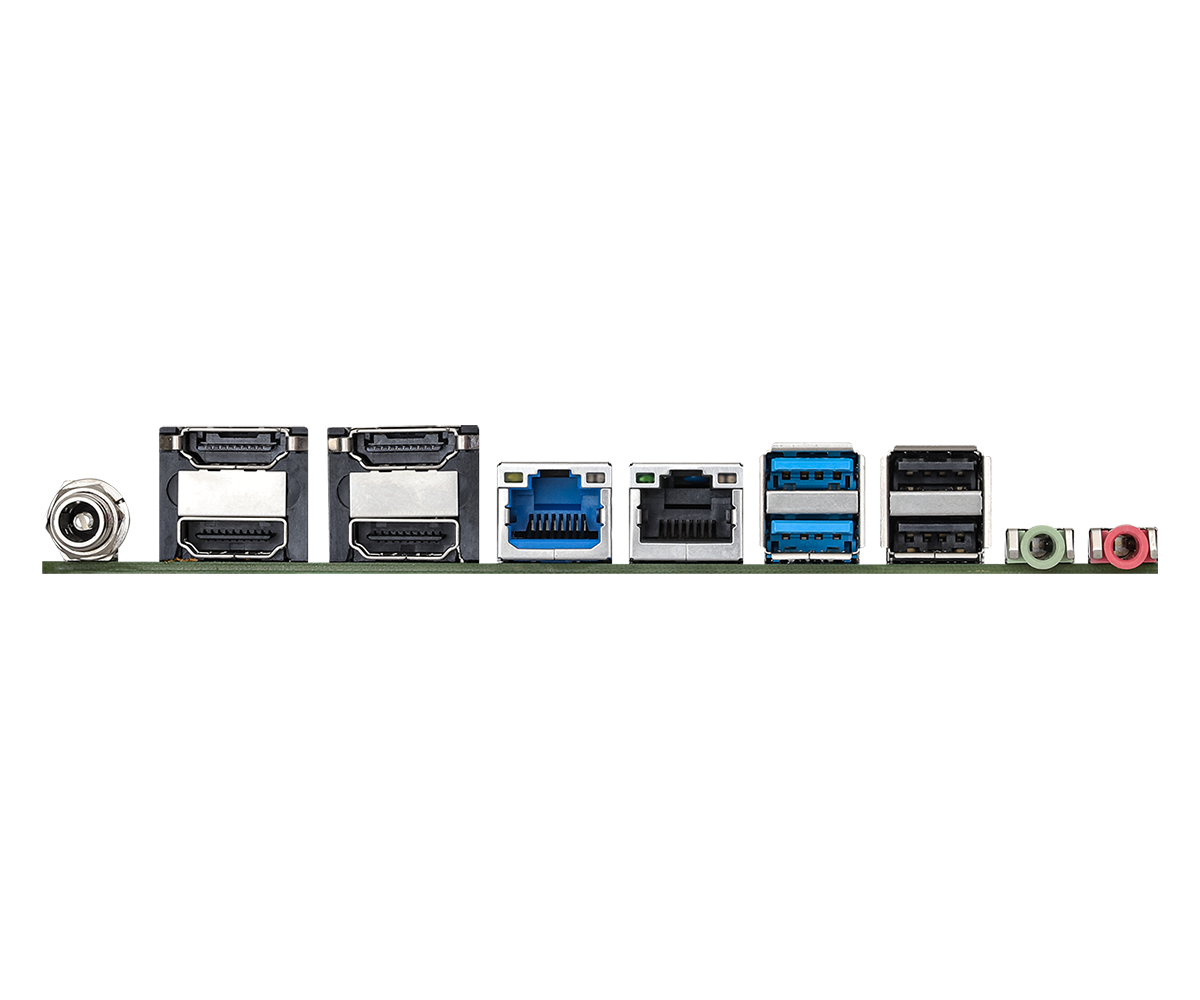

Rear I/O

Ethernet	1 x 1 Gigabit LAN 1 x 2.5 Gigabit LAN
USB	2 x USB 3.2 (Gen1), 2 x USB 2.0
HDMI	4 x HDMI 2.0b
DC Jack	1 (Screw type)
Audio	2 (Mic-in, Line-out)

Internal Connector

USB	1 x USB 3.2 (Gen1) 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 3.2 header)
COM	4 x COM (RS-232) 2 x COM (RS-232/422/485)
GPIO	8 x GPI, 8 x GPO
TPM	TPM 2.0 onboard
LVDS	1
eDP	1
Speaker Header	1
SATA PWR Output	1
Parallel	1

Storage

M.2	1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD * Shared with SATA3_0
SATA	2 x SATA3 (6Gb/s)
RAID	Intel® SATA RAID 0/1

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12~28V DC-In with 4-pin plug PWR cable or DC Jack (Screw type)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Bulk Package	1 x I/O Shield (13G020709000AK) 1 x I/O Shield THIN (13G020709010AK) 3 x SCREW M2*2,D=5 (13G020302031AK)
Gift Package	1 x I/O Shield (13G020709000AK) 1 x I/O Shield THIN (13G020709010AK) 3 x SCREW M2*2,D=5 (13G020302031AK) 2 x COM Cable (14G000006910AK) 1 x SATA Power Cable (14G000100410AK) 2 x SATA Data Cable (14G00010107DAK)
