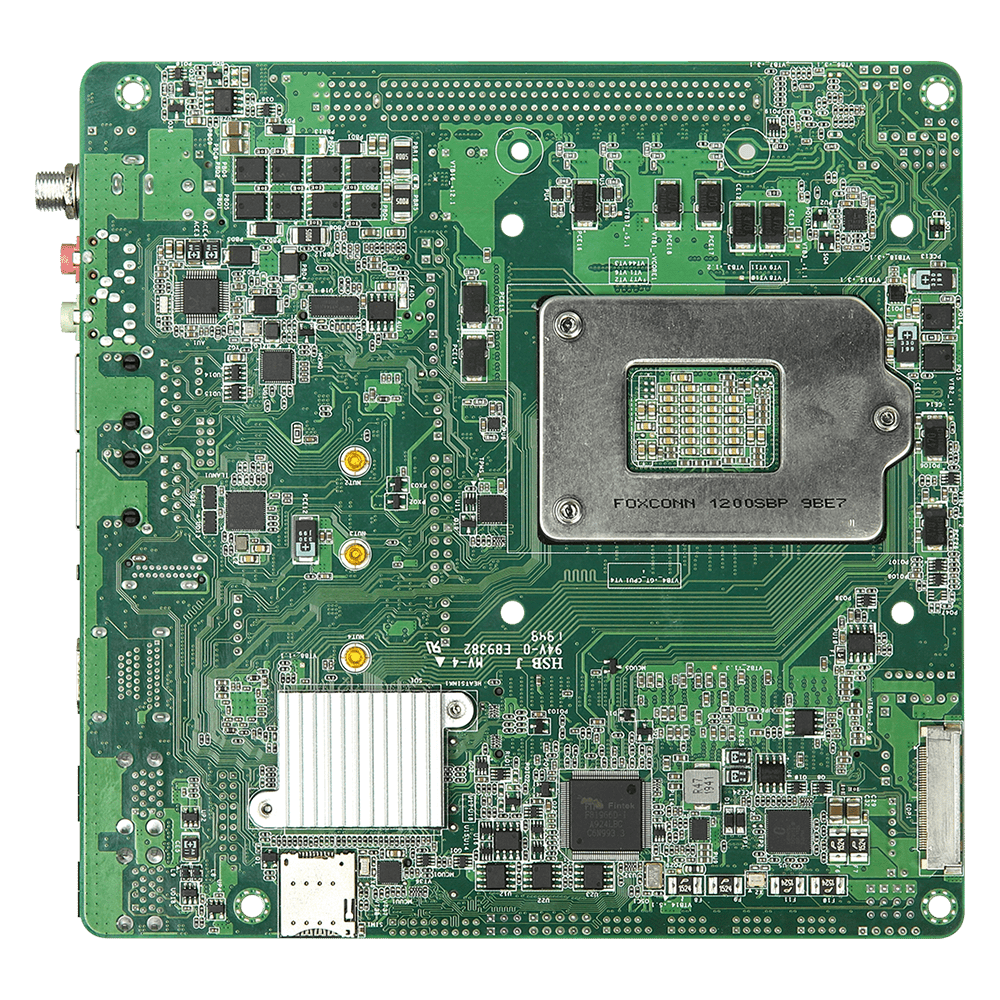

IMB-1222-WV Mini-ITX Motherboard

  • Intel® 10th Gen (Comet lake-S) Core™ Processors with Q470E chipset
  • 2 x 260-pin SO-DIMM Support Dual Channel DDR4 2933 (i9 / i7 CPU) / 2666 (i5 / i3 CPU) / 2400 (Pentium / Celeron CPU), up to 64GB
  • 1 x PCIe x16 Gen3, 6 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 4 x COM, 2 x SATA3
  • 1 x Intel 2.5 Gigabit LAN, 1 x Intel 1 Gigabit LAN
  • Support Triple display, 2 x DP 1.2, 1 x LVDS or eDP, 1 x HDMI 2.0a
  • TPM 2.0 onboard
  • Special Feature: Supports Intel® vPro, AMT, RAID 0/1/5/10
  • 12V~28V DC-in
產品型錄
產品規格

Form Factor

Dimensions Mini-ITX (6.7-in x 6.7-in x 1.0-in)

Processor System

CPU Intel® 10th Gen (Cometlake-S) Core™ Processors, up to 80W
*The performance of CPUs over 80W will be limited due to power design.
Chipset Intel® Q470E
Socket LGA1200
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 2933 / 2666 / 2400 MHz
- Intel Core i9 / i7 CPUs support DDR4 up to 2933 MHz
- Intel Core i5 / i3 CPUs support DDR4 up to 2666 MHz
- Intel Pentium / Celeron CPU support DDR4 up to 2400 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.2 , DP++
Max resolution up to 4096 x 2160@60Hz
eDP eDP 1.4, Max resolution up to 4096 x 2304@60Hz
MultiDisplay Triple Display
HDMI HDMI 2.0a, Max resolution up to 4096 x 2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz

Expansion Slot

PCIe 1 x PCIe x16 (Gen3, Support riser card x8 / x8, x8 / x4 / x4)
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042 / 3052) with PCIe x1 / USB 3.0 / USB 2.0 and SIM for 4G / 5G
SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC887/897 HD, High Definition Audio. Line-out, Mic-in

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps
LAN2: Intel® I219LM with 10/100/1000 Mbps , support AMT / vPro
Connector 2 x RJ-45

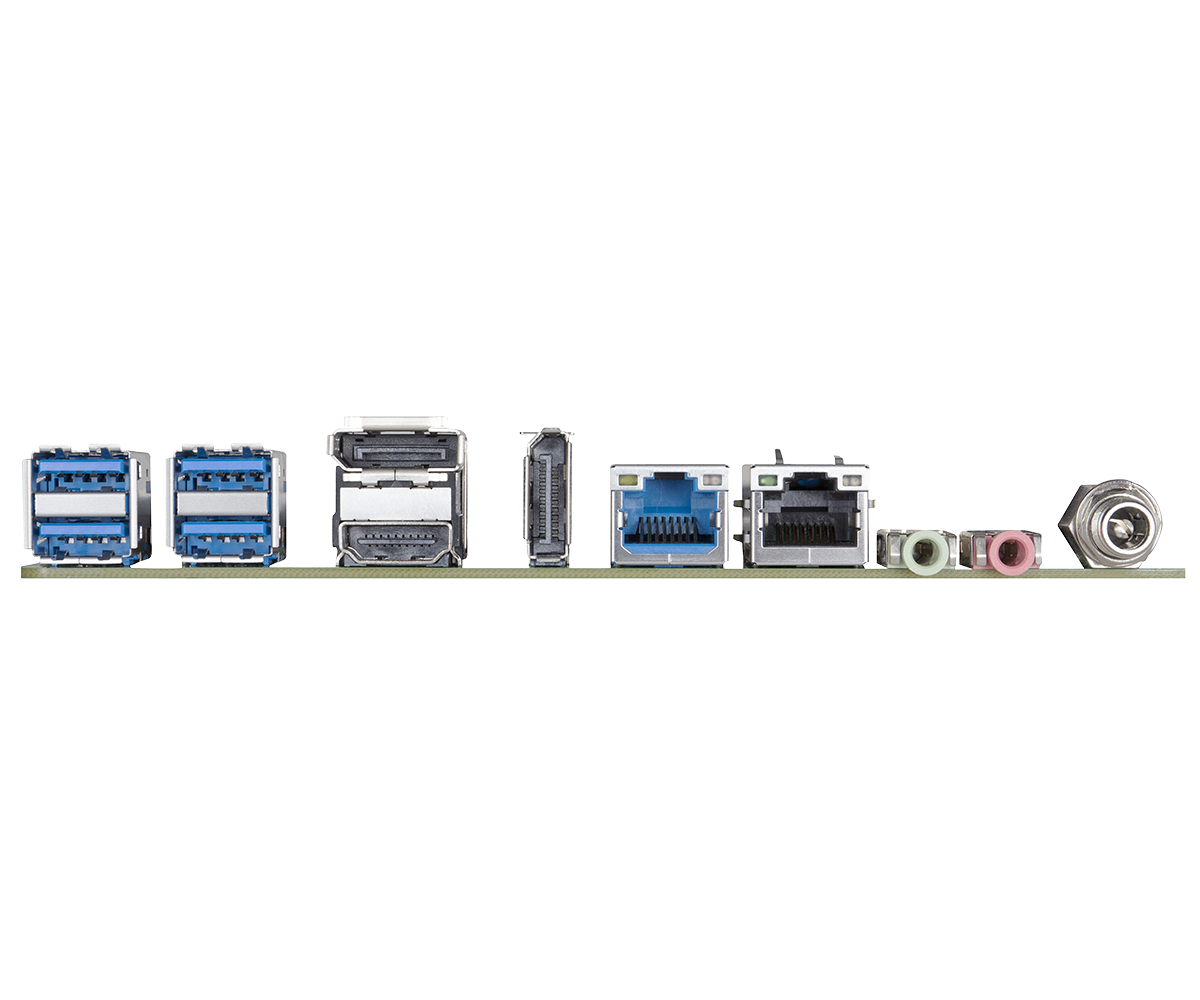

Rear I/O

DisplayPort 2 x DP 1.2
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
USB 4 x USB 3.2 Gen1
Audio 2 (Mic-in, Line-out)
HDMI 1 x HDMI 2.0a
DC Jack 1

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM COM1, 2 (RS-232/422/485), COM3, 4 (RS-232 only)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard
LVDS 1, switch by BIOS default LVDS
eDP 1, switch by BIOS default LVDS
Speaker Header 1
SATA PWR Output 1
Thunderbolt header 1

Storage

M.2 1 x M.2 (Key M, 2242 / 2260 / 2280) with PCIE x4 or SATA3
SATA 2 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1/5/10

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 12V~28V DC-in with 4 pin plug PWR cable or DC Jack (Screw type)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)
1 x COM Cable (14G000000310AK)
2 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK)
Bulk Package 3 x SCREW M2,D=5 (13G020302031AK)
1 x NUT M2 H=3.35mm (13G020271020AK)
1 x NUT M2 H=6.5mm (13G0201950B0AK)
1 x I/O Shield (13G020625000AK)
1 x I/O Shield THIN (13G020625010AK)

規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。

支援下載

作業系統:

說明 作業系統 日期 下載
說明 Rapid Storage Technology Driver and utility ver:17.8.0.1065.2_PV 作業系統 Win 10 x 64 Date 2020-08-31 下載
說明 Realtek high definition audio driver ver:9057_FF00 作業系統 Win 10 x 64 Date 2020-08-31 下載
說明 Intel Lan driver ver:25.0_562413 作業系統 Win 10 x 64 Date 2020-07-06 下載
說明 SATA Floppy Image ver:17.8.0.1065.2_PV 作業系統 Win 10 x 64 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2020-05-18 下載
說明 Optane Driver ver:17.8.0.1065.2_PV 作業系統 Win 10 x 64 Date 2020-05-18 下載
說明 VGA Driver ver:26.20.100.7926_Q0 作業系統 Win 10 x 64 Date 2020-05-18 下載
說明 Intel Management Engine driver ver:14.0.30.1115_CORP_SW_DCH 作業系統 Win 10 x 64 Date 2020-05-18 下載
說明 INF driver ver:10.1.18263.8193_Public 作業系統 Win 10 x 64 Date 2020-05-18 下載
版本 更新方式 / 如何更新 說明 日期 下載
版本 1.40 更新方式 / 如何更新 BIOS 說明 Update audio codec 日期 2020-12-15 下載
版本 1.40 更新方式 / 如何更新 DOS 說明 Update audio codec 日期 2020-12-15 下載
版本 1.40 更新方式 / 如何更新 Windows 說明 Update audio codec 日期 2020-12-15 下載

檔案格式為 PDF,如果您沒有安裝 Adobe Acrobat Reader,請至 Adobe下載。

說明 語言 日期 下載
說明 Jumpers and headers setting guide 語言 English 日期 2020-06-23 下載
說明 Guide to Intel Rapid Storage 語言 English 日期 2020-06-23 下載
說明 RAID Installation Guide 語言 English 日期 2020-06-23 下載
說明 User Manual 語言 English 日期 2020-06-23 下載
說明 日期 下載
下載 CPU Support List 日期 2021-02-26 下載
