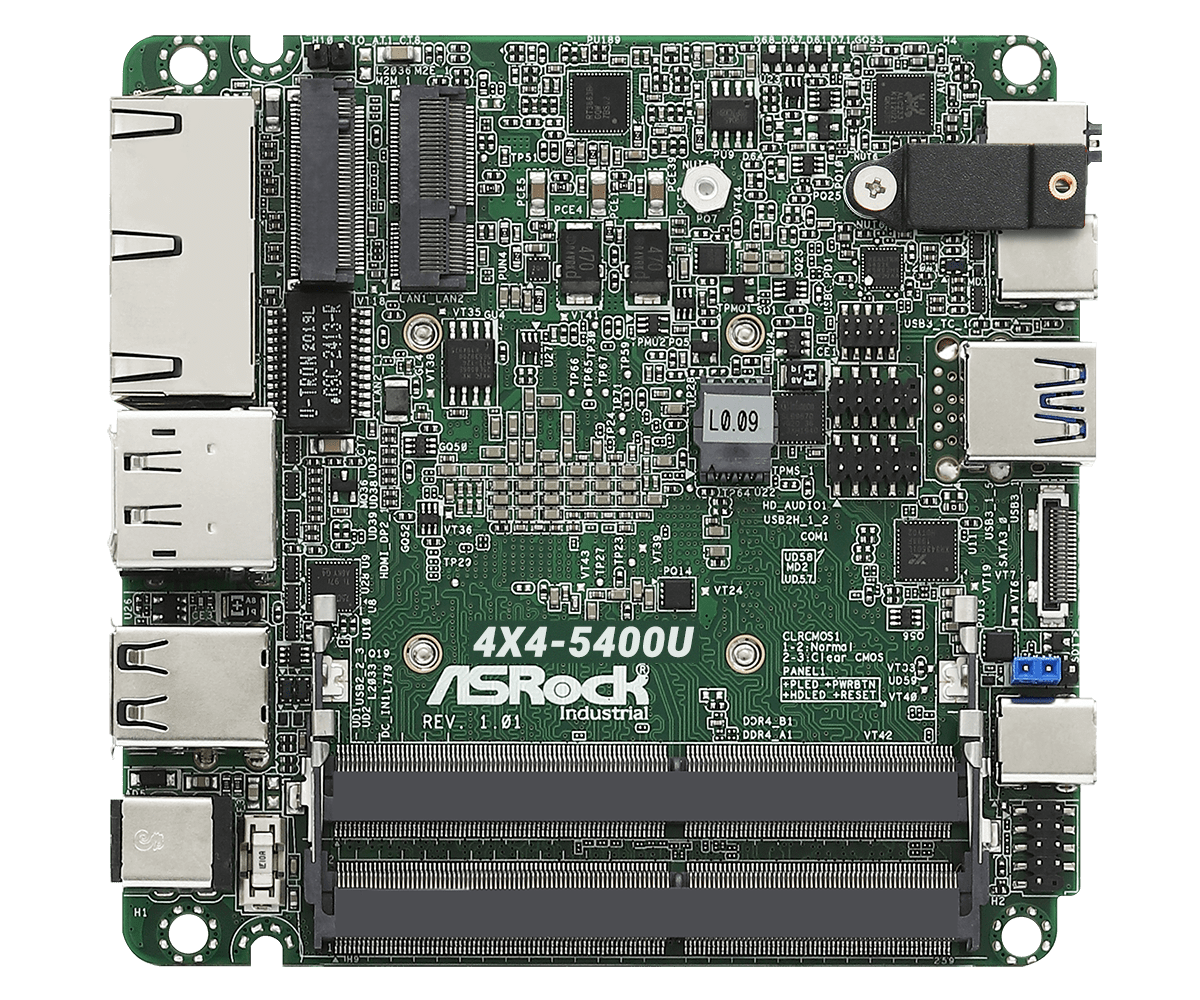

4X4-5400U 4X4 Motherboard
- AMD Ryzen™ 3 5400U
- 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
- 4 x USB 3.2 Gen2, 4 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
產品規格
Form Factor
| Dimensions | 4X4 (4.09-in x 4.02-in) |
|---|
Processor System
| CPU | AMD Ryzen™ 3 5400U (Max Speed up to 4.0GHz) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
Expansion Slot
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
|---|
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111FPV (DASH) with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
Front I/O
| USB | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Internal Connector
| USB | 2 x USB 2.0 (1 x 2.00mm pitch header) |
|---|---|
| COM | 1 x COM (RS-232/422/485) |
| TPM | TPM 2.0 onboard IC |
Storage
| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 12V~19V DC-In Jack |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Others
| Longivity Support | No |
|---|
規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
支援下載
作業系統:
| 說明 | 作業系統 | 日期 | 下載 | ||||
|---|---|---|---|---|---|---|---|
| 說明 | Realtek Lan driver ver:1.12.0038_WHQL_20200225 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Realtek high definition audio driver ver:9159_FF00 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Dual LAN Teaming Driver:2.0.7.1 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | COM Port driver ver:1.0.2011.1109 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | VGA driver ver:21.10.02.210413a | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Chipset Driver ver:2.15.07.2229 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 |
