4X4 BOX-5400U Fanned Embedded BOX PC

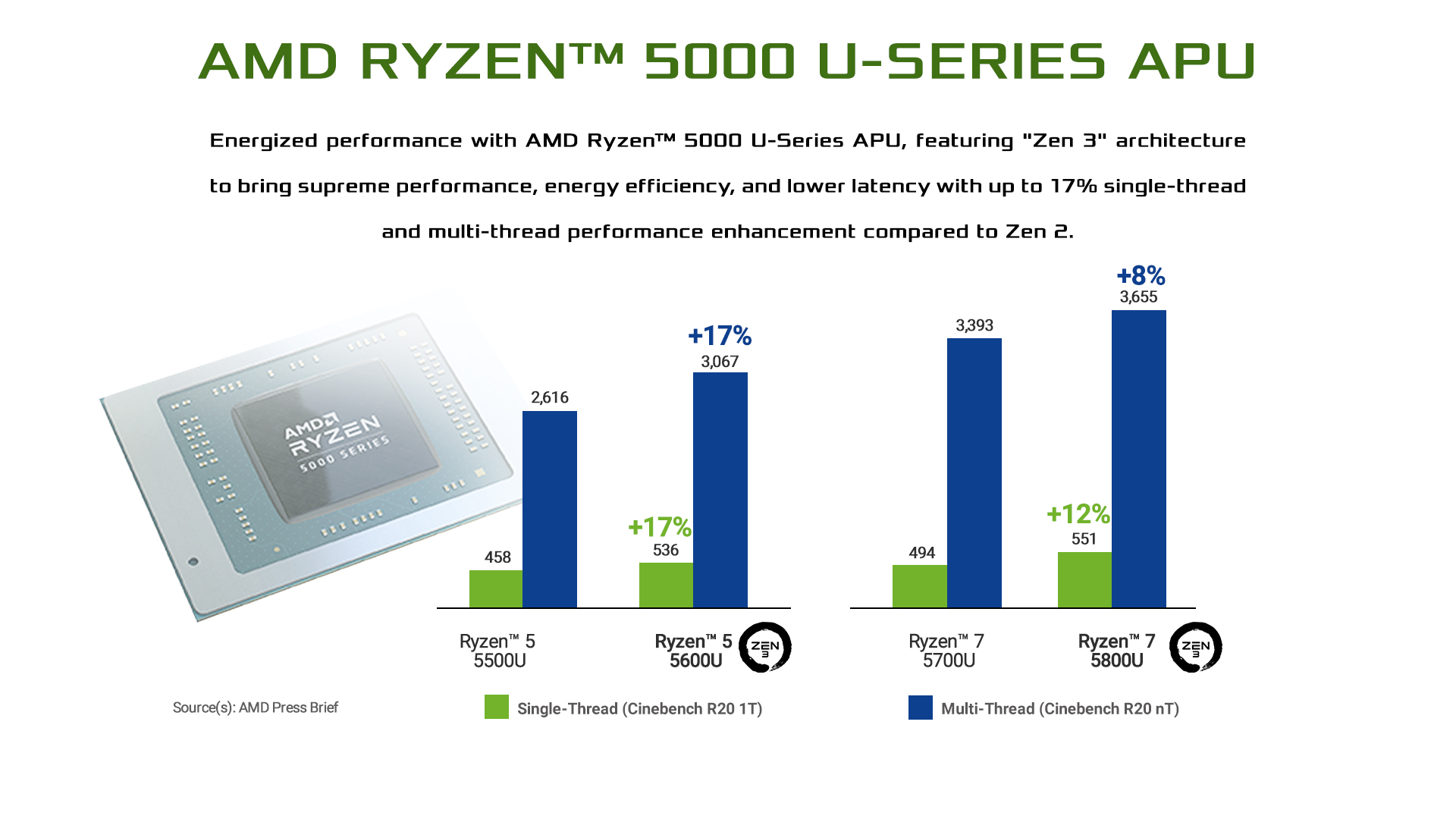

- AMD Ryzen™ 5000U-Series
- 2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E(WiFi-6E), 1 x SATA3

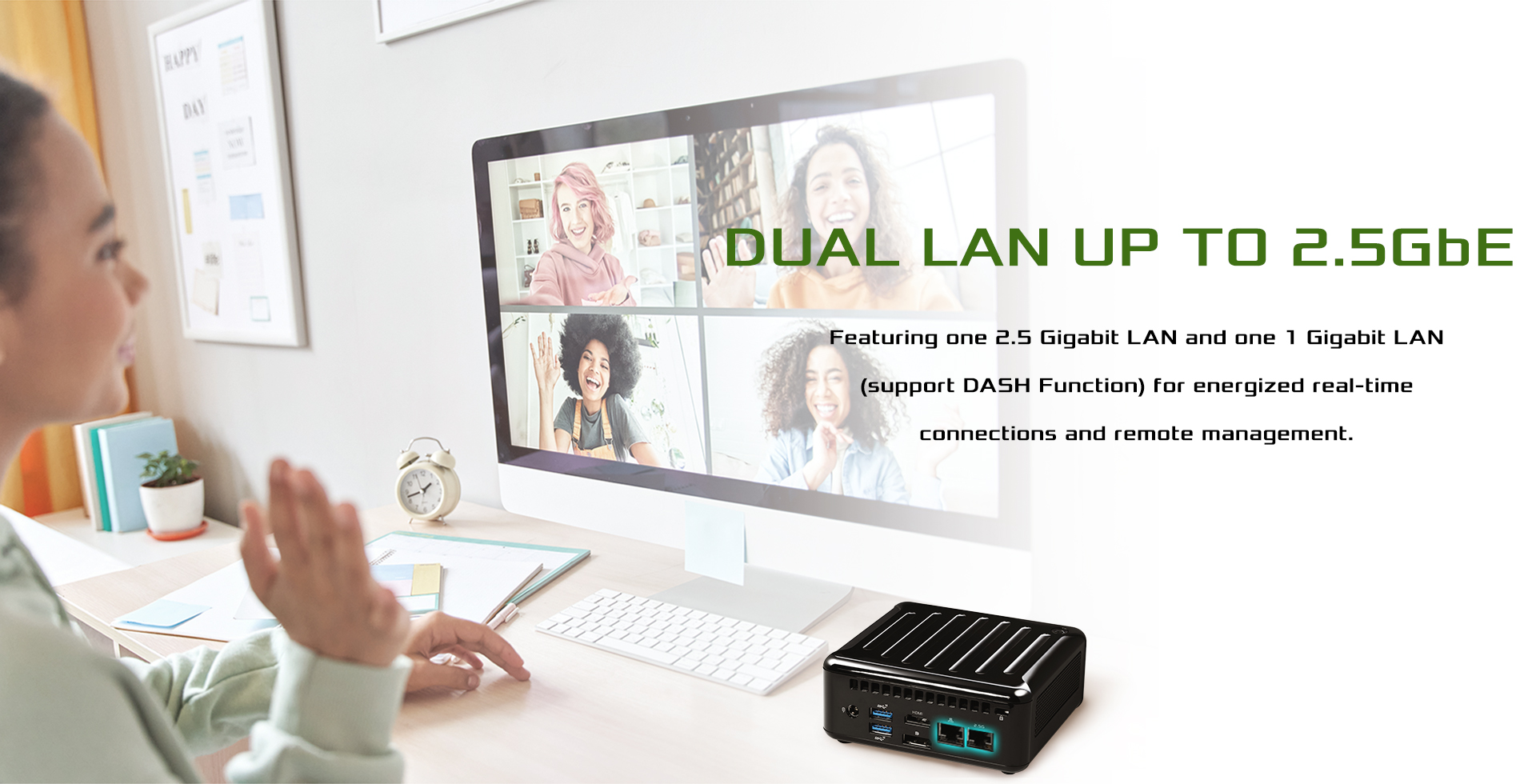

- 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter

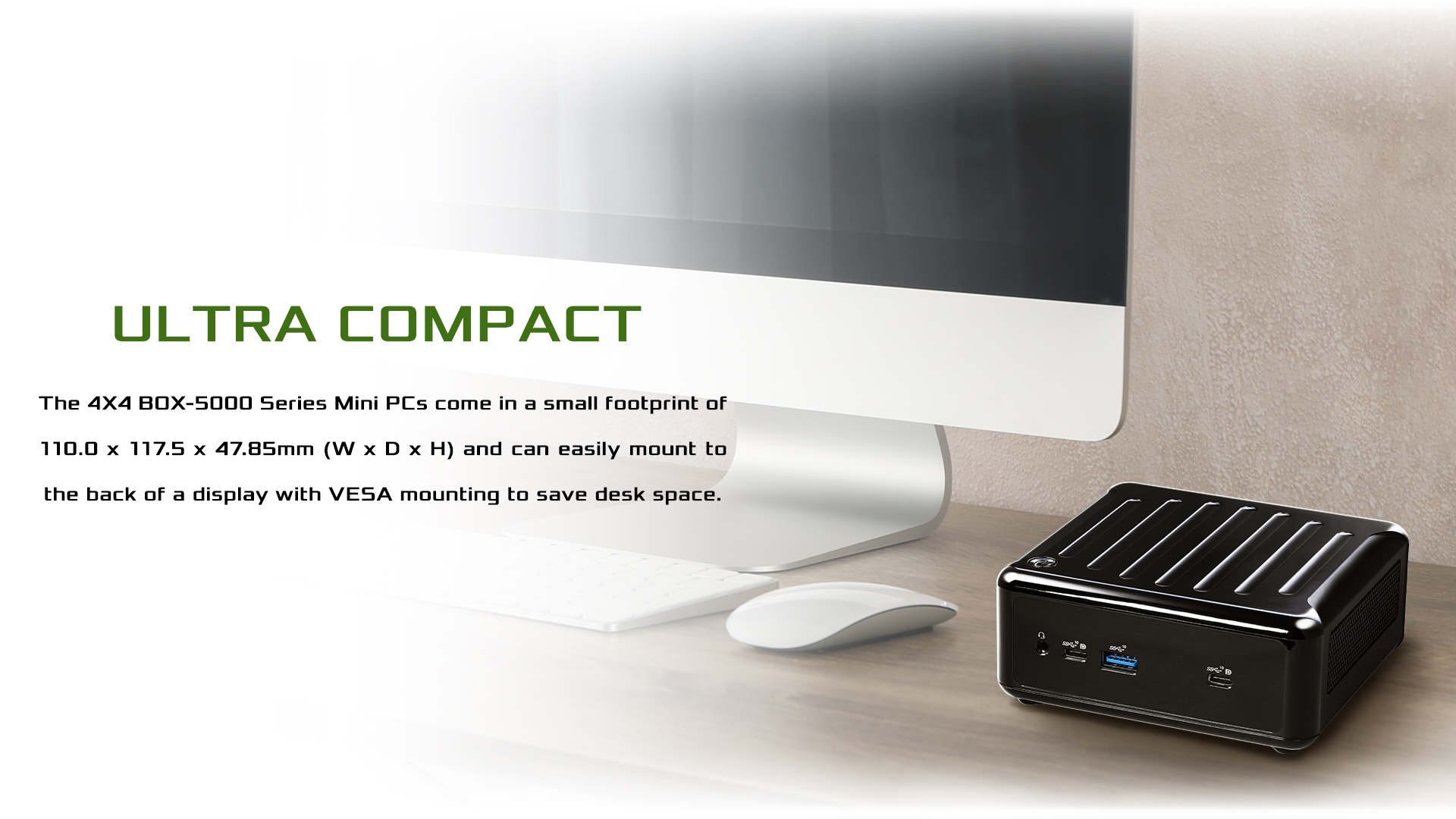

- 110.0 x 117.5 x 47.85mm, Fanned Barebone
產品特色
產品規格
Form Factor
| Dimensions | 110.0 x 117.5 x 47.85 mm |
|---|
Processor System
| CPU | AMD Ryzen™ 3 5400U, 4Cores, Max Speed up to 4.0GHz) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 64 GB (32 GB per DIMM) |
| Socket | 2 x 260-pin SO-DIMM |
Graphics
| Controller | AMD Radeon™ Graphics |
|---|---|
| HDMI | HDMI 2.0a Max resolution up to 4096x2160@60Hz |
| DisplayPort | DisplayPort 1.2a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
Expansion Slot
| M.2/WLAN | 1 x Wi-Fi 6E 802.11ax + BT 5.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless) * WiFi throughput speed depends on actual environment and equipment |
|---|---|
| Bluetooth | 5.2 |
Audio
| Interface | Realtek ALC233, High Definition Audio. |
|---|
Ethernet
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek R8111FPV with 10/100/1000 Mbps,support DASH function |
|---|---|
| Connector | 2 x RJ-45 |

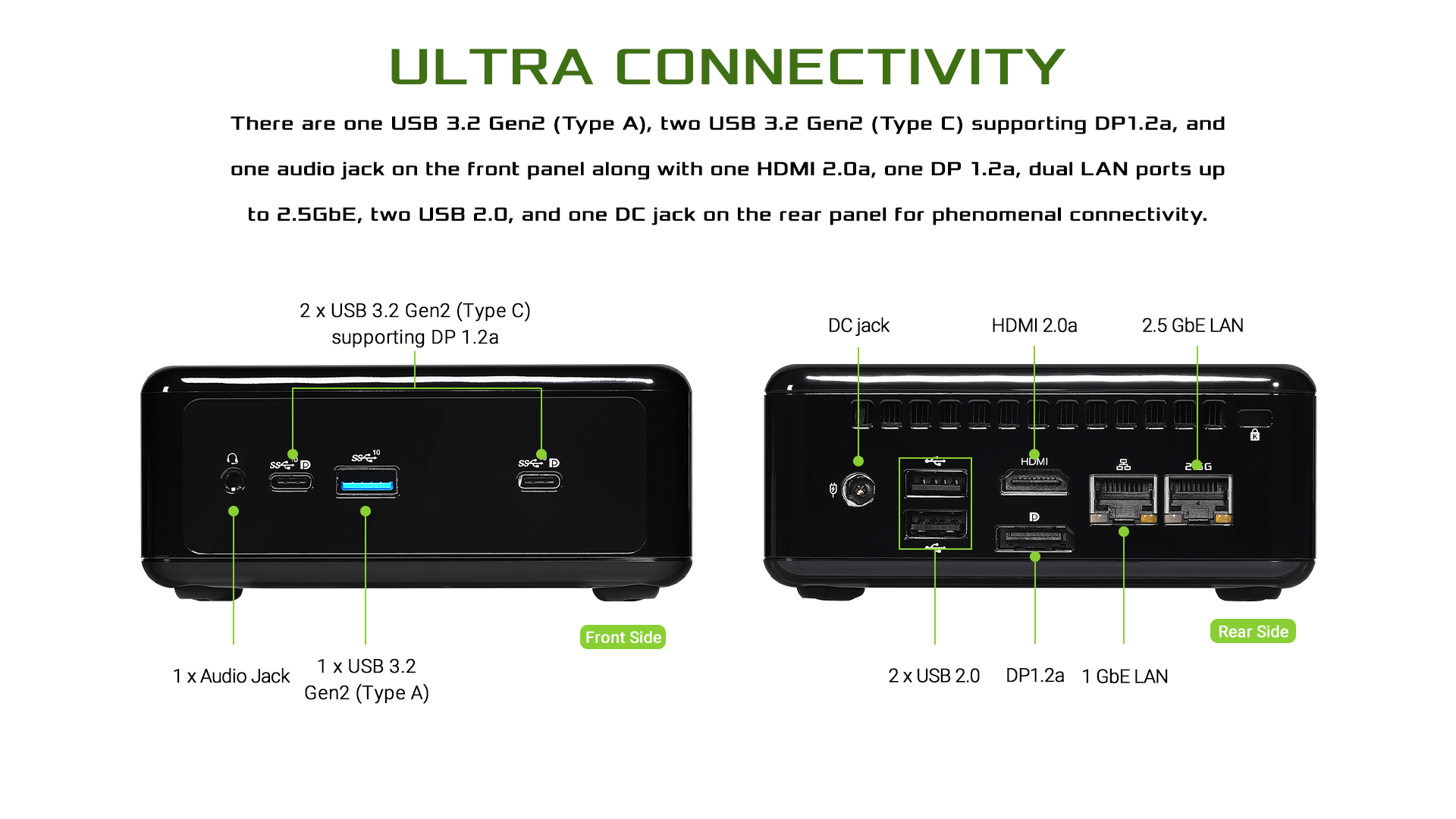

Front I/O
| USB | 1 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C, Supports DP 1.2a display output) |
|---|---|
| Audio | 1 (headphone & microphone jack) |
Rear I/O
| HDMI | 1 x HDMI 2.0a |
|---|---|
| DisplayPort | 1 x DP 1.2a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
Storage

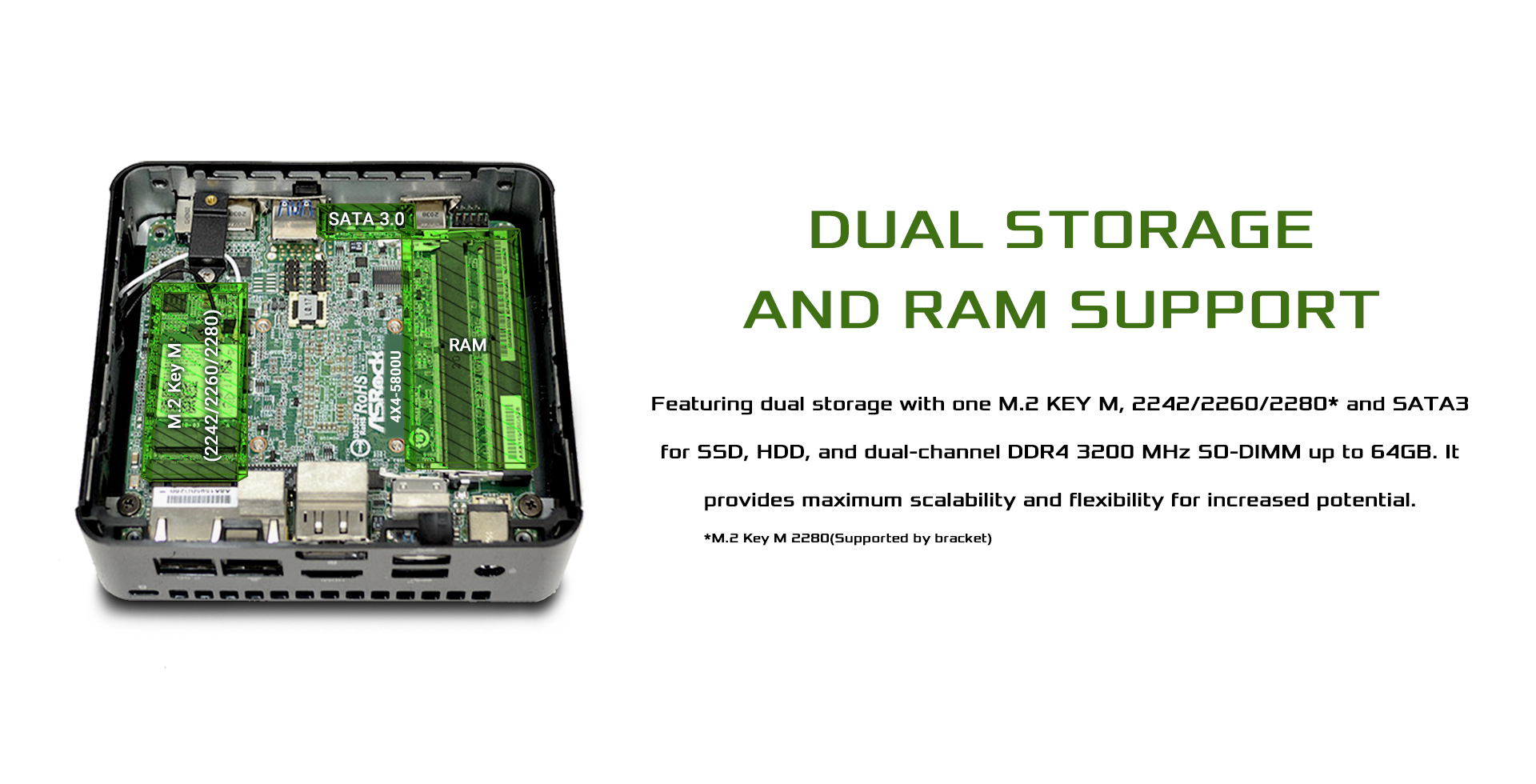

| M.2 | 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket) |
|---|---|
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments 0,1,2....255sec |
Power Requirements
| Input PWR | 1 x 19V/90W Power Adapter |
|---|---|
| Power On | AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
Environment
| Operating Temp | 0ºC ~ 40ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Mechanical
| Construction | Plastic |
|---|---|
| Mounting | VESA mounting |
| Dimensions (W x H x D) | 110.0 x 117.5 x 47.85 mm |
| Weight | Net Weight: 1kg |
Others
| OS Support | Windows 10/11 |
|---|---|
| Certifications | CE, FCC Class A |
| Packing List | 1 x 19V/90W Power Adapter 1 x Screw Package 1 x VESA mounting bracket 1 x Bracket for M.2 2280 support |
| TPM | TPM 2.0 onboard IC |
規格更改時恕不預先通知。品牌和產品名稱歸各自公司所有。不保證任何配置與產品實物規格相同。
支援下載
作業系統:
| 說明 | 作業系統 | 日期 | 下載 | ||||
|---|---|---|---|---|---|---|---|
| 說明 | AMD RZ608 Wireless LAN driver ver: 3.3.0.322 | 作業系統 | Win 11 x 64 | Date | 2022-03-08 | 下載 | |
| 說明 | Realtek Lan driver ver:1.12.0038_WHQL_20200225 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Realtek high definition audio driver ver:9159_FF00 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Dual LAN Teaming Driver:2.0.7.1 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | COM Port driver ver:1.0.2011.1109 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | VGA driver ver:21.10.02.210413a | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 | |
| 說明 | Chipset Driver ver:2.15.07.2229 | 作業系統 | Win 11 x 64 , Win 10 x 64 | Date | 2022-01-25 | 下載 |
