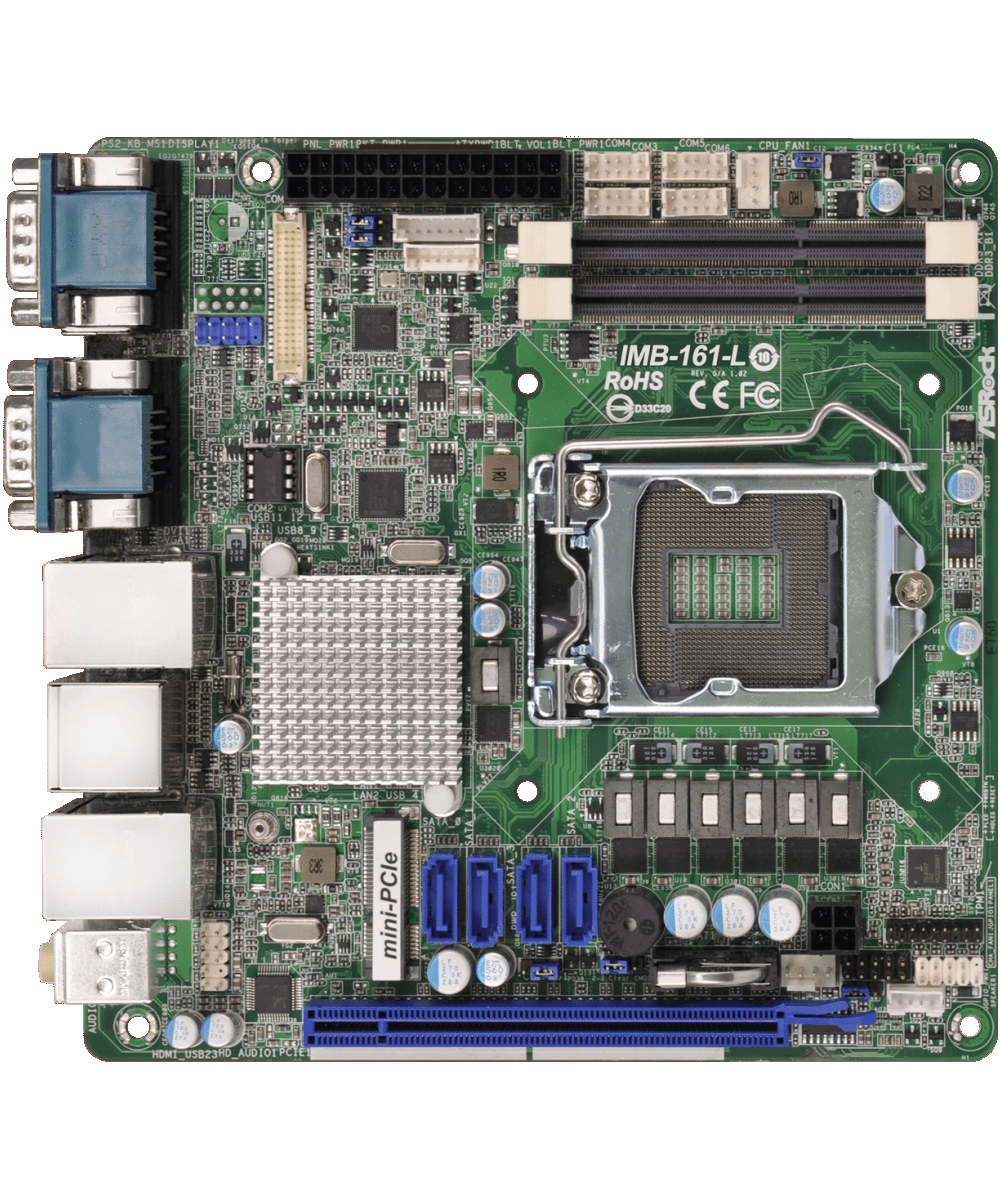

IMB-161-L Mini-ITX Motherboard

Processor System

Chipset	H61
BIOS	UEFI
CPU	Socket LGA1155 for Intel® Core i7 / i5 / i3 / Celeron® (Sandy Bridge and Ivy Bridge)

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Capacity	16GB
Socket	2 x SO-DIMM
Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM

Graphics

MultiDisplay	Dual Display
LVDS	Dual Channel 24-bit, support max resolution 1920x1200
HDMI	Supports HDMI, max resolution up to 1920x1200
Controller	Intel® HD Graphics (By CPU)
VGA	Supports max resolution up to 2048x1536

Expansion Slot

PCIe	1 (x16) (IVY Bridge: Gen3; Sandy Bridge: Gen2)
mini-PCIe	1 (Half Size)

Ethernet

Connector	1 x RJ - 45
Controller/ Speed	LAN1:Intel® 82583V with 10/100/1000 Mbps, LAN2:Intel® 82579V with 10/100/1000 Mbps

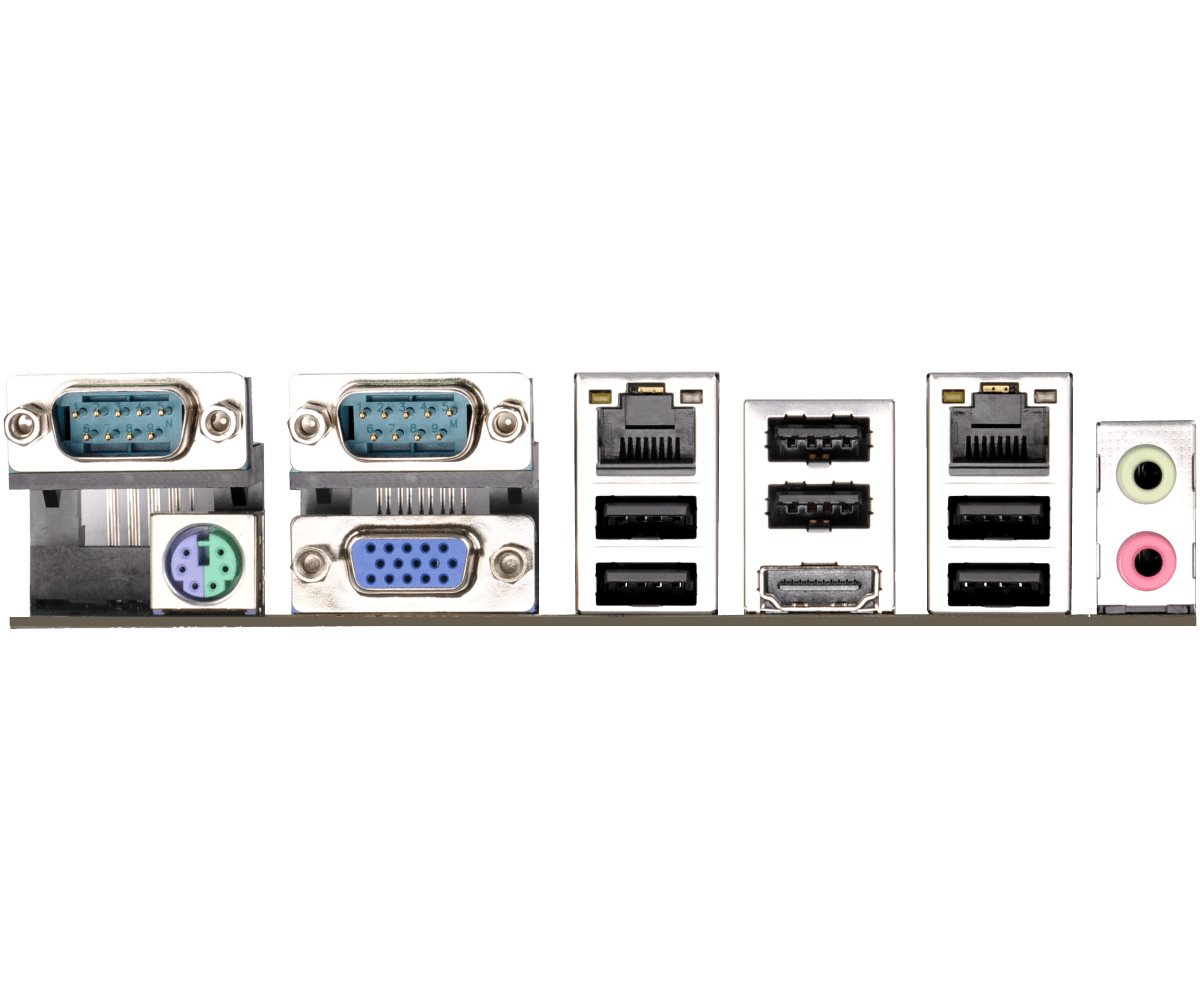

Rear I/O

PS2	1 (Combo)
VGA	1
COM	2 x COM(RS-232/422/485)
Audio	2 (Mic-in, Line-out)
HDMI	1
USB	6 x USB 2.0
Ethernet	2

Internal Connector

Speaker Header	1
LVDS	1
GPIO	4 x GPI +4 x GPO
COM	4 x COM(RS-232)
USB	2 x USB 2.0

Storage

SATA	4 x SATA2 (3.0Gb/s)

Watchdog Timer

Interval	256 Segments, 0, 1, 2, ...255sec
Output	From Super I/O to drag RESETCON#

Power Requirements

Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready
Input PWR	ATX PWR (24+4 pin)

Environment

Storage Humidity	5% ~ 90%
Operating Humidity	5% ~ 90%
Storage Temp	-40° C ~ 85° C
Operating Temp	0ºC ~ 60ºC

Others

Packing List	1 x Jumper setting guide 1 x Driver DVD 1 x IO shield 2 x COM cable 2 x SATA cable 2 x Screw for mini card

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
