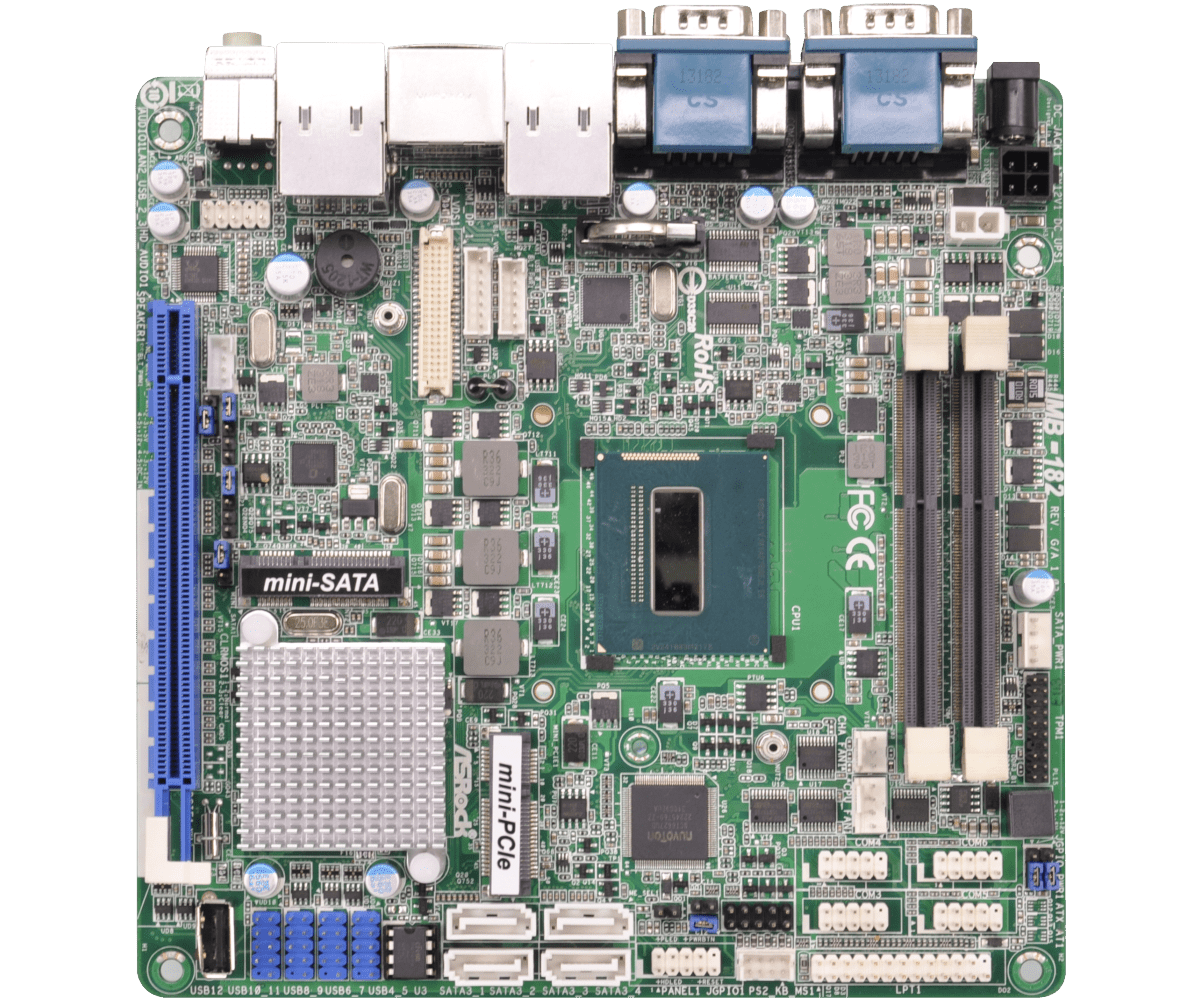

IMB-182 Mini-ITX Motherboard

Processor System

CPU	BGA type for Intel Core i7 / i5 / i3 / mobile processor (Haswell)
Chipset	Intel® QM87
BIOS	UEFI

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Memory

Technology	Dual Channel DDR3 1066 / 1333 / 1600 MHz SDRAM
Capacity	16GB
Socket	2 x SO-DIMM

Graphics

Controller	Intel HD Graphics (By CPU)
HDMI	Supports HDMI 1.4a, max resolution 1920 x 1200
VGA	Supports max resolution 2048 x 1536
LVDS	1
MultiDisplay	Triple Display
DisplayPort	Supports max resolution 2560 x 1600

Expansion Slot

PCIe	1 (x16) with Riser card extend to x8 + x8 or x8 + x4 + x4
mini-PCIe	1 x Full size with PCIe x1 and USB 2.0

Ethernet

Controller/ Speed	LAN1: Intel® I217LM with 10/100/1000 Mbps (with v-Pro support) LAN2: Intel® I210 with 10/100/1000Mbps
Connector	2 x RJ-45

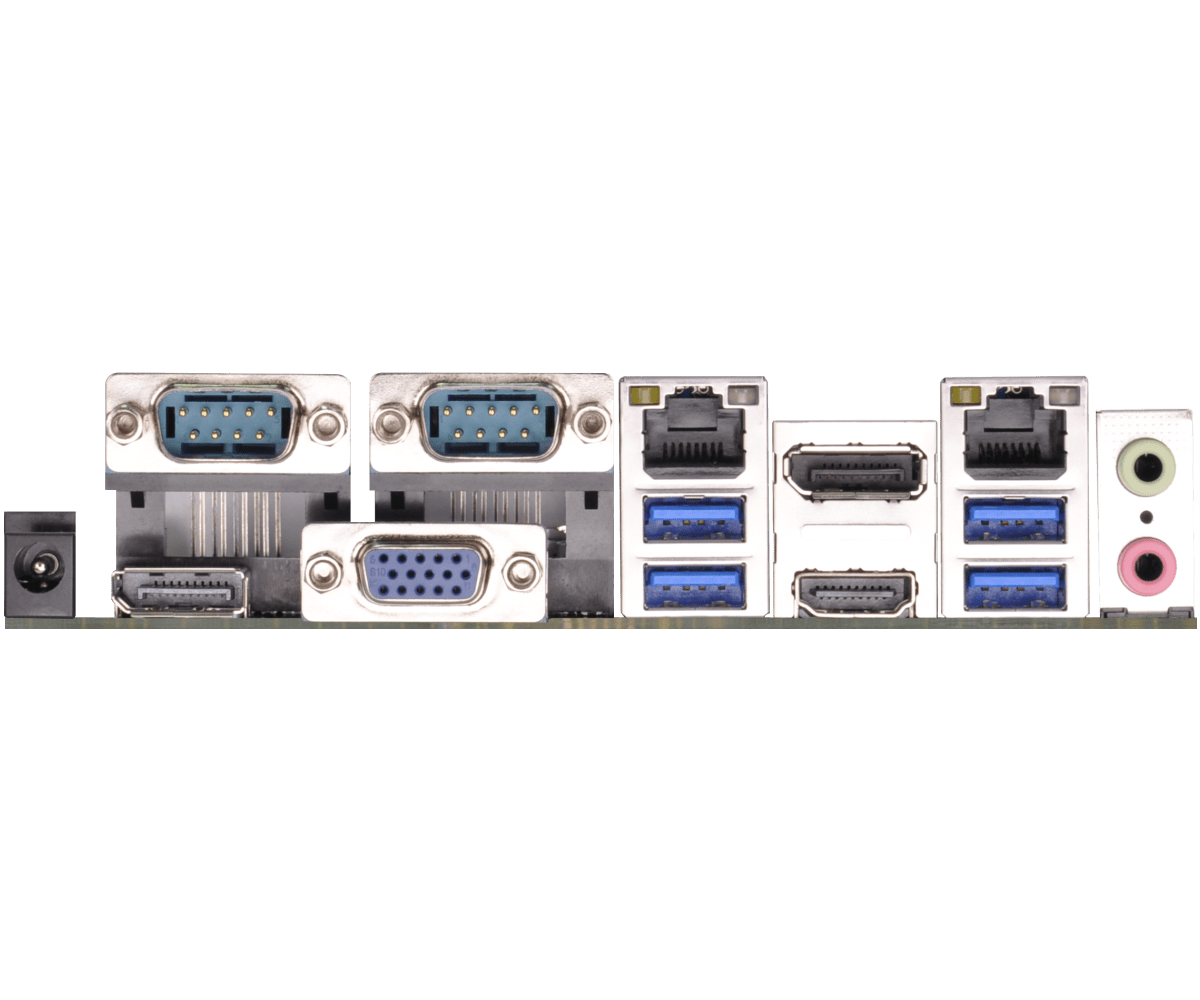

Rear I/O

HDMI	1
Ethernet	2
USB	4 x USB 3.0 compliant
Audio	2 (Mic-in, Line-out)
COM	2 x COM (RS-232/422/485)
DisplayPort	2
VGA	1
DC Jack	1

Internal Connector

USB	8 (4 x USB Header 2.54mm pitch) 1 Vertical Type A USB Connector
COM	4 x COM (RS-232)
GPIO	4 x GPI, 4 x GPO
LVDS	24 bit dual channel LVDS
SATA PWR Output	1
Parallel	1

Storage

SATA	4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10
mSATA	1 x Full size with SATA3

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	DC-in 12V~19V
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020196000AK) 2 x SATA Data Cable (14G000107101AK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020196000AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
