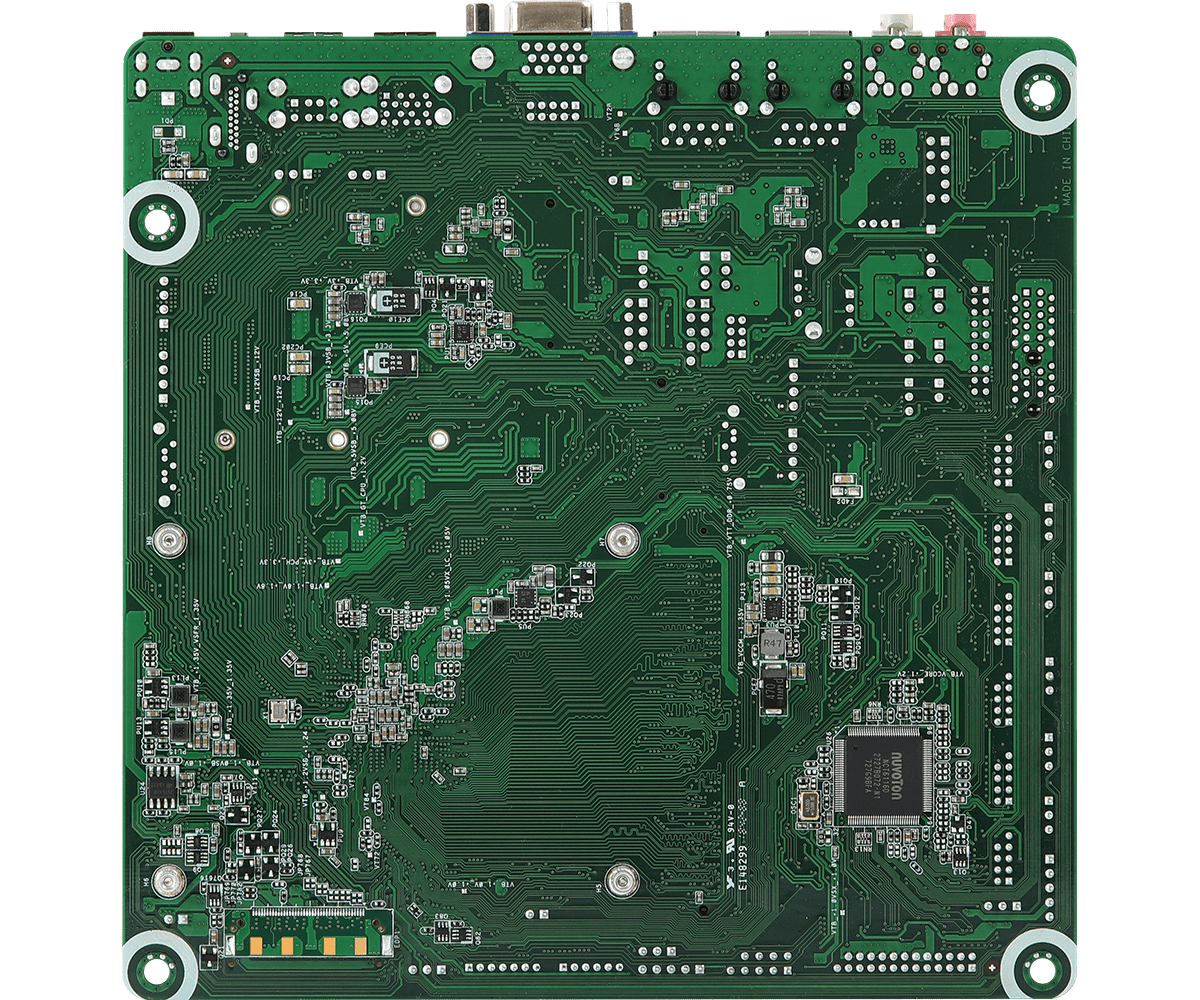

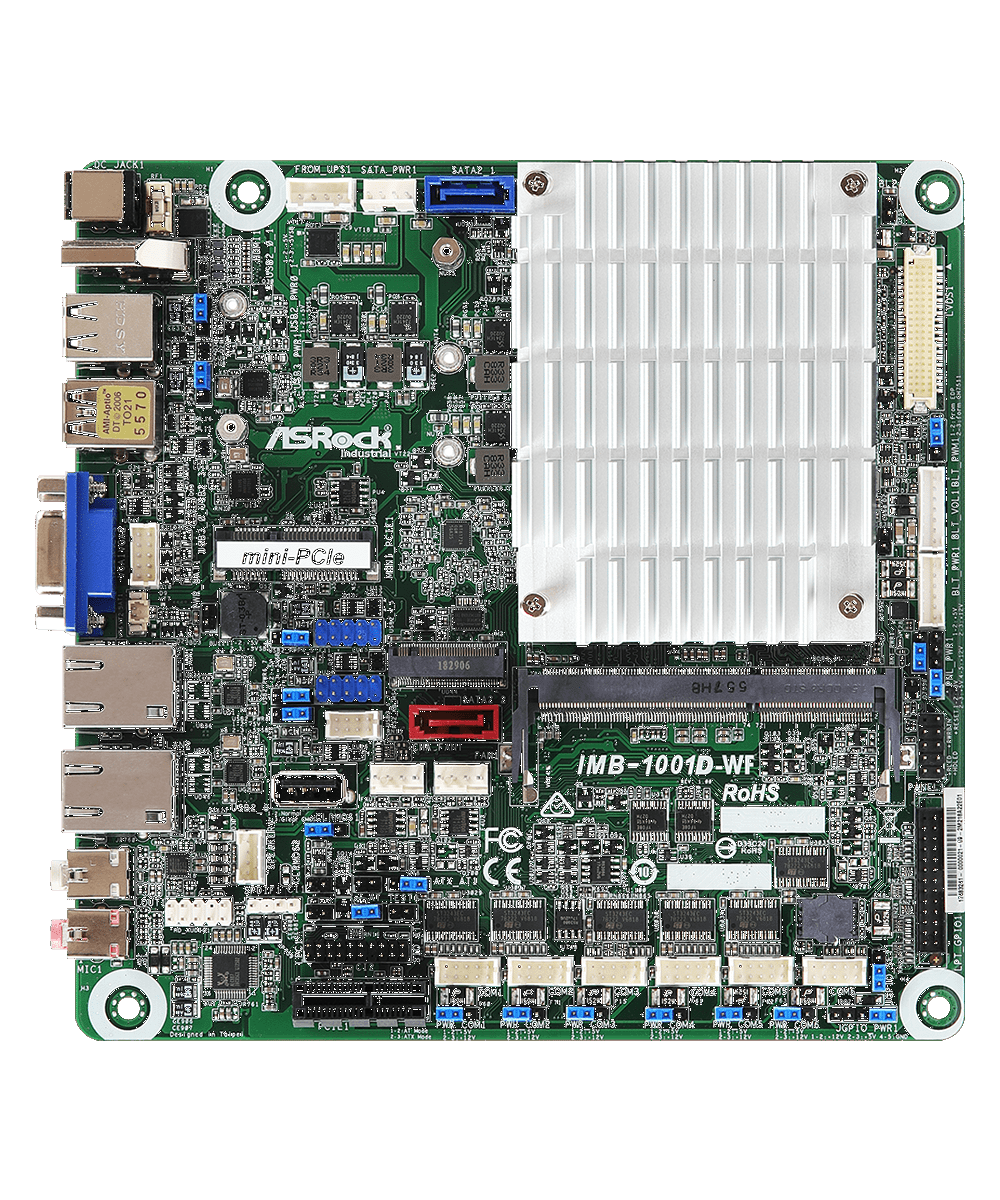

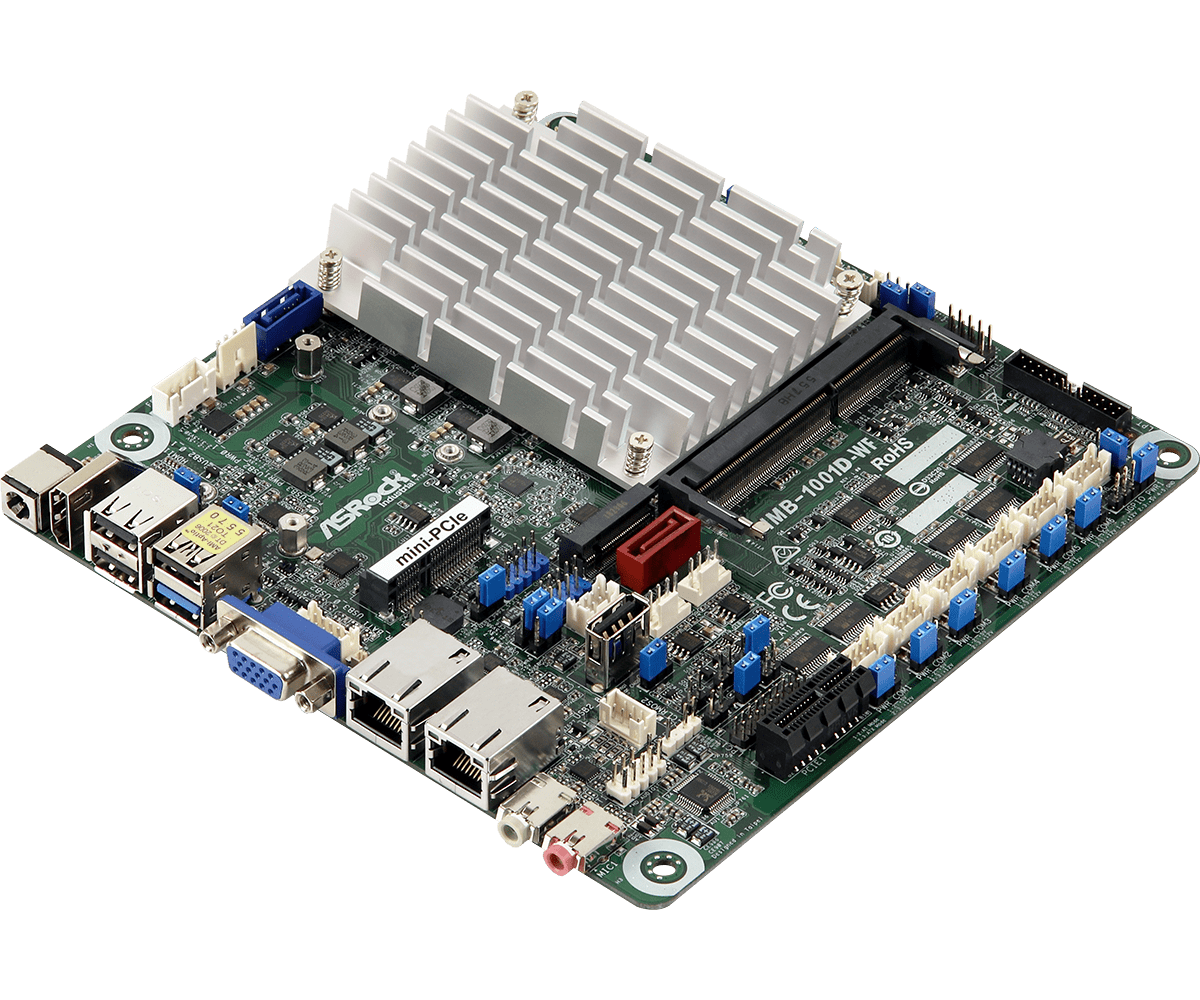

IMB-1001D-WF Mini-ITX Motherboard

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU	Intel® Baytrail SoC Processor J1900 J1900, QC, 2.00GHz, 10W
Chipset	SoC
BIOS	AMI SPI 64 Mbit

Memory

Technology	Single Channel DDR3L 1333 MHz
Capacity	8GB
Socket	1 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen7 Graphics DX 11
HDMI	HDMI 1.4a Max resolution up to 4096x2160@24Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz
MultiDisplay	Dual Display

Expansion Slot

PCIe	1 x PCIe x1 (Gen2)
mini-PCIe	1 x Full/Half size with PCIe x1 and USB 2.0

Audio

Interface	Realtek ALC887, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

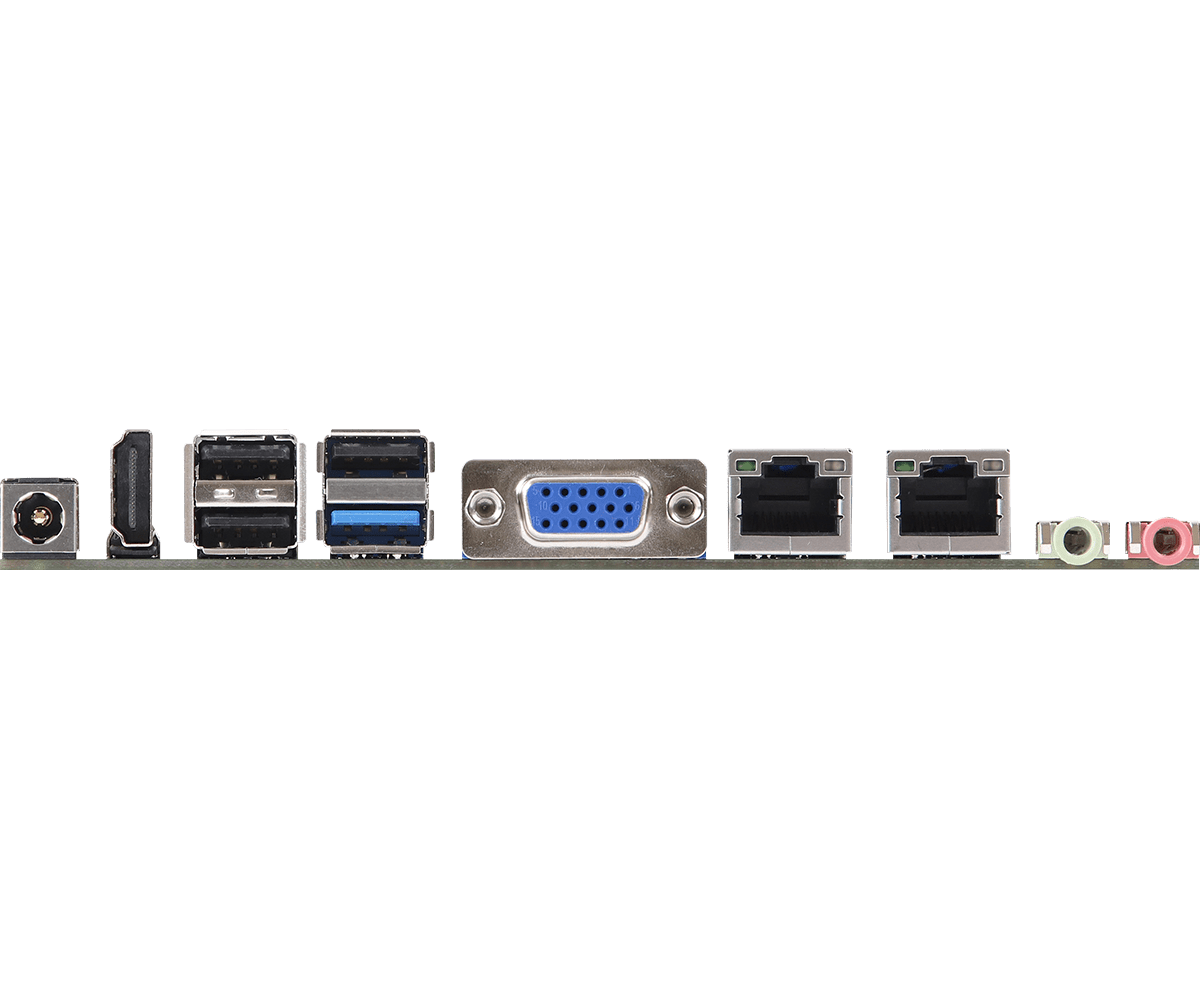

Rear I/O

HDMI	1 x HDMI 1.4a
VGA	1 (shared with internal VGA)
Ethernet	2 x 1 Gigabit LAN
USB	1 x USB 3.0, 3 x USB 2.0
Audio	2 (Mic-in, Line-out)
DC Jack	1

Internal Connector

USB	5 x USB 2.0 (2 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con)
COM	COM1, 2, 4, 5, 6(RS-232), COM3 (RS-232/422/485)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM Header
LVDS	1
VGA	1 x Header (shared with VGA port)
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1x M.2 (Key M, 2242/2260/2280) with shared SATA2 for SSD
SATA	2 x SATA2 (3Gb/s), SATA2_2 shared with M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V DC-In (DC Jack)
Power On	AT/ATX Supported - AT : Directly PWR on as po wer input ready - ATX : Press button to PWR on after po wer input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x I/O Shield THIN (13G020563010AK) 2 x SCREW M2*2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK)
Bulk Package	1 x I/O Shield THIN (13G020563010AK) 2 x SCREW M2*2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK)

上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
