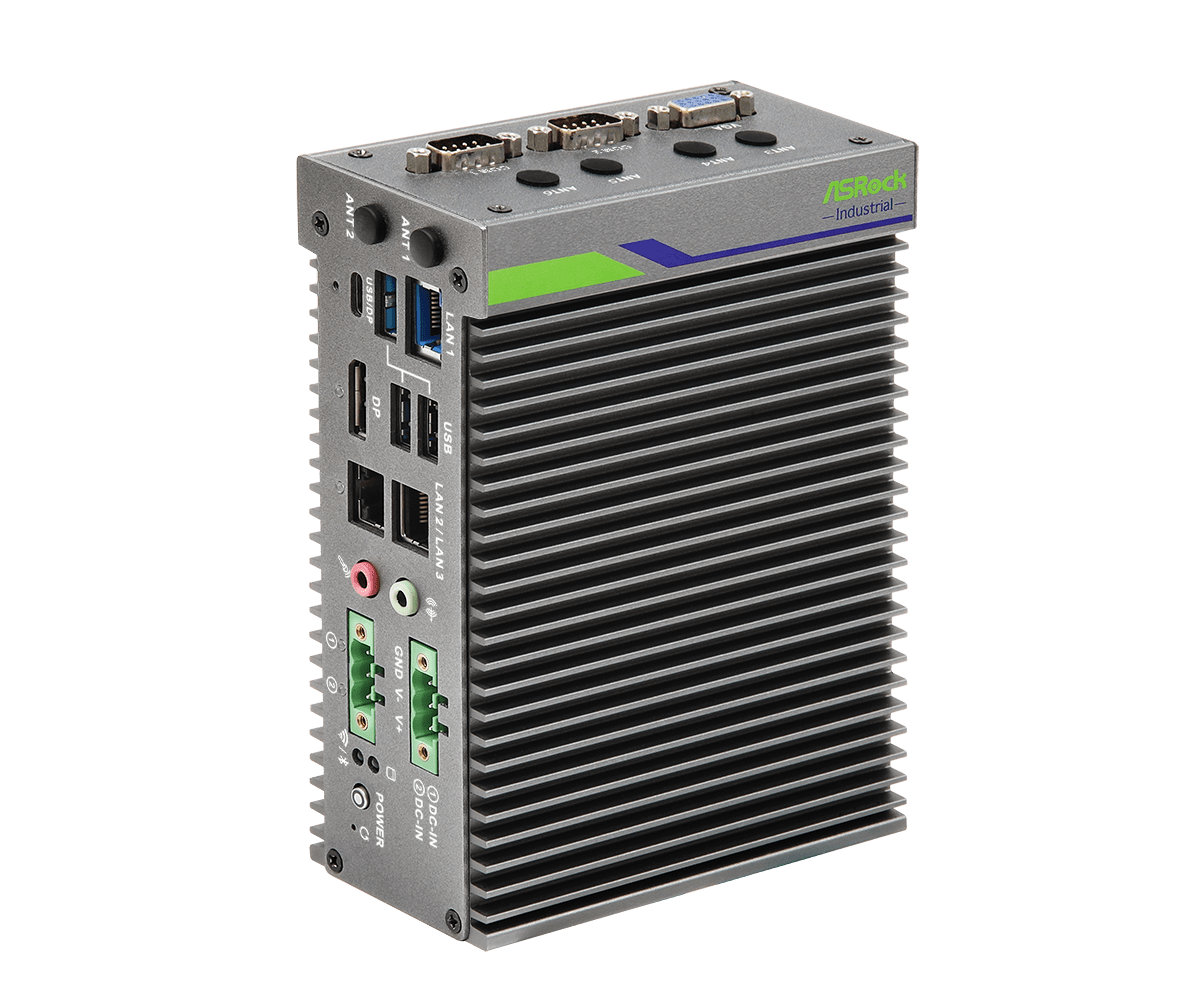

iEP-5020G Series Industrial IoT Controller
- Latest and Powerful Intel® Atom® x7433RE Processor (Amston Lake)
- Fan-less and Rugged Design
- -40°C to 70°C Wide Operating Temp. for Basic SKU

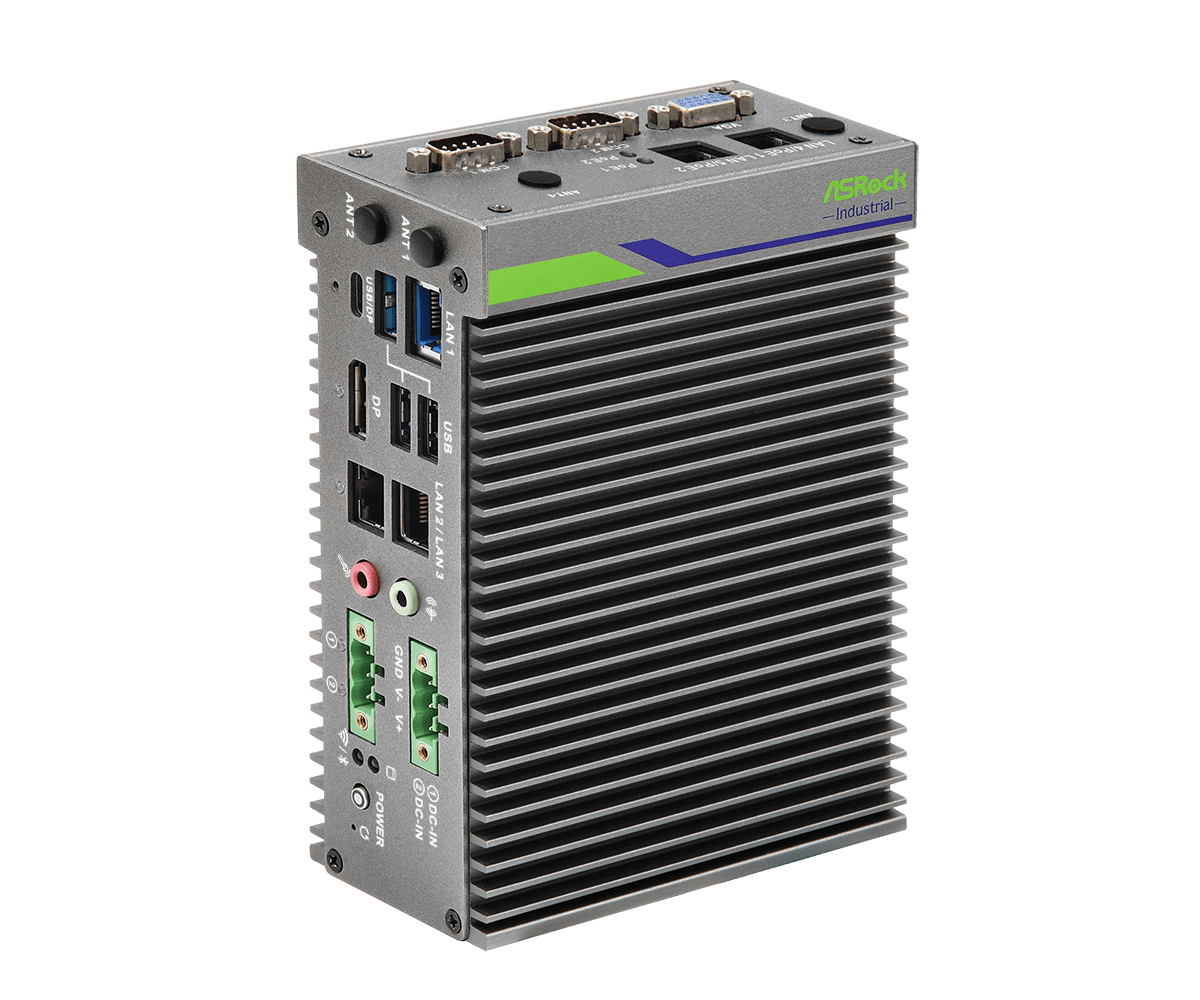

- -40°C to 50°C Wide Operating Temp. for PoE SKU
- 6-36VDC Wide Range Power Inputs for Basic SKU
- 19-36VDC Wide Range Power Inputs for PoE SKU
- Most Flexible IOs and Expansion for Industrial Applications
- Intel® TCC and TSN Support for Real-Time Computing
- DIN Rail or Wall Mount Options
- 4 x Intel 1G LAN (2 Support IEEE 802.3AF PoE Ports)
- 1 x Intel 2.5G LAN
- Support Intel® IN-Band ECC
Specification
Processor System
| CPU | Intel Atom® x7433RE, 4C, 1.5GHz, 9W |
|---|---|
| Chipset | MCP |
| BIOS | AMI SPI 256 Mbit |
Memory
| Technology | Single Channel DDR5 4800 MHz |
|---|---|
| Capacity | 16GB |
| Socket | 1 x 262-pin SO-DIMM |
Graphics
| Controller | Intel® UHD Graphicse |
|---|---|
| DisplayPort | DP 1.4a |
| VGA | Max resolution up to 1920x1200@60Hz |
Expansion Slot
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIe Gen3x1 and USB 3.2 Gen1x1 for 4G LTE/5G 1 x M.2 (Key E, 2230/2260) with PCIe Gen3x1 and USB 2.0 for Wireless/BT |
|---|---|
| RF& Antenna | 6 x SMA connector hole reserved, support for Basic SKU 4 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU |
Audio
| Interface | Realtek ALC897, High Definiton Audio |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I226IT with 10/100/1000/2500 Mbps, supports TSN/TCC LAN2/LAN3: Intel® I210IT with 10/100/1000 Mbps LAN4/LAN5: Intel® I210AT with 10/100/1000 Mbps (For 5LAN SKU) PoE1/PoE2: Intel® I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU) |
|---|---|
| Connector | RJ-45 |

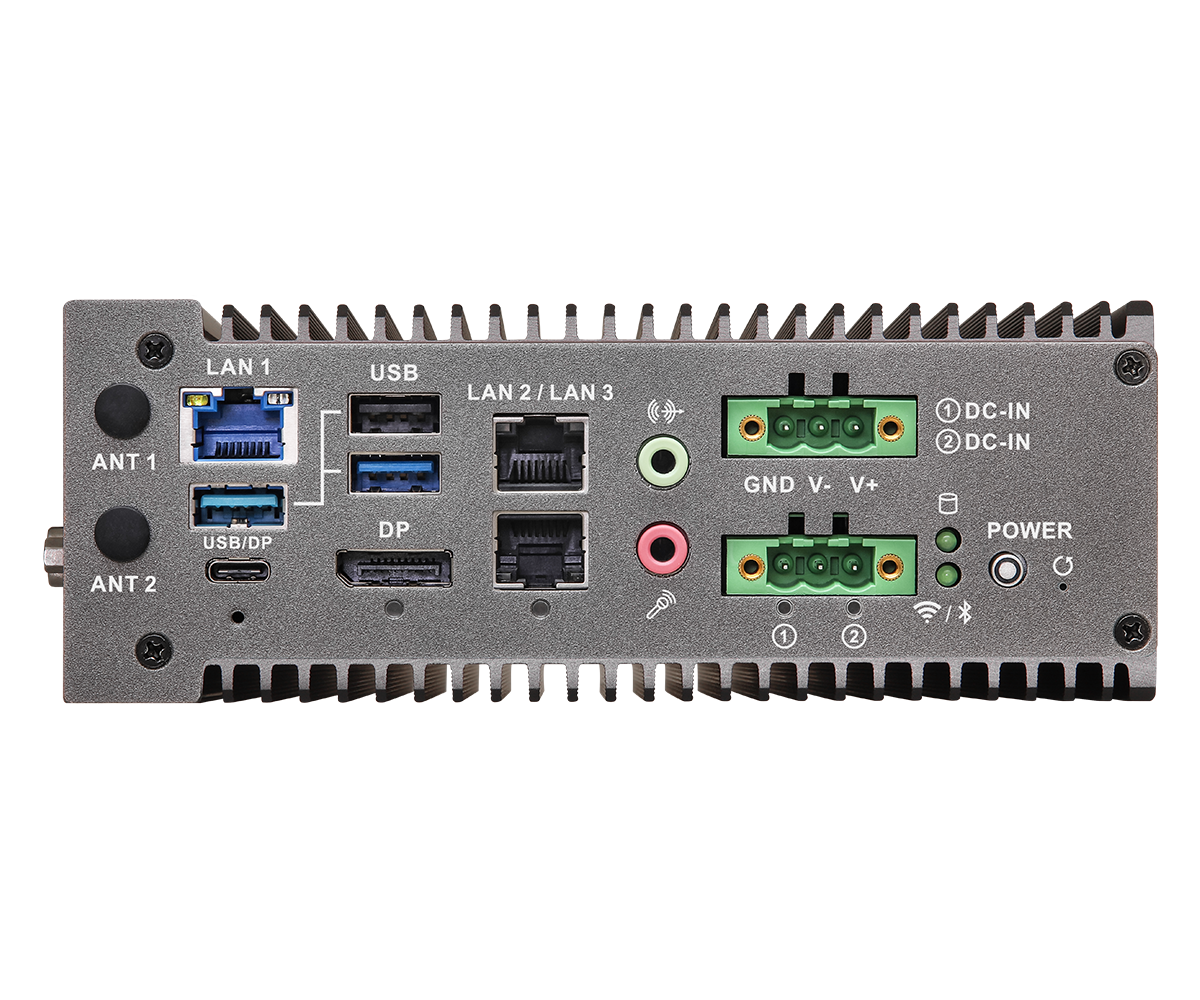

Front I/O
| Audio | 1 x Mic-in 1 x Line-out |
|---|---|
| Ethernet | 1 x 2.5G LAN 2 x 1G LAN |
| DisplayPort | 1 x DP 1.4a |
| USB | 2 x USB 3.2 Gen2 1 x USB 2.0 1 x Type-C USB3.2 Gen2 |
| LED | 1 x SATA / NVMe Storage LED 1 x Wi-Fi / BT LED |
| DC-IN | 2 x 3-pin Phoenix type |
| Reset Button | 1 |
| Power Button | 1 (with LED) |
Rear I/O
| SIM Card | 1 x Nano SIM Card slot |
|---|---|
| Micro SD Card | 1 x Micro SD card slot (SD Card specification version 3.01) |

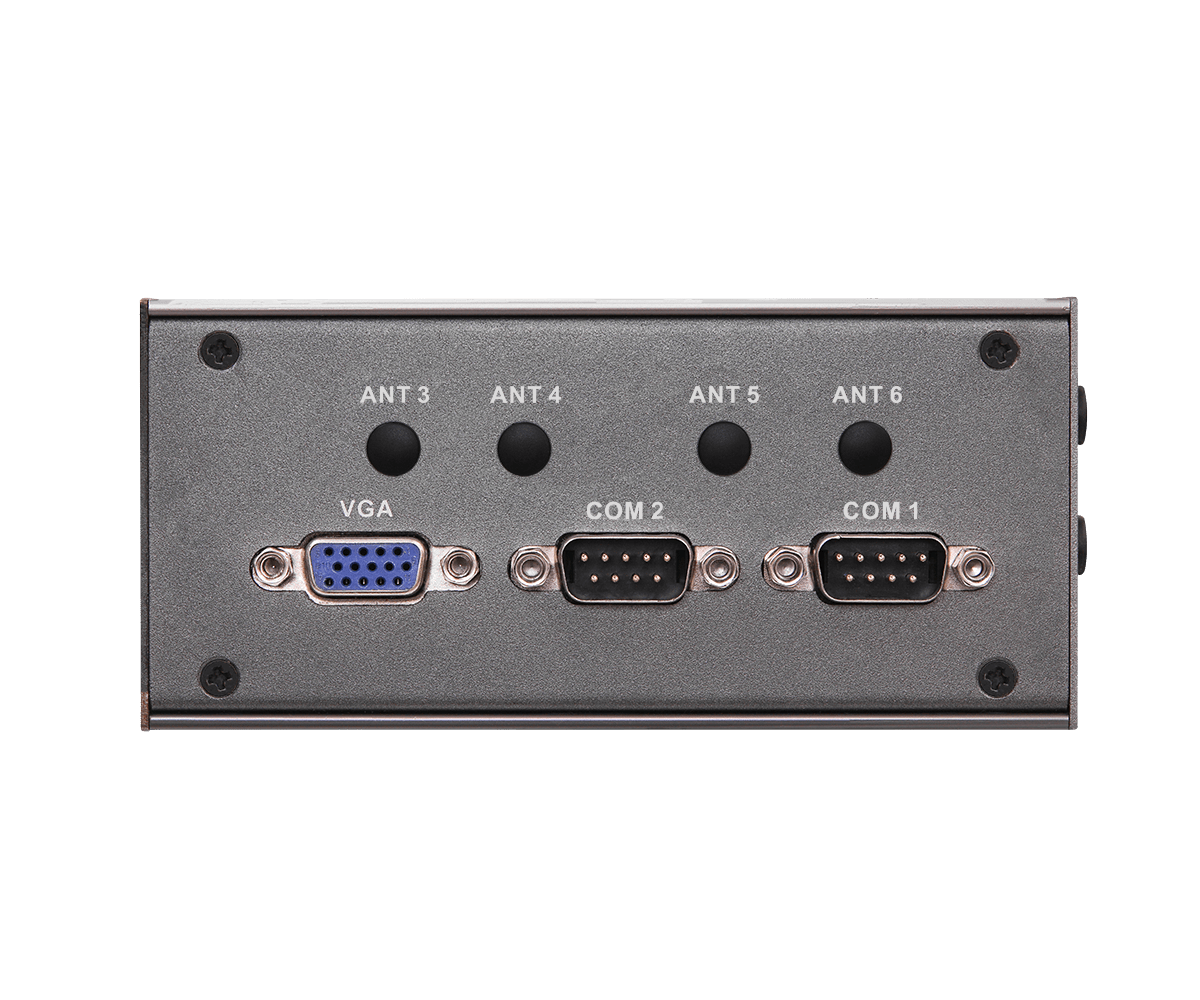

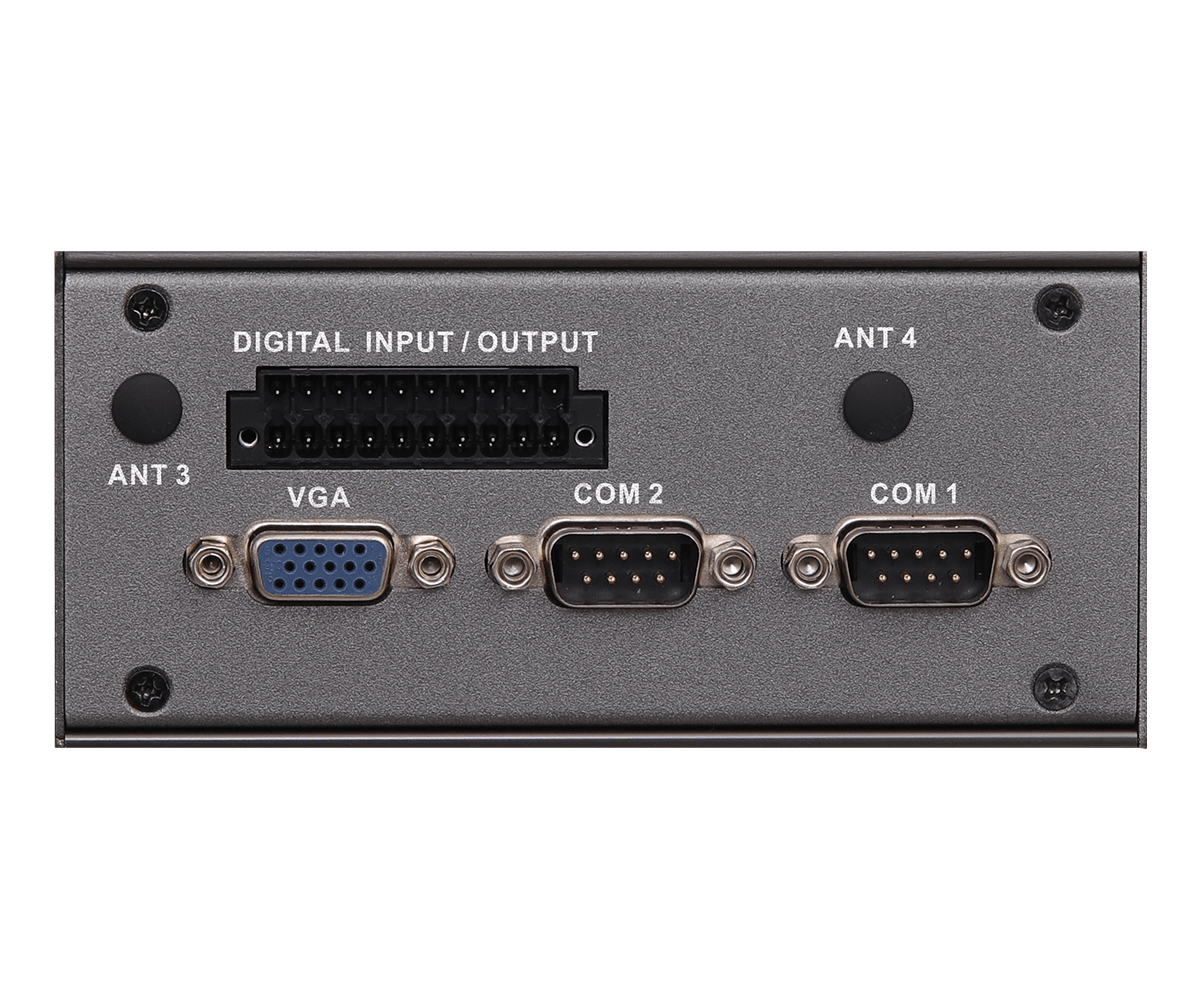

Top I/O
| COM | 2 x RS-232/422/485 |
|---|---|
| VGA | 1 |

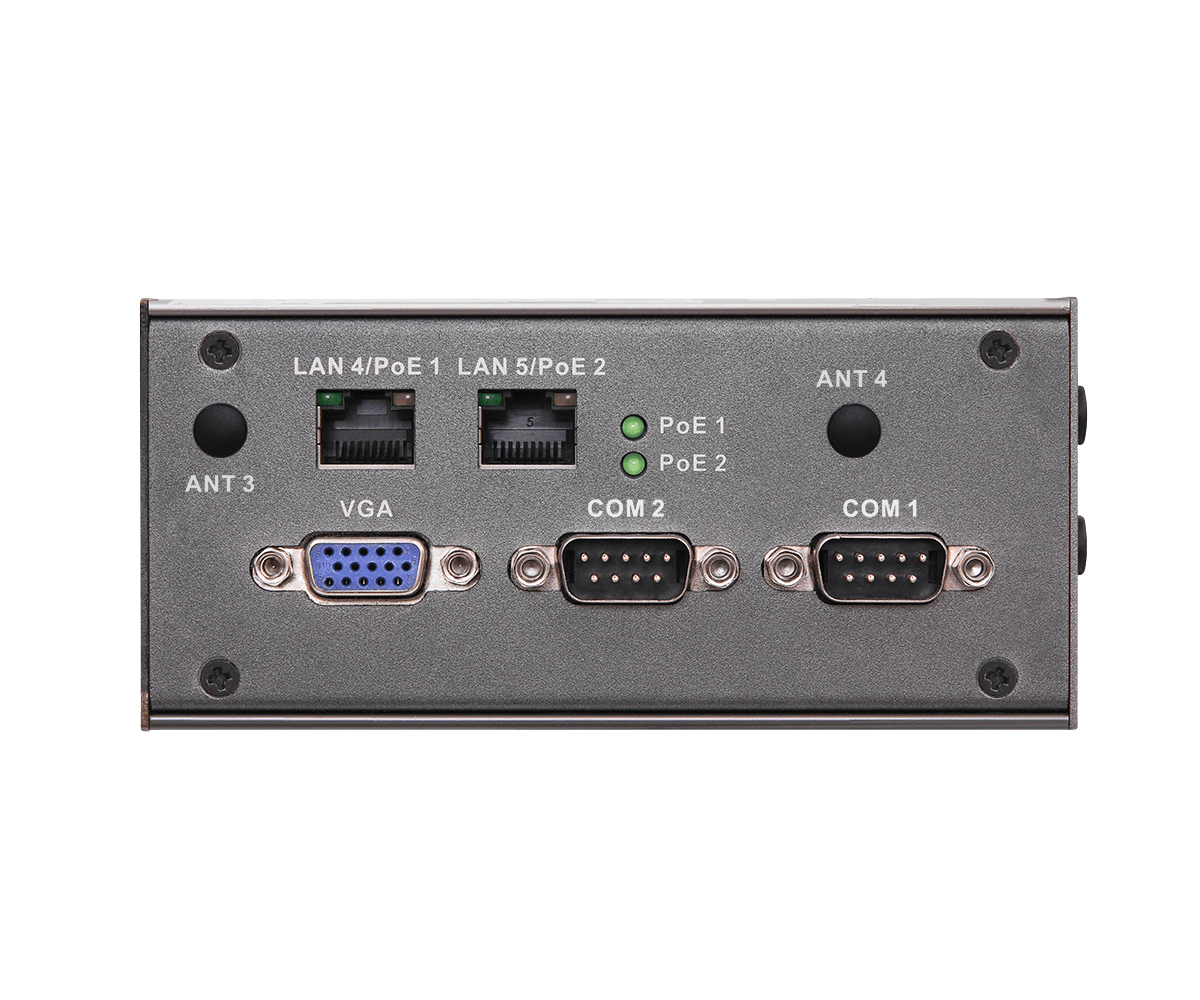

| Ethernet | 2 x 1G LAN for PoE/5LAN SKU |
| LED | 2 x PoE LED |

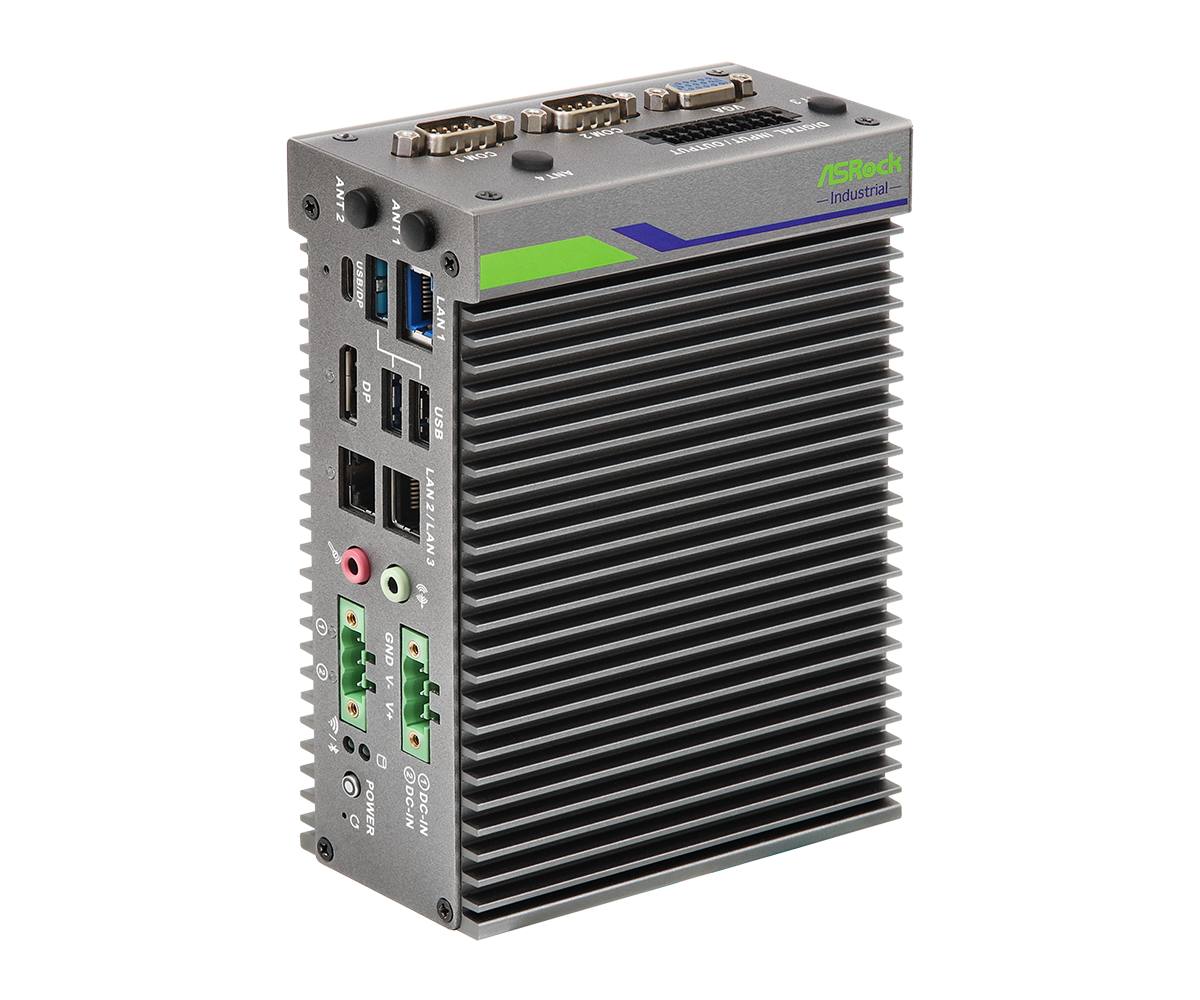

| Digital I/O | 8DIs/8DOs with sink/source isolation 3KV for 8DIO SKU |
Storage
| M.2 | 1 x M.2 (Key M, 2280) with PCIe Gen3x2 |
|---|
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| DC Input | For Basic/5LAN/8DIO SKU: 6V~36V DC For PoE SKU: 19V~36V DC - OVP, UVP, OCP, plus 80V surge protection |
|---|
Environment
| Operating Temp | For Basic/5LAN/8DIO SKU : -40°C ~ 70°C (-40°F~158°F) For PoE SKU : -40°C ~ 50°C (-40°F~122°F) With airflow 0.5~0.8m/s |
|---|---|
| Storage Temp | -40°C ~ 85°C (-40°F~185°F) |
| Humidity | ~95% @ 40°C (non-condensing) |
| Vibration | Operating: 5 Grms, 5-500 Hz, 3 axes with SSD |
| Shock | Operating 100 G, half sine 11 ms duration with SSD |
| ESD | Contact +/-8 KV, Air +/-15 KV |
| EMC | CE and FCC Class A (EN61000-6-4/-2) |
| Safety | LVD |
Mechanical
| Construction | Aluminum |
|---|---|
| Dimensions (L x W x H) | 58 x 125 x 157 mm |
| Mounting | DIN-Rail , Wall Mount (By Request) |
| Weight | TBD |
Others
| OS Support | Windows & Linux |
|---|---|
| Real-Time Enablement | TSN, TCC support under Linux |
| TPM | TPM2.0 |
| Packing List | 3 x M2*2 Screw Package 1 x 3-pin phoenix connector 1 x System QIG |
| Optional Items | (1) 19V/65W Power Adapter for Basic/5LAN/8DIO SKU (2) 19V/120W Power Adapter for PoE SKU (3) Thermal Kits for support 4G LTE/5G module (4) Antenna/SMA Cable for support Wi-Fi module (5) Antenna/SMA Cable for support 4G LTE/5G module (6) DIN Rail Kit (7) Wall Mount Kit |
