iBOX-J6412 Fanless Embedded BOX PC

  • Intel® ElkHart Lake SoC Processors
  • 2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz
  • 4 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
  • 2 x Realtek 1 Gigabit LAN
  • Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
  • TPM 2.0 onboard IC
  • 19V/65W Power Adapter
  • 135 x 110 x 44.5mm, Fanless Barebone
Datasheet
Overview



Specification

Processor System

CPU Intel® ElkHart Lake SoC Processors
iBOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Chipset SoC
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel DDR4 3200 MHz
Capacity 32GB (16 GB per DIMM)
Socket 2 x 260-pin SO-DIMM

Graphics

Controller Intel® Gen 11 Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.2, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay Dual-Display

Expansion Slot

M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0

Audio

Interface Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector 2 x RJ-45

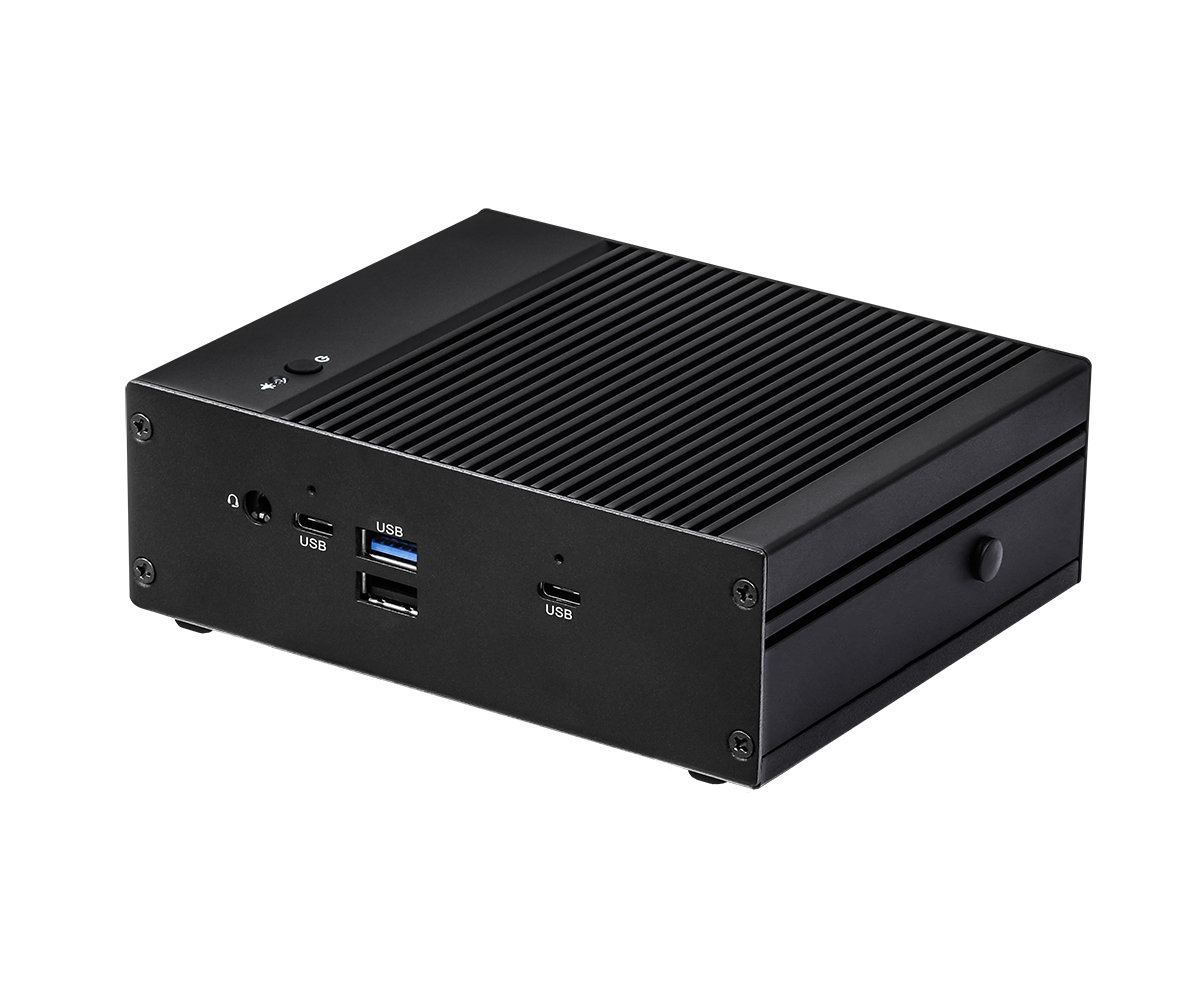

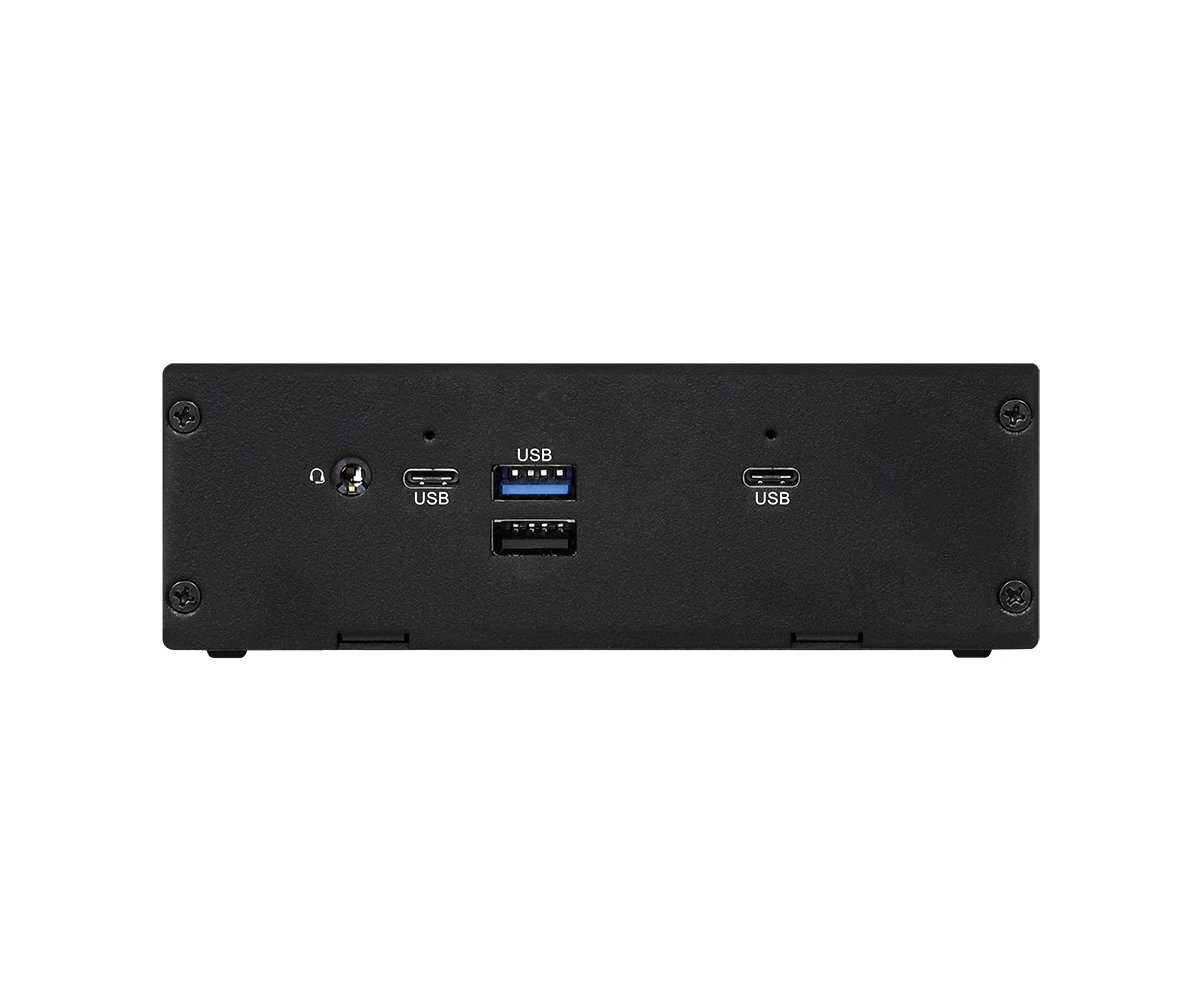

Front I/O

USB 1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
1 x USB 2.0
Audio 1 (headphone & microphone jack)

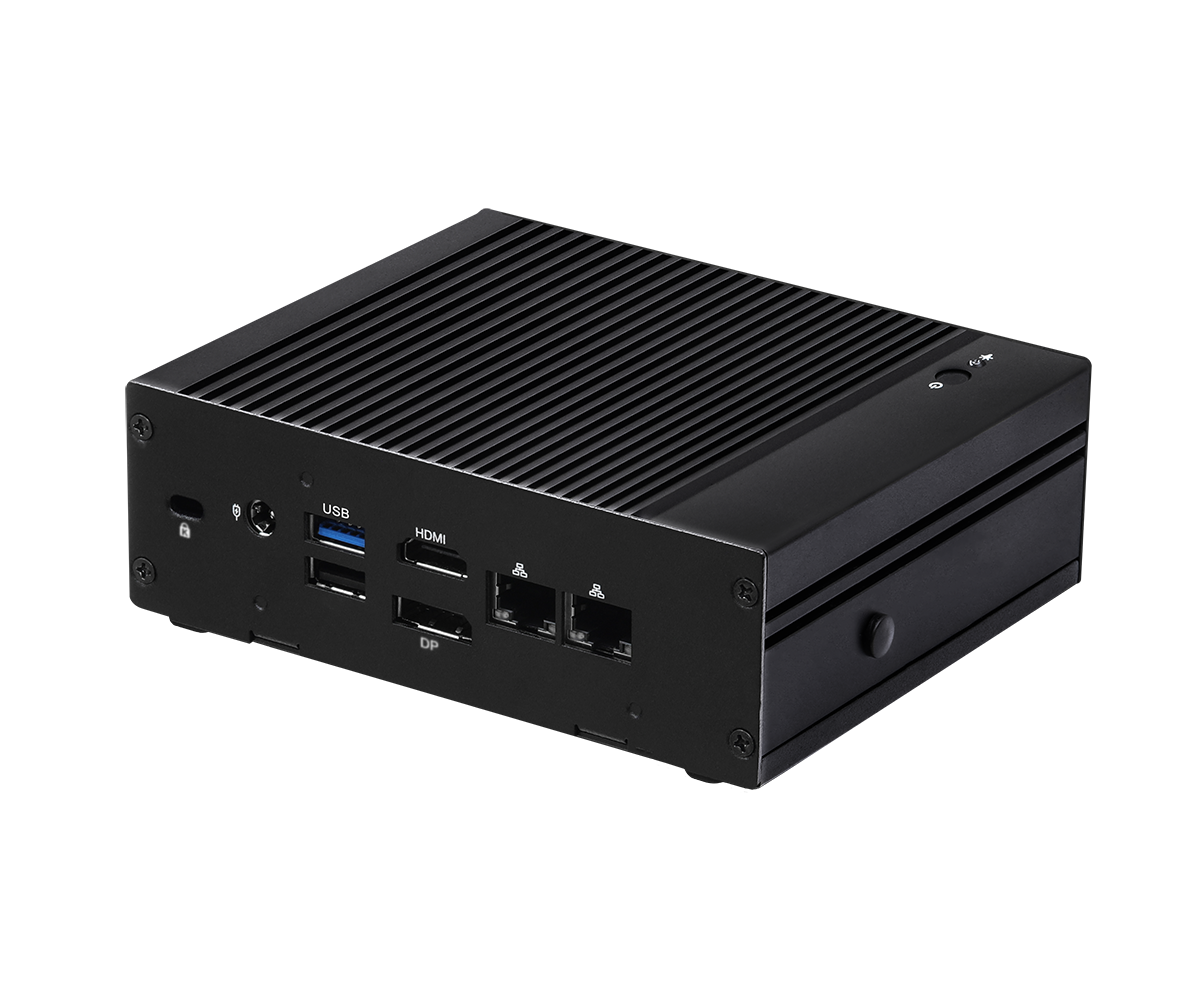

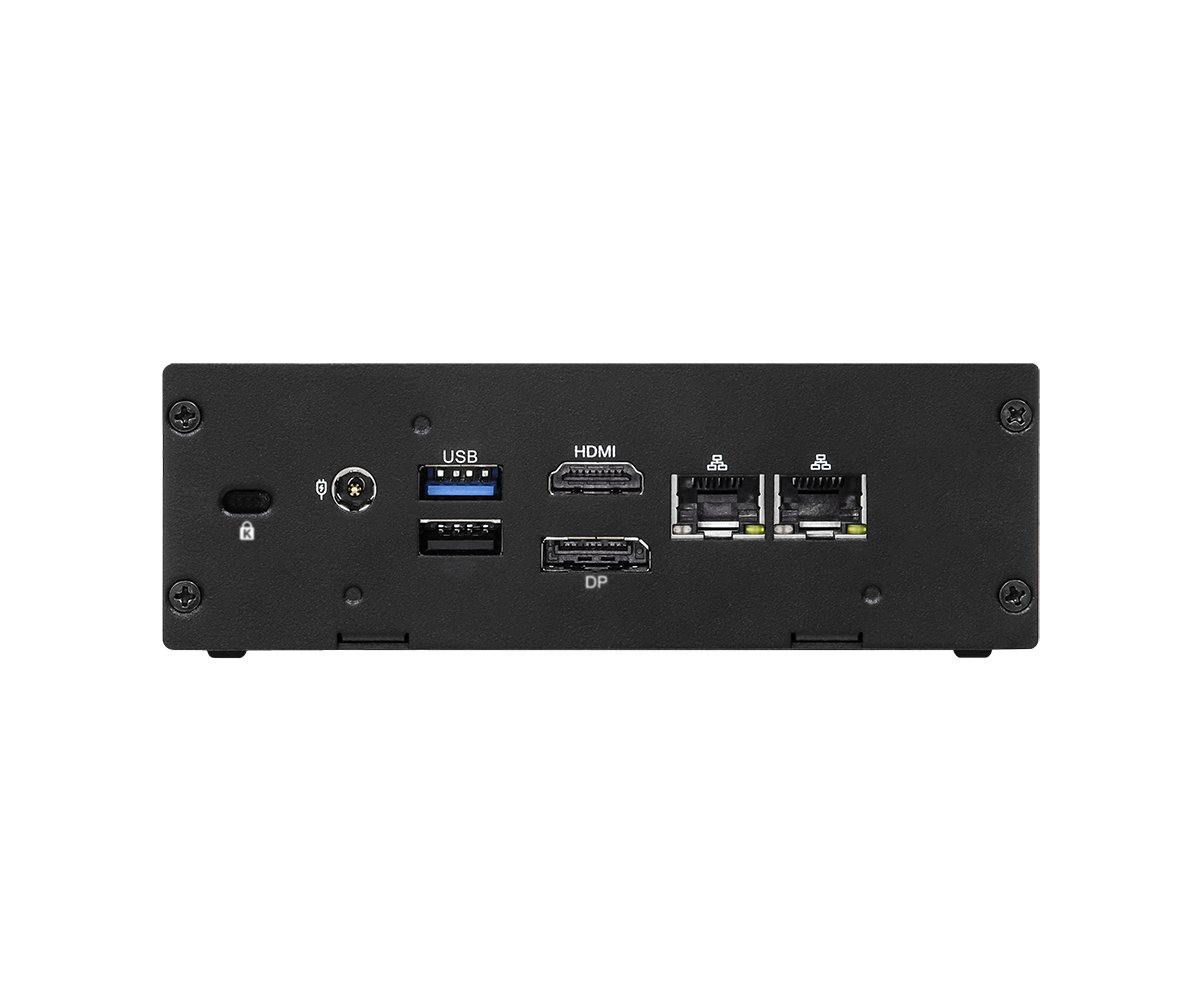

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.2
Ethernet 2 x 1 Gigabit LAN
USB 1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
DC Jack 1

Storage

M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR 19V/65W Power Adapter
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 50ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Mechanical

Construction Aluminum housing
Mounting VESA mounting
Dimensions (W x H x D) 135x110x44.5mm
Weight Net Weight:0.7Kg

Others

OS Support Windows 10
Certifications CE, FCC Class A
Packing List 1 x 19V/65W Power Adapter
1 x Screw Package
1 x VESA mounting bracket

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description VGA Driver ver:27.20.100.9079.2 OS Win 10 x 64 Date 2021-08-23 Download
Description Intel Management Engine driver ver:15.40.10.2252_PV_SW_DCH OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-08-23 Download
Description INF driver ver:10.1.18634.8254_Public OS Win 10 x 64 Date 2021-08-23 Download
Description Realtek Lan driver ver:10047_02232021 OS Win 10 x 64 Date 2021-08-23 Download
Description Realtek Teaming driver ver:2.0.4.0 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-08-23 Download
Description Realtek high definition audio driver ver:9116_FF00 OS Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7 Date 2021-08-23 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First release Date 2021-07-30 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First release Date 2021-07-30 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First release Date 2021-07-30 Download
