IMB-X1712
IMB-X1712
IMB-X1712

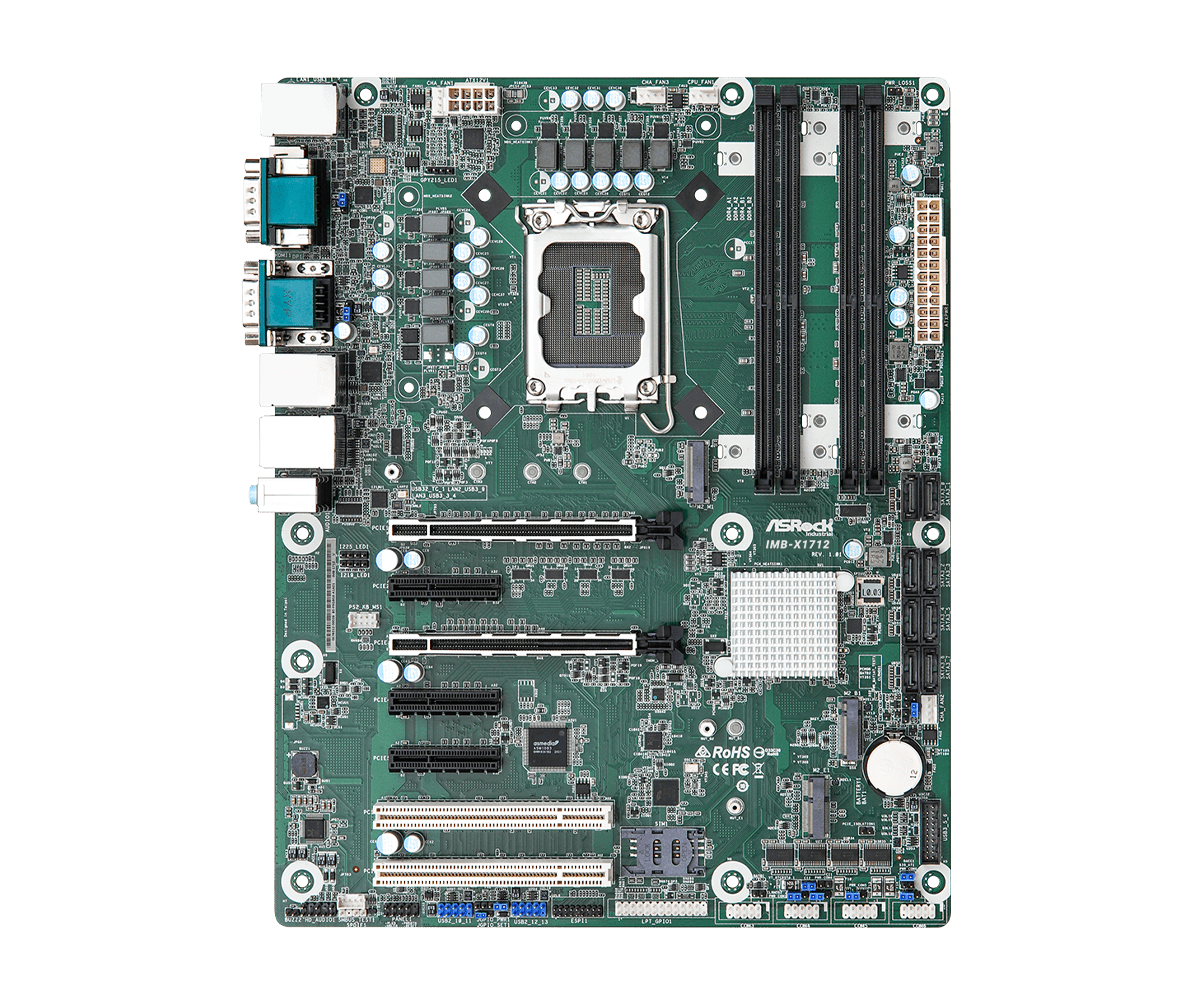

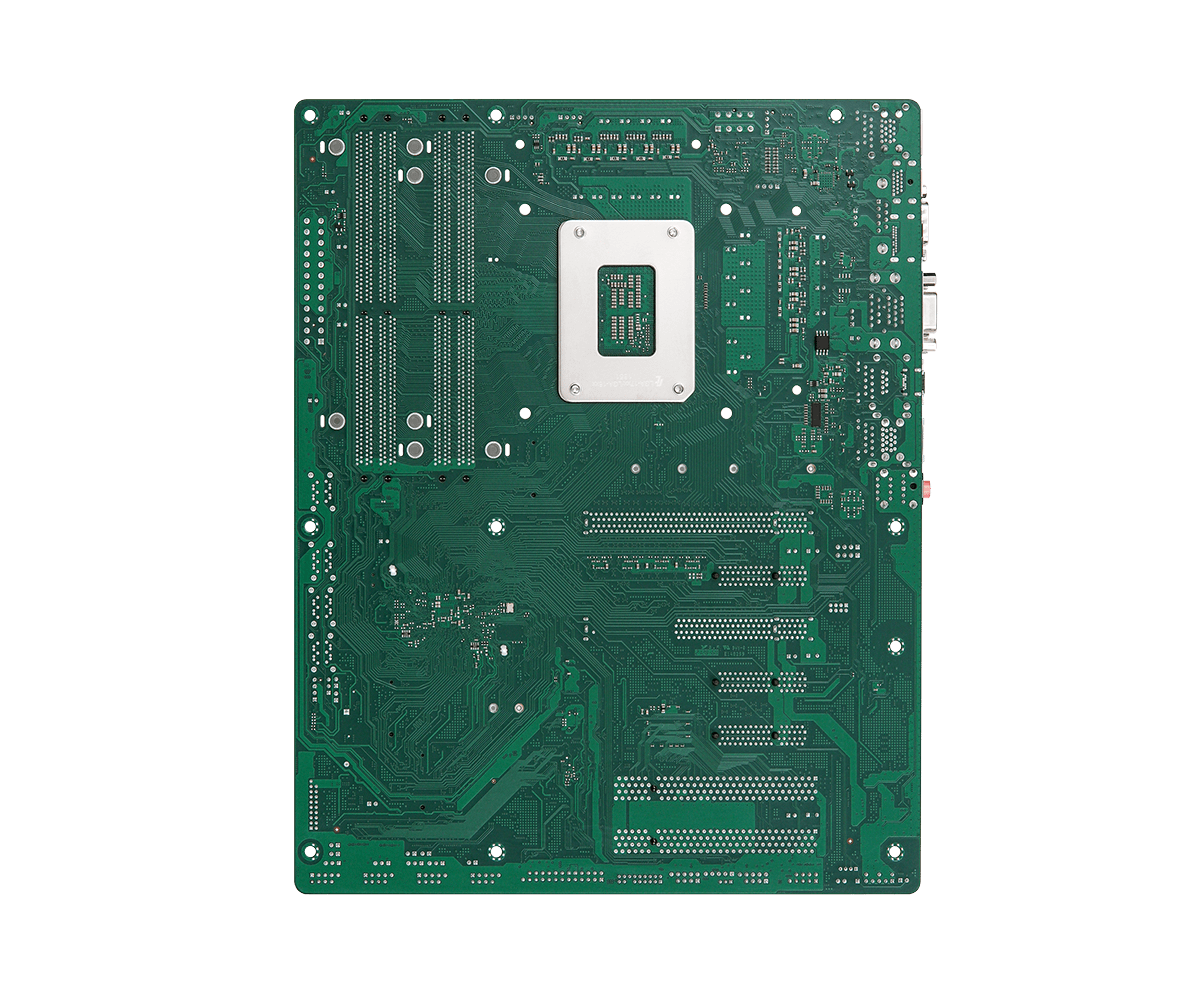

IMB-X1712 ATX Motherboard

  • Intel® 12th Gen (Alder Lake-S) Core™ Processors with W680 chipset
  • 4 x 288-pin ECC/non-ECC Long-DIMM DDR4 3200 MHz , up to 128GB (32GB per DIMM)
  • 1 x PCIe x16 (Gen4), 1 x PCIe x8, 2 x PCIe x4 (Gen4), 1 x PCIe x4 (Gen3), 2 x PCI
  • 1 x USB 3.2 Gen2x2 Type C, 5 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0
  • 1 x M.2 Key B, 1 x M.2 Key E, 1 x M.2 Key M, 6 x COM, 8 x SATA3
  • 3 x Intel 2.5 Gigabit LAN
  • Supports Triple display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, AMT, VMD RAID 0/1/5/10
  • ATX PWR (8+24 Pin)
Datasheet
Specification

Form Factor

Dimensions ATX (12-in x 9.6-in x 1.4-in, 30.5 cm x 24.4 cm x 3.6 cm)

Processor System

CPU Intel® 12th Gen (Alder Lake-S) Core™ Processors, up to 125W
Chipset Intel® W680
Socket LGA1700
BIOS AMI SPI 256 Mbit

Memory

Technology Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity 128 GB (32 GB per DIMM)
Socket 4 x 288-pin Long-DIMM

Graphics

Controller Intel® UHD Graphics
HDMI HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Triple Display

Expansion Slot

PCIe 2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3))
2 x PCIe x4 (Gen4)
1 x PCIe x4 (Gen3)
PCI 2 x PCI
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 Key B

Audio

Interface Realtek ALC897, High Definition Audio. Line-In / Line-Out / Mic-In

Ethernet

Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
LAN3: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 3 x RJ-45

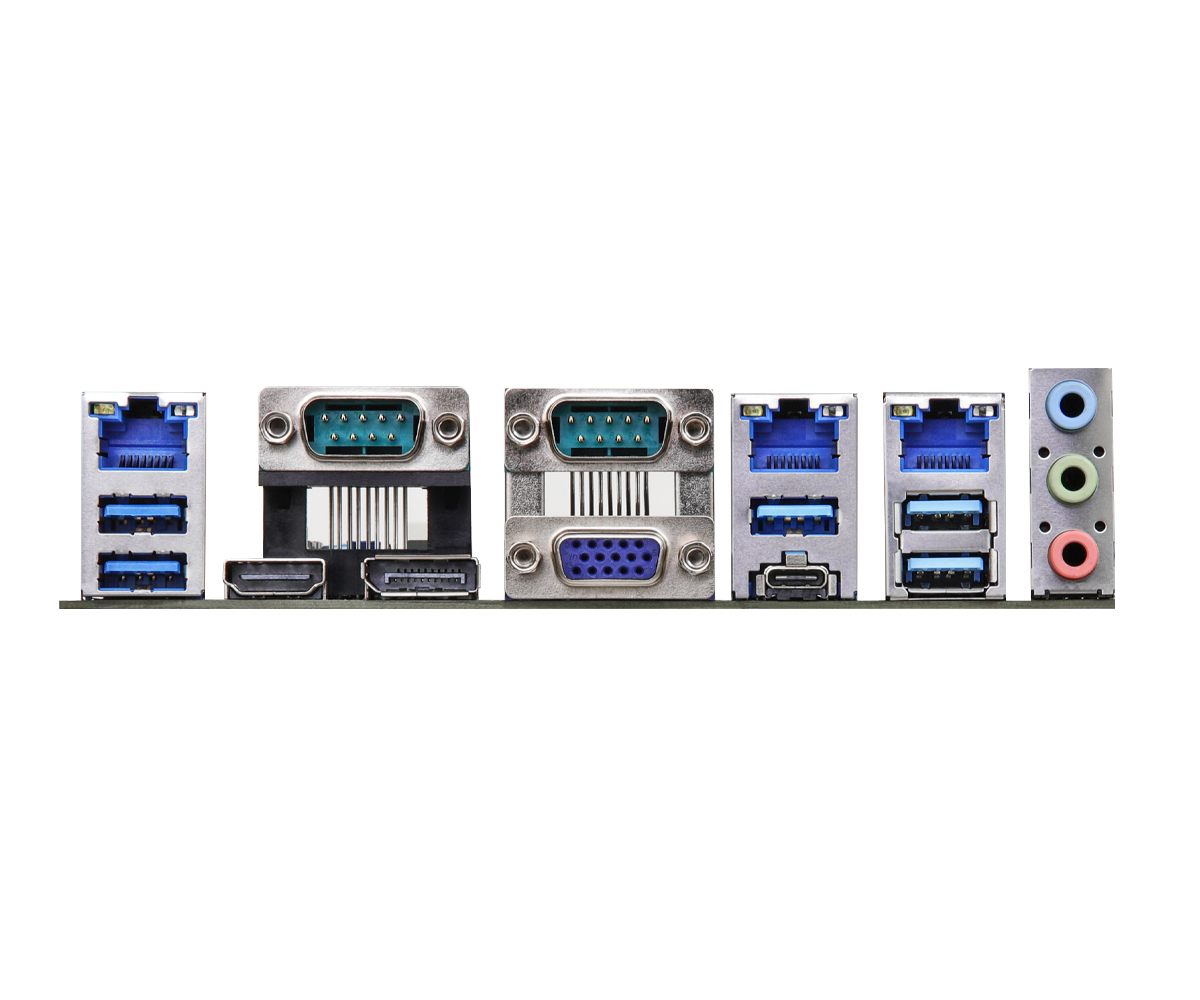

Rear I/O

HDMI 1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
VGA 1
Ethernet 3 x 2.5 Gigabit LAN
USB 5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type C)
Audio 3 ( Line-In, Line-Out, Mic-In )
COM COM1, COM2 (RS-232/422/485)

Internal Connector

USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM COM3, COM4, COM5, COM6 (RS-232)
Parallel 1 (shared with GPIO)
GPIO 8 x GPI, 8 x GPO (shared with LPT header)
TPM TPM 2.0 onboard IC
PS/2 1 x PS2 header
Thunderbolt header 1 (only support by PCIE4)

Storage

M.2 1 x M.2 (Key M, up to 25110) with PCIe Gen4 x4 for SSD
SATA 8 x SATA3 (6Gb/s)
RAID Intel® VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M
SATA interface: SATA port

Watchdog Timer

Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec

Power Requirements

Input PWR ATX PWR (8+24 Pin)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready

Environment

Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Accessories

Gift Package 2 x SATA Data Cable (14G00010107DAK)
1 x I/O Shield (13G020776000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package 1 x I/O Shield (13G020776000AK)
3 x SCREW M2*2,D=5 (13G020302031AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

OS:

Description OS Date Download
Description [Beta] VGA Driver ver:30.0.101.1404 OS Win 11 x 64 Date 2022-11-30 Download
Description [Beta] Intel HID Event Filter ver:2.2.1.386 OS Win 11 x 64 Date 2022-11-30 Download
Description [Beta] Realtek high definition audio driver ver:9239_FF00 OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] Intel Lan driver ver:v27.4 OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] INF driver ver:10.1.18836.8283 OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] Intel Bluetooth driver ver:22.70.1.1G OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] Intel WLAN Driver ver:22.70.2.1 OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] Intel Rapid Storage Technology driver and utility ver:19.0.0.1067.2 OS Win 11 x 64 Date 2022-11-28 Download
Description [Beta] Intel Management Engine driver ver:16.0.15.1620_CORP_SW_DCH OS Win 11 x 64 Date 2022-11-28 Download
Description Intel Management Engine driver ver:16.0.15.1620_CORP_SW_DCH OS Win 10 x 64 Date 2022-03-09 Download
Description Intel HID Event Filter ver:2.2.1.386 OS Win 10 x 64 Date 2022-03-09 Download
Description VGA Driver ver:30.0.101.1404 OS Win 10 x 64 Date 2022-03-09 Download
Description Intel Rapid Storage Technology driver and utility ver:19.0.0.1067.2 OS Win 10 x 64 Date 2022-03-09 Download
Description Intel WLAN Driver ver:22.70.2.1 OS Win 10 x 64 Date 2022-03-09 Download
Description Intel Bluetooth driver ver:22.70.1.1G OS Win 10 x 64 Date 2022-03-09 Download
Description INF driver ver:10.1.18836.8283 OS Win 10 x 64 Date 2022-03-09 Download
Description Intel Lan driver ver:v27.4 OS Win 10 x 64 Date 2022-03-08 Download
Description Realtek high definition audio driver ver:9239_FF00 OS Win 10 x 64 Date 2022-03-08 Download
Version Update BIOS Under / How to Update Description Date Download
Version 1.50 Update BIOS Under / How to Update BIOS Description Enhance PCIe device compatibility Date 2022-08-04 Download
Version 1.50 Update BIOS Under / How to Update DOS Description Enhance PCIe device compatibility Date 2022-08-04 Download
Version 1.50 Update BIOS Under / How to Update Windows Description Enhance PCIe device compatibility Date 2022-08-04 Download
Version 1.30 Update BIOS Under / How to Update BIOS Description 1. Enhance system compatibility
2. Update MCU Fan settings
3. Optimize thermal design power settings
Date 2022-06-30 Download
Version 1.30 Update BIOS Under / How to Update DOS Description 1. Enhance system compatibility
2. Update MCU Fan settings
3. Optimize thermal design power settings
Date 2022-06-30 Download
Version 1.30 Update BIOS Under / How to Update Windows Description 1. Enhance system compatibility
2. Update MCU Fan settings
3. Optimize thermal design power settings
Date 2022-06-30 Download
Version 1.20 Update BIOS Under / How to Update BIOS Description Enhance system compatibility Date 2022-06-14 Download
Version 1.20 Update BIOS Under / How to Update DOS Description Enhance system compatibility Date 2022-06-14 Download
Version 1.20 Update BIOS Under / How to Update Windows Description Enhance system compatibility Date 2022-06-14 Download
Version 1.10 Update BIOS Under / How to Update BIOS Description First release Date 2022-06-01 Download
Version 1.10 Update BIOS Under / How to Update DOS Description First release Date 2022-06-01 Download
Version 1.10 Update BIOS Under / How to Update Windows Description First release Date 2022-06-01 Download

The format of our documents are in PDF files. If you have not installed Adobe Acrobat Reader, please get it from Adobe.

Description Language Date Download
Description User Manual Language English Date 2022-06-17 Download
Description Jumpers and Headers Setting Guide Language English Date 2022-03-15 Download
Description Date Download
Download CPU Support List Date 2022-07-11 Download
