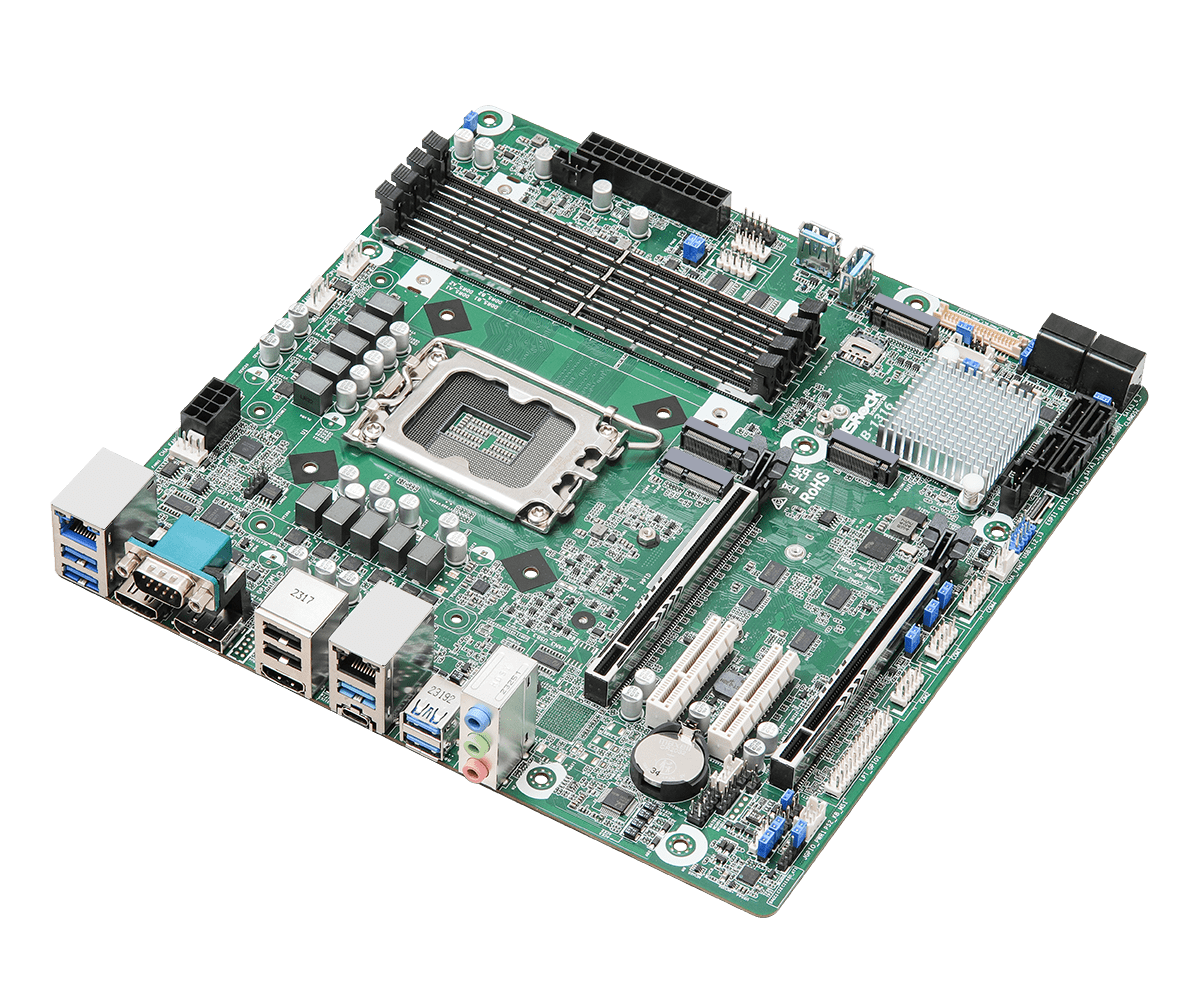

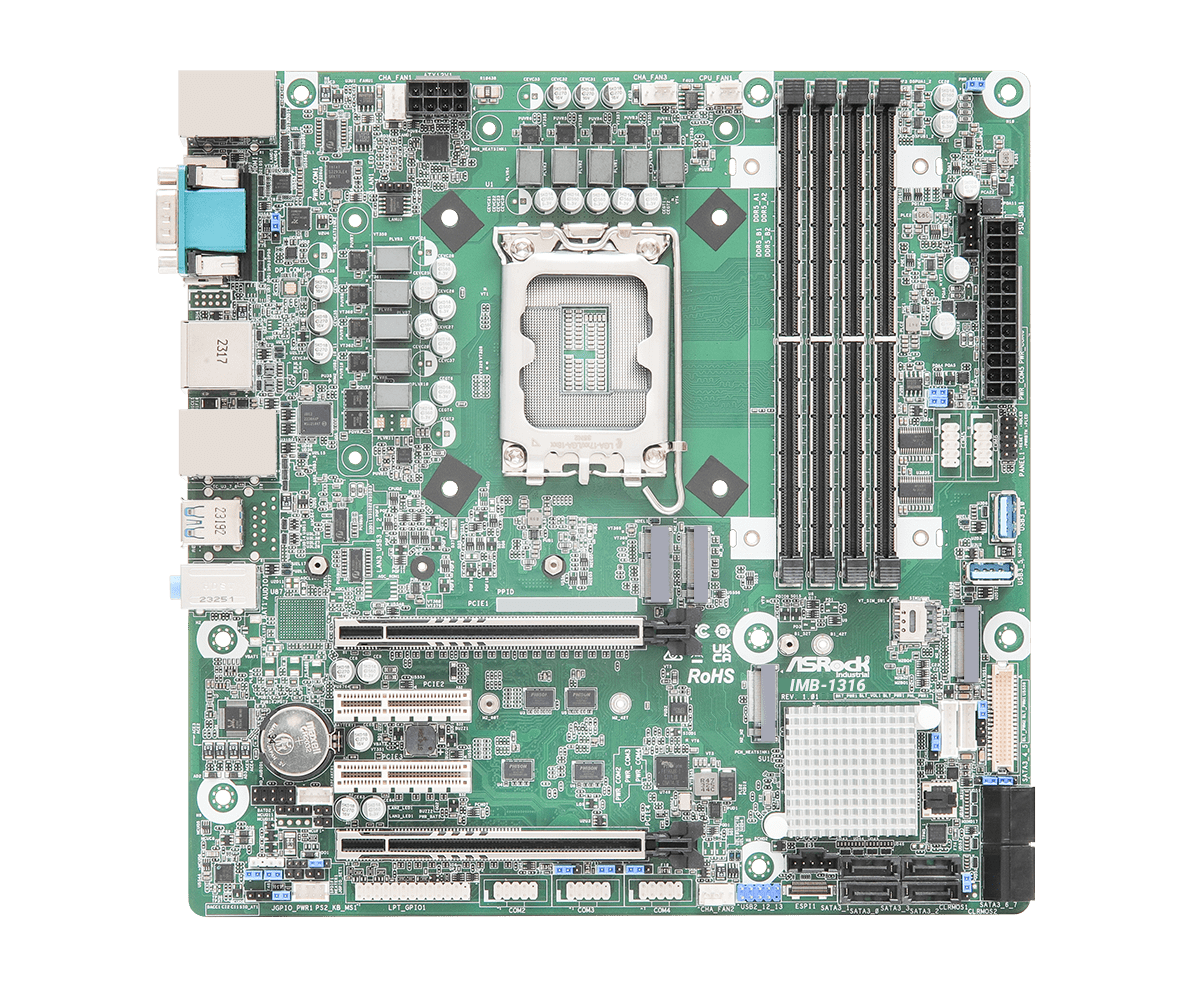

IMB-1316 Micro ATX Motherboard

Processor System

CPU	Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 125W
Chipset	Intel® Q670
Socket	LGA 1700
BIOS	AMI SPI 256 Mbit

Form Factor

Dimensions	Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm)

Memory

Technology	Dual Channel DDR5 4400/5600 MHz* *Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to https://www.asrockind.com/en-gb/index.php?route=newsblog/faq&faq_id=90 technical FAQ *For DDR5 5600 support refer to memory support list
Capacity	192GB (48GB per DIMM)
Socket	4 x 288-pin Long-DIMM

Graphics

Controller	Intel® UHD Graphics
HDMI	2 x HDMI 2.0b Max resolution up to 4096 x 2160@60Hz
DisplayPort	DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Quad Display

Expansion Slot

PCIe	2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE4)) (PCIE1: Support riser card x8/x8) 2 x PCIex4 (Gen4)* *If using PCIEx8/x16 card on PCIE2 slot, M.2 Key M2(M2_M2) is limited to install.
M.2	1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G
SIM Socket	1 x SIM socket connected to M.2 key B

Audio

Interface	Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In

Ethernet

Controller/ Speed	LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, support vPro LAN2: Intel® I210AT with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	2 x HDMI 2.0b
DisplayPort	1 x DP++
Ethernet	1 x 2.5 Gigabit LAN 1 x 1 Gigabit LAN
USB	2 x USB 2.0 5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type C, 5V/3A)
Audio	3 (Line-In/Line-Out/Mic-In)
Serial Port	COM1 (RS-232/422/485)

Internal Connector

USB	1 x USB 3.2 Gen1 vertical Con 1 x USB 3.2 Gen2 vertical Con 2 x USB 2.0 (1 x 2.54 pitch header)
COM	COM2 (RS-232/422/485) COM3, COM4, COM5, COM6 (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
LVDS	1
Speaker Header	1
PS/2	1 x PS/2 header
Thunderbolt header	1 (only PCIE3 support)

Security

TPM	TPM 2.0 onboard IC

Storage

M.2	1 x M.2 (Key M, 2242/2280/25110) with PCIe Gen4 x4 for SSD 1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4 for SSD
SATA	8 x SATA3
RAID	Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	ATX PWR (24+8-pin)
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	-20ºC ~ 70ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G02P041000AK) 4 x SCREW M2*2,D=5 (13G020302031AK)
Bulk Package	1 x I/O Shield (13G02P041000AK) 4 x SCREW M2*2,D=5 (13G020302031AK)
Option	2 x MOS SINK (13G074092000AI) 2 x DIMM BRACKET (13G03P003000AI) *Please contact regional Sales for this inquiry

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
