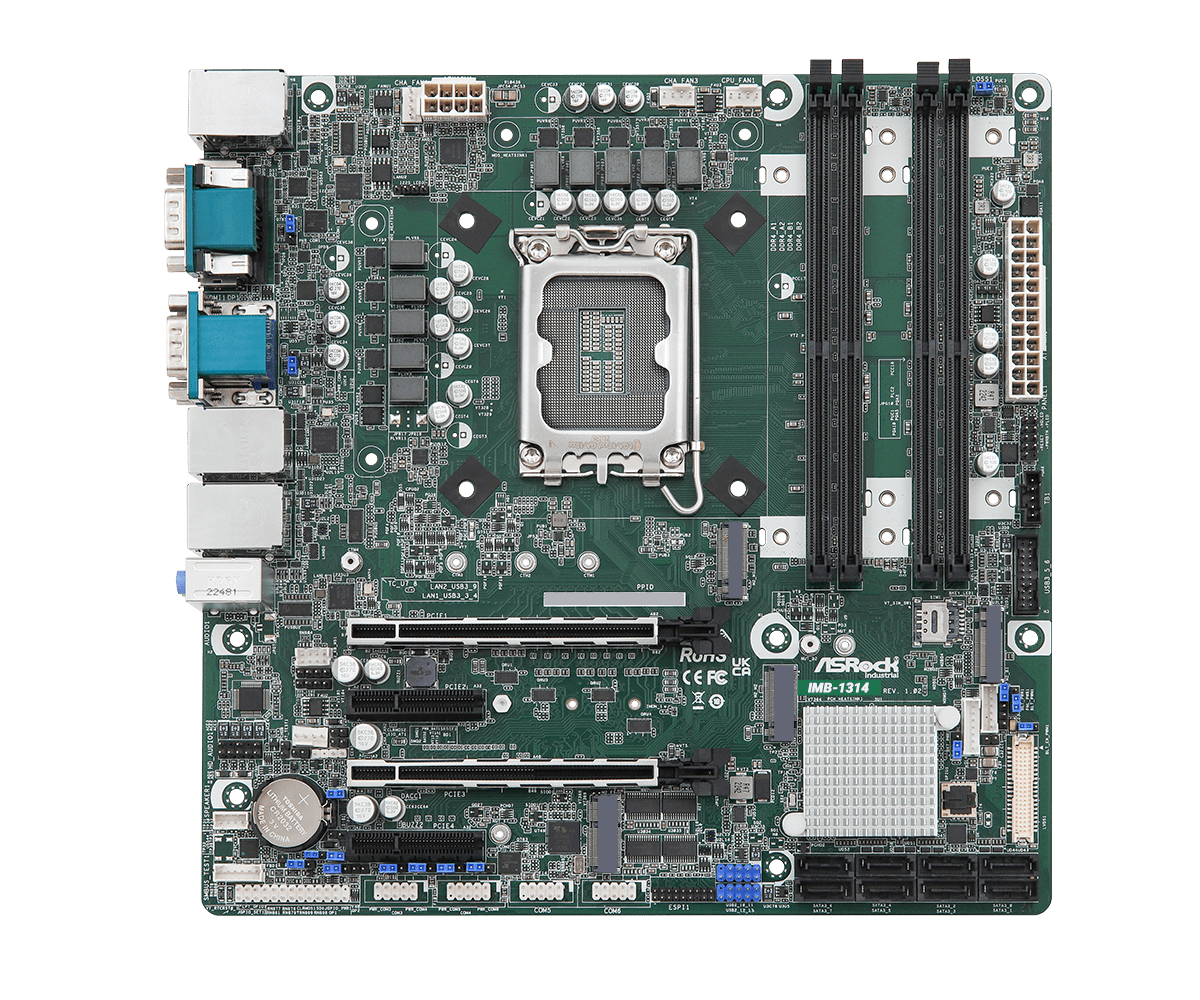

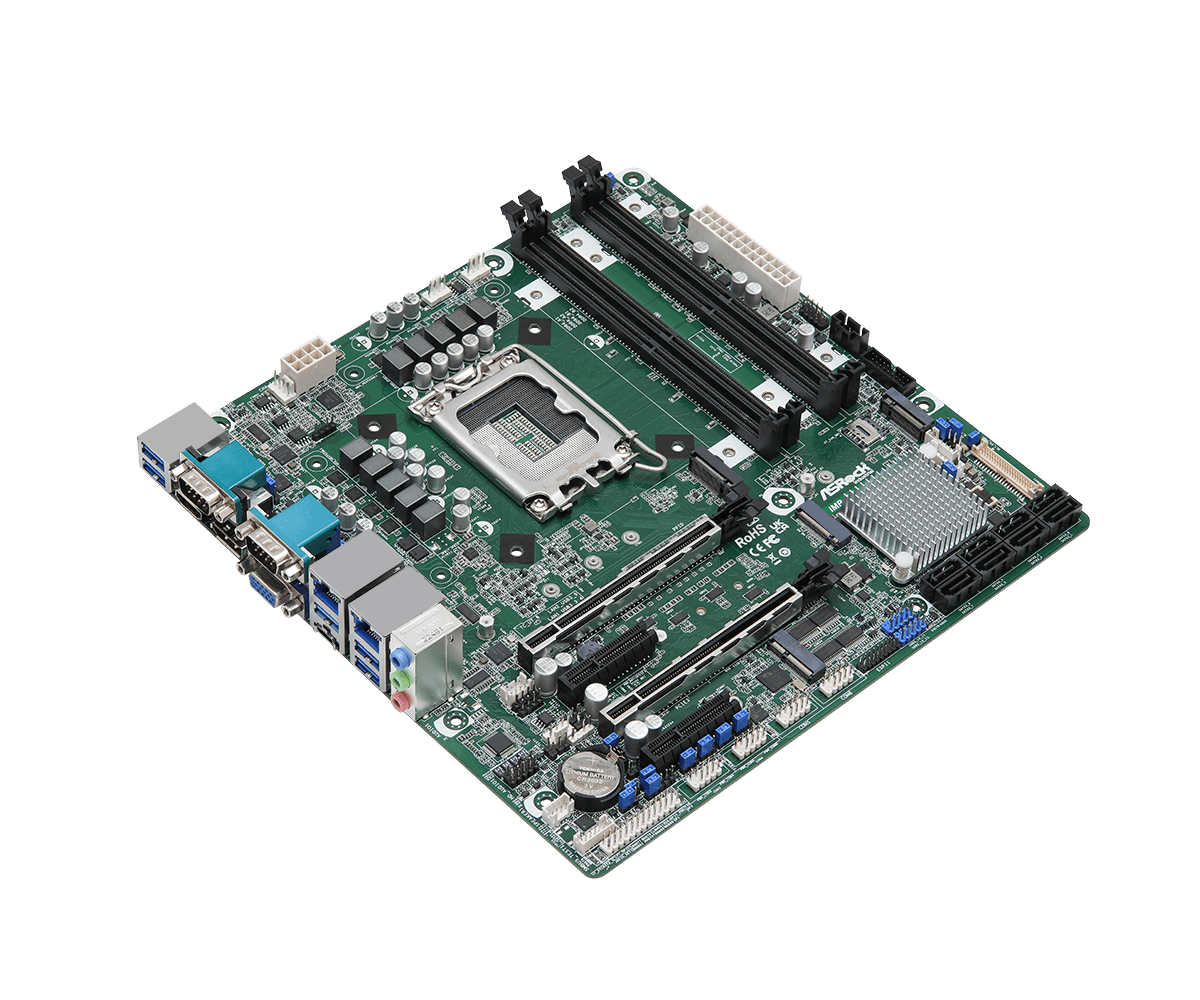

IMB-1314 Micro ATX Motherboard
- Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset
- 4 x 288-pin Long-DIMM DDR4 3200 MHz, up to 128GB (32GB per DIMM)
- 1 x PCIex16 (Gen4), 1 x PCIex8 (Gen4), 2 x PCIex4 (Gen4), 1 x USB3.2 Gen2x2, 5 x USB 3.2 Gen2, 2x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 2 x M.2 Key M, 1 x M.2 Key B, 6 x COM, 8 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 1 x DP 1.4a, 1 x VGA, 1 x LVDS
- TPM 2.0 onboard IC
- Supports Intel® vPro, VMD RAID 0/1/5/10
- ATX PWR (24+8 Pin)
Specification
Processor System
| CPU | Intel® Core™ Processor Series 2 (Bartlett Lake-S) and 14th/13th/12th Gen (Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) Core™ Processors , up to 125W |
|---|---|
| Chipset | Intel® Q670 |
| Socket | LGA 1700 |
| BIOS | AMI SPI 256 Mbit |
Form Factor
| Dimensions | Micro-ATX (9.6-in x 9.6-in x 1.4-in, 24.4 cm x 24.4 cm x 3.6 cm) |
|---|
Memory
| Technology | Dual Channel DDR4 3200 MHz |
|---|---|
| Capacity | 128GB (32GB per DIMM) |
| Socket | 4 x 288-pin Long-DIMM |
Graphics
| Controller | Intel® UHD Graphics |
|---|---|
| HDMI | HDMI 2.0b Max resolution up to 4096 x 2160@60Hz |
| DisplayPort | DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| MultiDisplay | Quad Display |
Expansion Slot
| PCIe | 2 x PCIe Gen4 Slots (PCIE1/PCIE3:single at x16(PCIE1); dual at x8 (PCIE1) / x8 (PCIE3)) (PCIE1: Support riser card x8/x8) 2 x PCIex4 (Gen4)* *If using PCIEx8/x16 card on PCIE2/PCIE4 slot, M.2 Key M2(M2_M2) and M.2 Key E(M2_E1) are limited to install. |
|---|---|
| M.2 | 1 x M.2 (Key B, 3042/3052) with PCIex1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| SIM Socket | 1 x SIM socket connected to M.2 key B |
Audio
| Interface | Realtek ALC897 HD, High Definition Audio. Line-In, Line-Out, Mic-In |
|---|
Ethernet
| Controller/ Speed | LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps |
|---|---|
| Connector | 2 x RJ-45 |

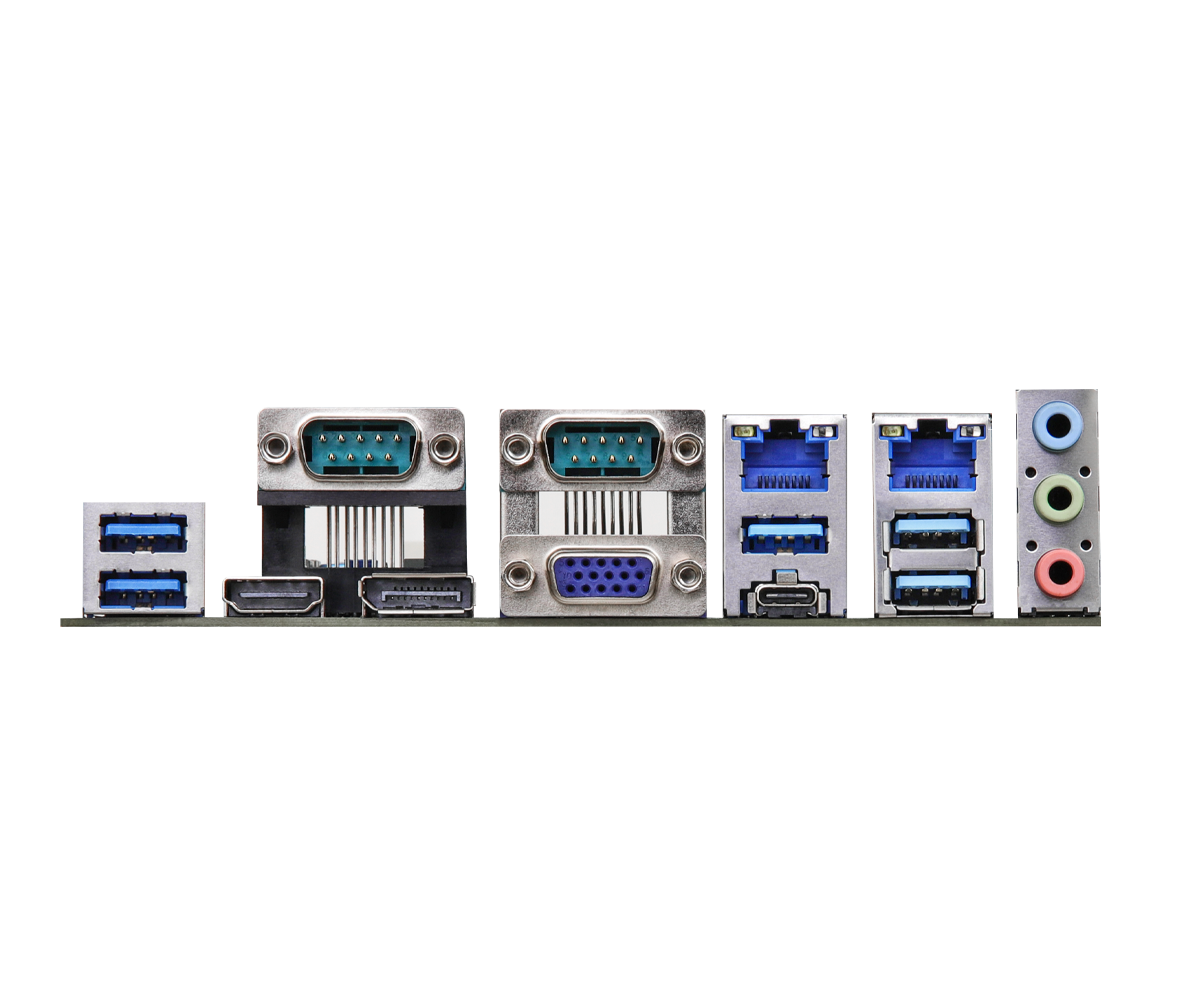

Rear I/O
| HDMI | 1 x HDMI 2.0b |
|---|---|
| DisplayPort | 1 x DP 1.4a |
| VGA | 1 |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 5 x USB 3.2 Gen2 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A) |
| Audio | 3 (Line-In/Line-Out/Mic-In) |
| Serial Port | COM1, COM2 (RS-232/422/485) |
Internal Connector
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) 4 x USB 2.0 (2 x 2.54 pitch header) |
|---|---|
| COM | COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | TPM 2.0 onboard IC |
| LVDS | 1 |
| Speaker Header | 1 |
| PS/2 | 1 x PS/2 header |
| Thunderbolt header | 1 (only support by PCIE4) |
Storage
| M.2 | 1 x M.2 (Key M, up to 25110) with PCIex4 Gen4 for SSD 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 Gen3 for SSD |
|---|---|
| SATA | 8 x SATA3 |
| RAID | Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIE or SATA) PCIE interface: M.2 Key B + M.2 Key M1/2 or 2*M.2 Key M SATA interface: SATA port |
Watchdog Timer
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR | ATX PWR (24+8-pin) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp | -20ºC ~ 70ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
Accessories
| Gift Package | 2 x SATA Data Cable (14G00010107DAK) 1 x I/O Shield (13G020776000AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
|---|---|
| Bulk Package | 1 x I/O Shield (13G020776000AK) 4 x SCREW M2*2,D=5 (13G020302031AK) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
