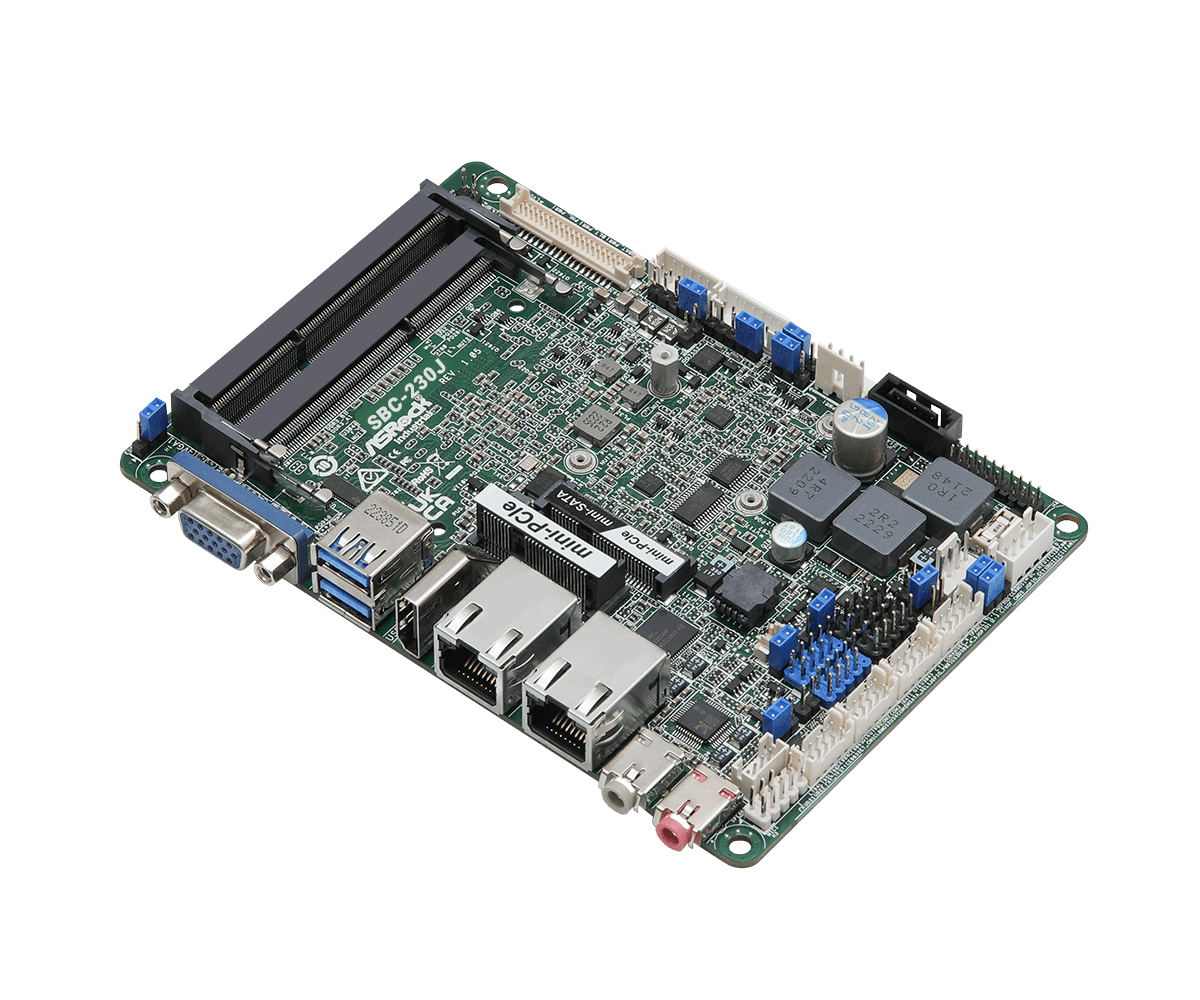

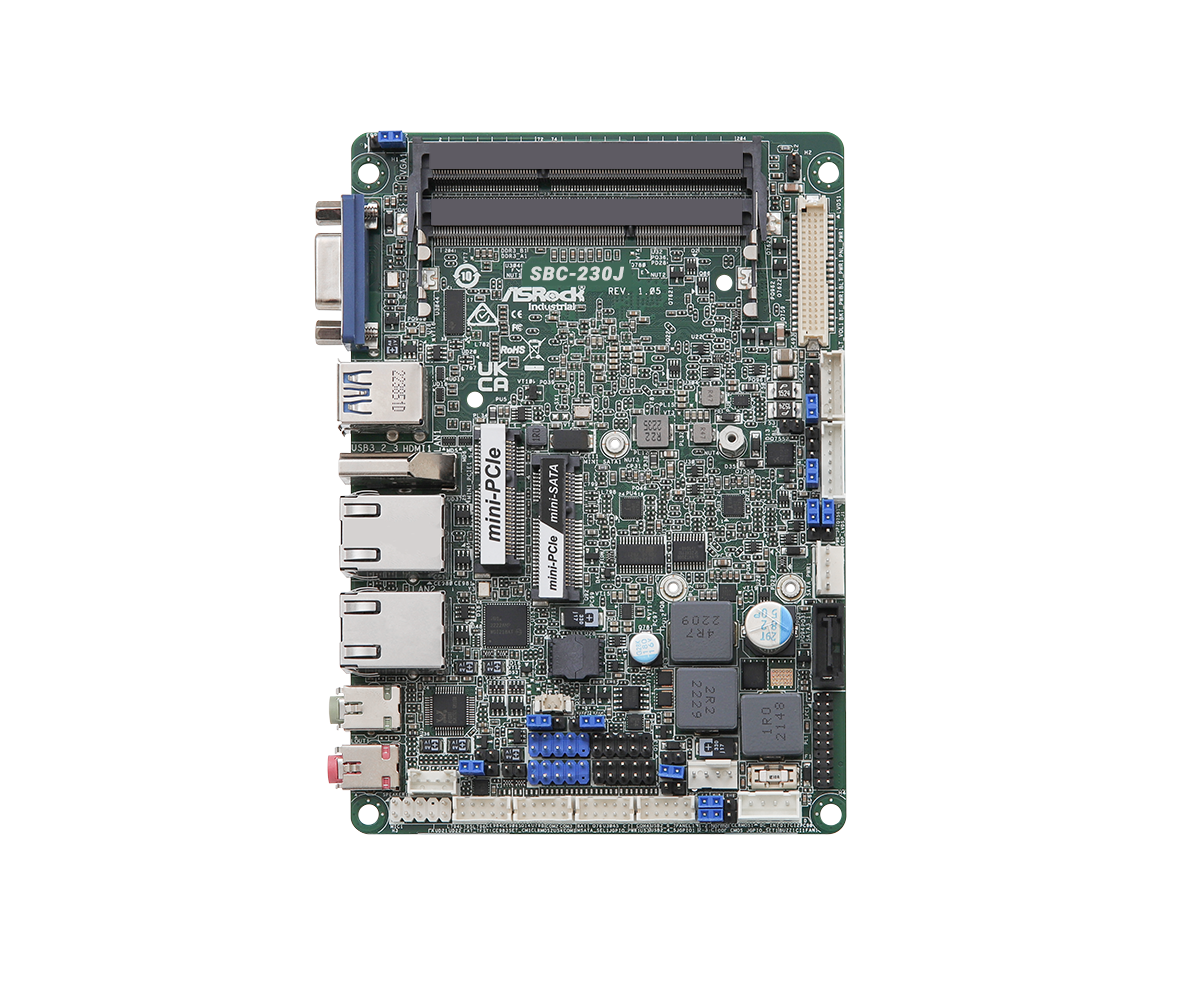

SBC-230J SBC 3.5

Processor System

CPU	Intel® Apollo Lake/Apollo Lake-I SoC Processors SBC-230J (J3455, QC, 1.50 GHz, 10W)
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Form Factor

Dimensions	3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16 GB (8GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
VGA	Max resolution up to 1920x1200@60Hz
LVDS	Dual channel 24 bit up to 1920x1200@60Hz
eDP	Max resolution up to 4096x2160@60Hz
MultiDisplay	Triple Display

Expansion Slot

mini-PCIe	1 x Full size with PCIe x1 and USB 2.0
mini-PCIe/mSATA	1 x Full size with USB 2.0

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Intel® I210 with 10/100/1000 Mbps
Connector	2 x RJ-45

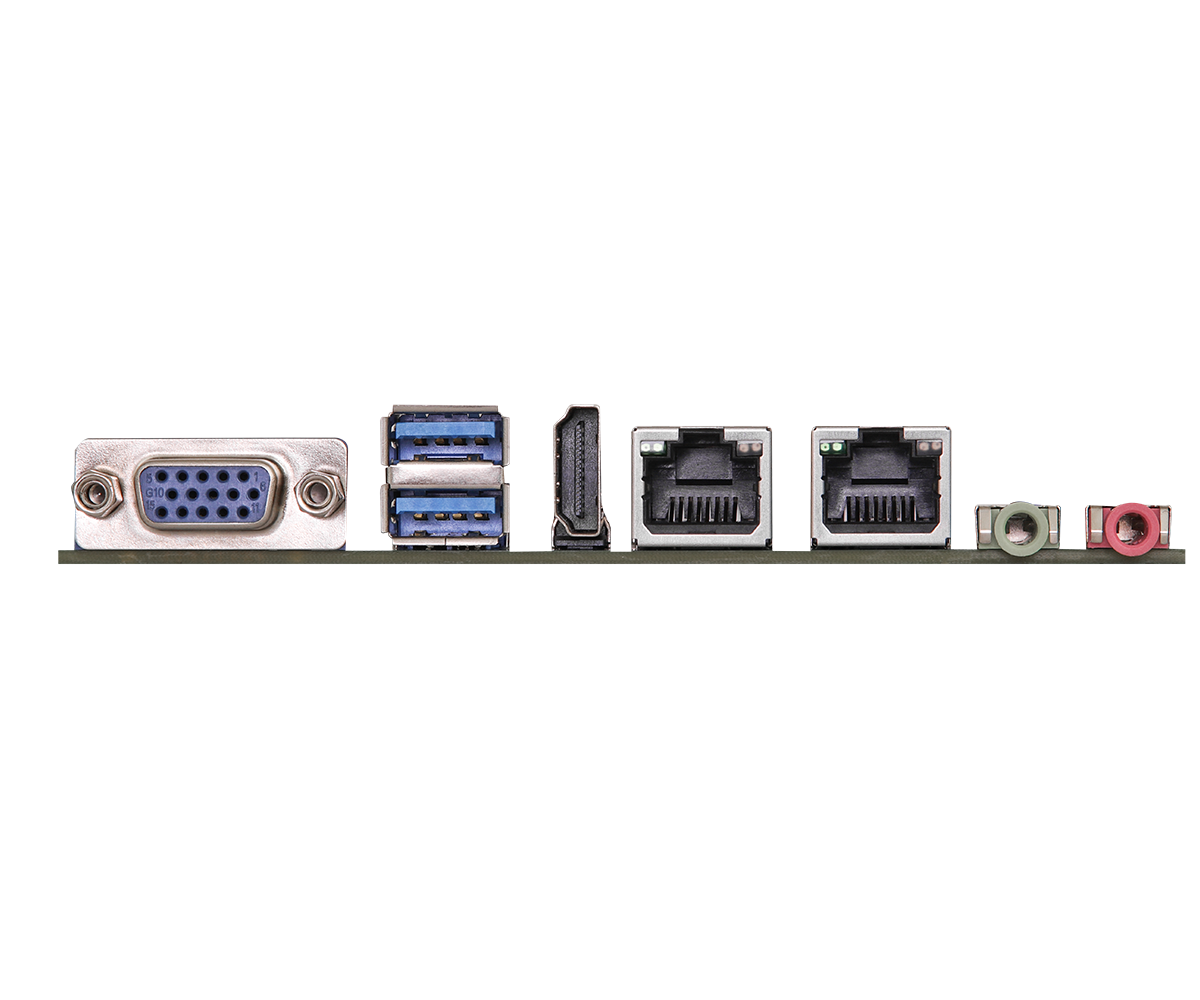

Rear I/O

HDMI	1 x HDMI 1.4b
VGA	1
Ethernet	2 x 1 Gigabit LAN
USB	2 x USB 3.1 Gen1
Audio	2 (Mic-in, Line-out)

Internal Connector

USB	4 x USB 2.0 (2x 2.54 pitch header)
COM	1 x COM(RS-232/422/485) 3 x COM(RS-232)
GPIO	4 x GPI, 4 x GPO
TPM	TPM Header
LVDS	1 (shared with eDP, switch by BIOS)
eDP	1 (shared with LVDS, switch by BIOS)
SATA PWR Output	1
Speaker Header	1

Storage

mSATA	1 x Half size with USB 2.0 colay with Mini-PCIe
SATA	1 x SATA3 (6Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	9~36V DC-In
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x SINK FOR SBC-230 (13G070347001AI) 1 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) 1 x DC-in Cable (14G000600900AK)
Bulk Package	2 x SCREW FOR WIFI CARD (13G020305011AK)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
