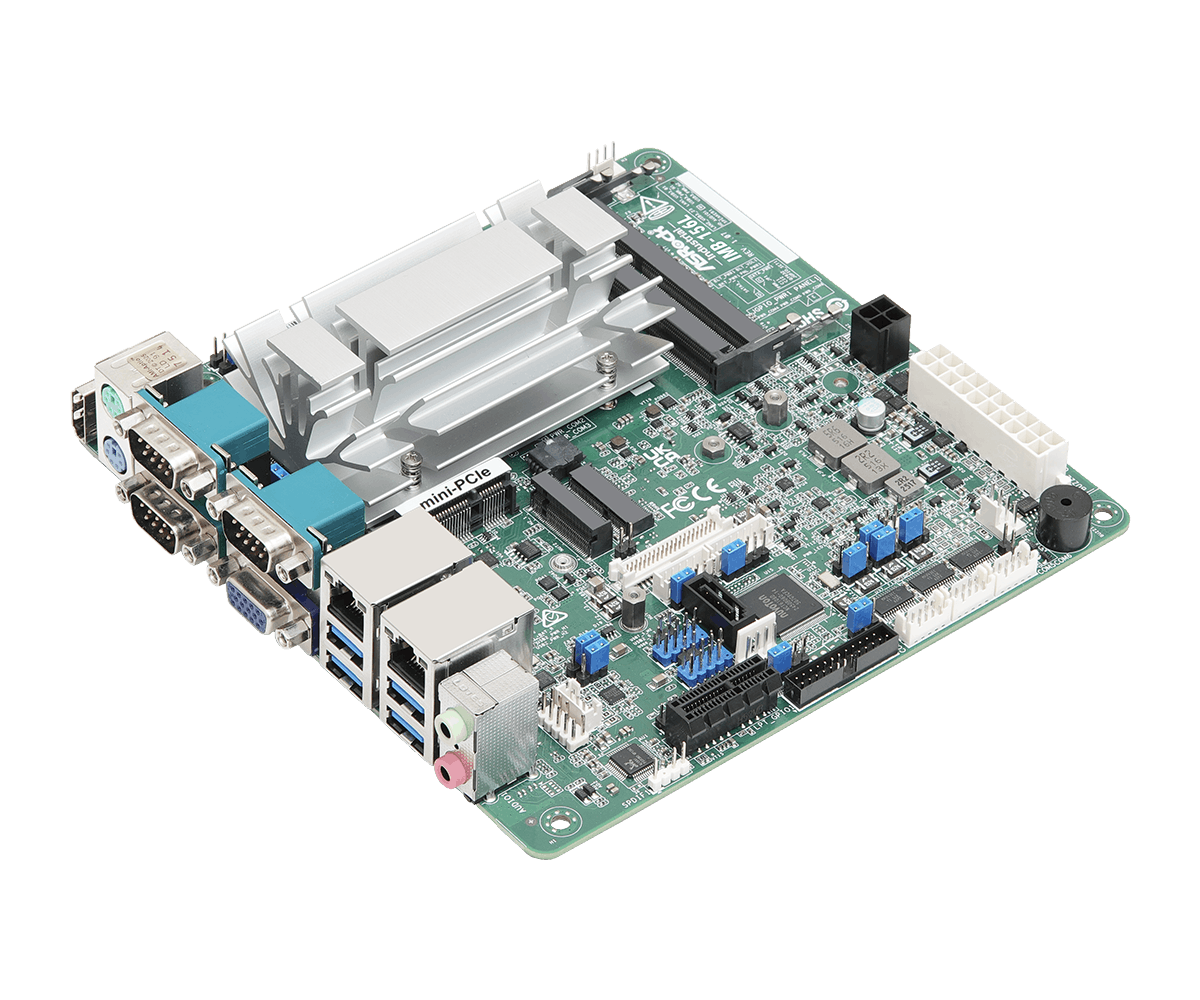

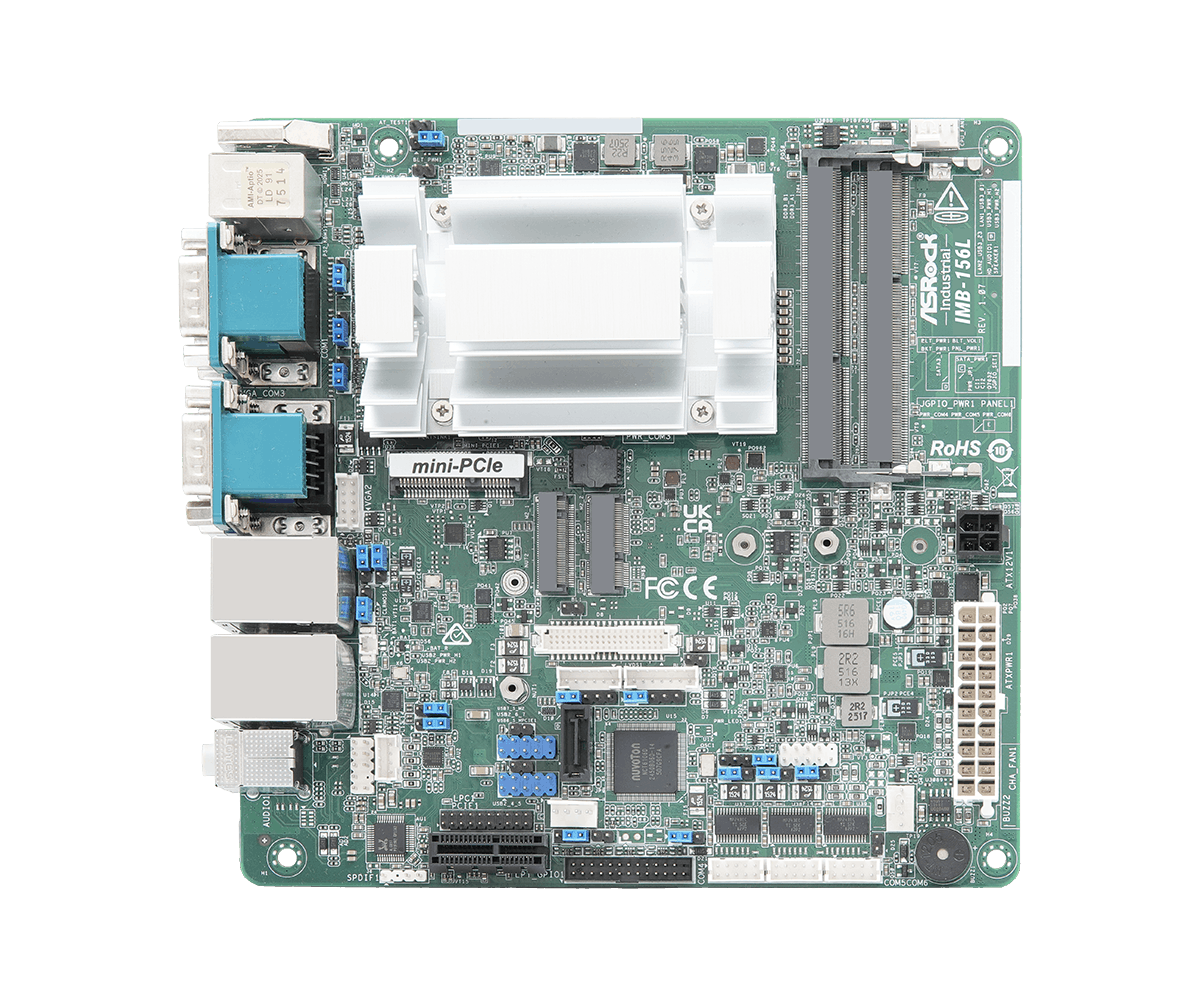

IMB-156L Mini-ITX Motherboard

Form Factor

Dimensions	Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU	Intel® Apollo Lake SoC Processor N3350, DC, 1.1 GHz, 6W
Chipset	SoC
BIOS	AMI SPI 128 Mbit

Memory

Technology	Dual Channel DDR3L 1866 MHz
Capacity	16 GB (8GB per DIMM)
Socket	2 x 204-pin SO-DIMM

Graphics

Controller	Intel® Gen9 Graphics DX 12
HDMI	HDMI 1.4b Max resolution up to 4096 x 2160@24Hz
VGA	Max resolution up to 1920 x 1200@60Hz
LVDS	Dual channel 24 bit up to 1920 x 1200@60Hz
MultiDisplay	Triple Display

Expansion Slot

PCIe	1 x PCIe x1 (Gen2)
mini-PCIe	1 x Full size with PCIe x1 and shared USB 2.0
M.2	1 x M.2 (Key E, 2230) with PCIe x1 and USB 2.0 for Wireless

Audio

Interface	Realtek ALC887/ALC897, High Definition Audio. Line-out,Mic-in

Ethernet

Controller/ Speed	2 x Realtek RTL8111G/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

Rear I/O

HDMI	1 x HDMI 1.4b
VGA	1
Ethernet	2 x Realtek 1 Gigabit LAN
USB	4 x USB 3.0
Audio	2 (Mic-in, Line-out)
COM	3 x COM (RS-232/422/485)
PS2	1 x PS / 2 combo

Internal Connector

USB	4 x USB 2.0 (2 x 2.54 pitch header)
COM	3 x COM (RS-232)
Parallel	1 (shared with GPIO)
GPIO	8 x GPI, 8 x GPO (shared with LPT header)
TPM	TPM Header
LVDS	1
SATA PWR Output	1
Speaker Header	1

Storage

M.2	1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD
SATA	1 x SATA3 (6Gb/s), SATA3_1 shared with M.2 Key M

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	12V or +19V~+24V DC-In / ATX PWR
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 60ºC
Storage Temp	-40° C ~ 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Accessories

Gift Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK)
Bulk Package	2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020221000AK)

上記製品は事前通知がないまま仕様変更する可能性はあります。製品のブランドと製品名は商標としてアスロックインダストリアルが所有、ユザー側より製品の既存仕様に対して変更を行われた場合弊社側一切保証を付けません。
