Consolidate Your Automated Optical Inspection (AOI)
Workload with Artificial Intelligence (AI)

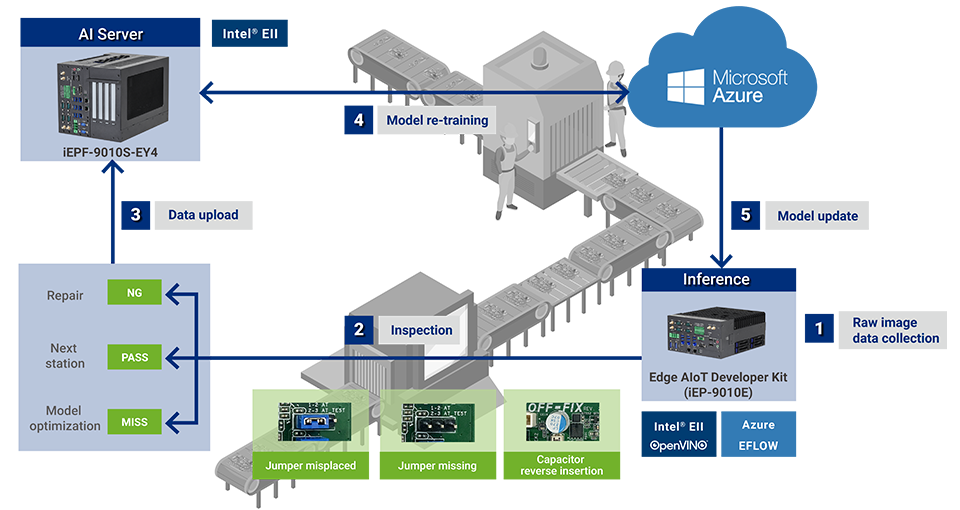

ASRock Industrial's Edge AIoT Developer Kit brings automated optical inspection (AOI) to the next level by using Artificial Intelligence (AI) to consolidate AOI workloads. To meet the increasing demand for inspection accuracy and speed, while keeping cost and power consumption under control, the Edge AIoT Developer Kit delivers a complete package of hardware and software to build your AI AOI solution.
Edge AIoT Developer Kit for AI AOI
The Edge AIoT Developer Kit features the iEP-9010E Robust Edge AIoT Platform, powered by the 12th generation Intel® Core™ processor preinstalled with Intel® Edge Insights for Industrial (EII) running on Microsoft Azure IoT Edge for Linux on Windows (EFLOW). It enables manufacturers to deploy AI applications on Linux- Intel® OpenVINO toolkit, and different applications for AI AOI on Windows, such as PLC, HMI, frame grabber, etc. to consolidate Windows and Linux workloads under a small system footprint. The Platform reduces IT/OT maintenance, and the overall cost of manufacturing while keeping the competitive advantages.
Key Features
12th generation Intel® Core™ processor with new hybrid design for outstanding multithreaded performance
Rich IOs & connectivity with support for real-time applications with Time Sensitive Networking (TSN) and Intel® Time Coordinated Computing (Intel® TCC)
Workload consolidation to reduce the number of devices to manage
Fast AI with Intel® Edge Insights for Industrial in conjunction with Intel® Distribution of OpenVINO toolkit
Rugged design for industrial environments
Connecting Edge to Cloud
Specification
Hardware Overview

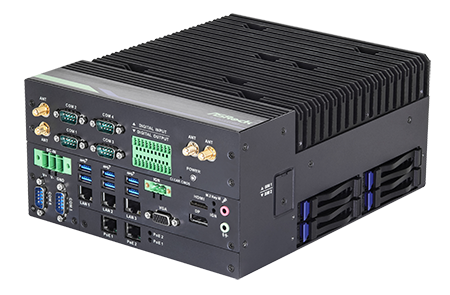

ASRock Industrial iEP-9010E Robust Edge AIoT Platform
12th Generation Intel® Core™ Processor (formerly Alder Lake)
4 x 260-pin DDR4 SO-DIMM up to 128GB (32GB per DIMM)
1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe
6 x USB 3.2 Gen2, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO
5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro)
1 x DisplayPort, 1 x HDMI 2.0b, 1 x VGA
Software Overview
Intel® Edge Insights for Industrial (Intel® EII)
Intel® Distribution of OpenVINO toolkit
Microsoft® Azure IoT Edge for Linux on Windows (EFLOW)
