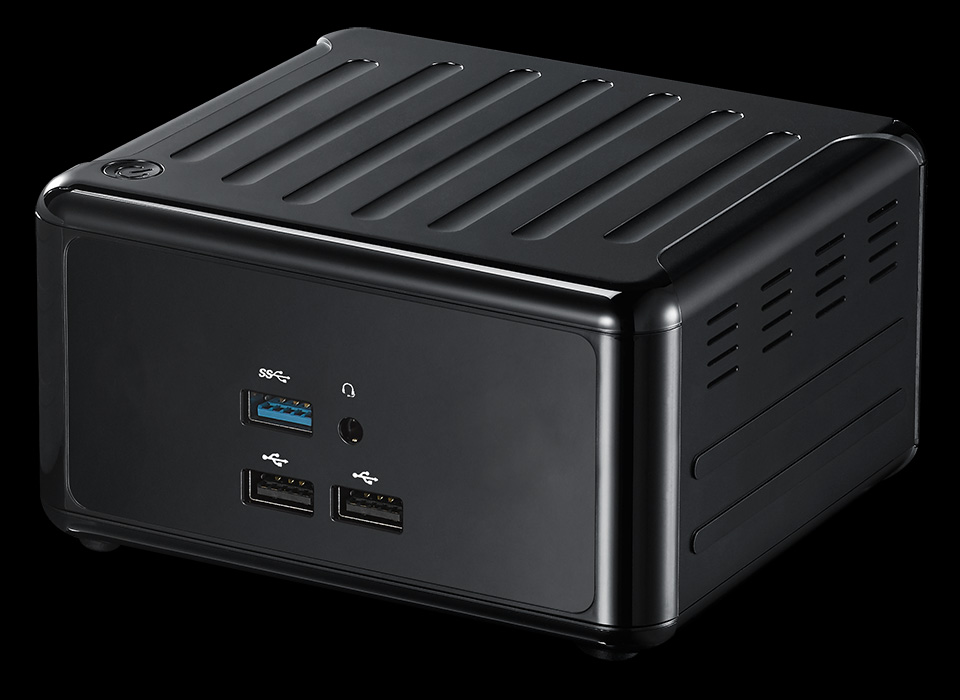

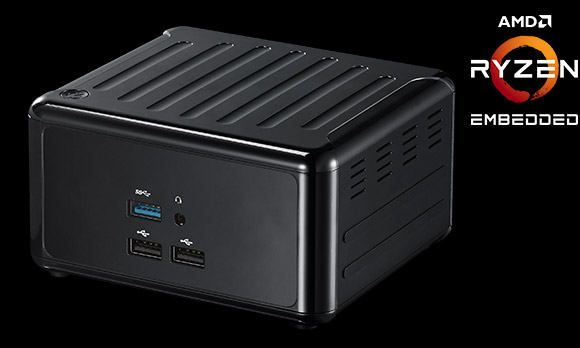

The 4X4 BOX-R1000V/ V1000M is the first AMD-powered 4"x4" form factor solution in the world. It is a high-performance embedded computer for industrial applications powered by the robust AMD Ryzen™ Embedded SoC.
Rich 4K Multimedia. Leading Graphics Performance.
Lights up three monitors simultaneously via two DisplayPort 1.2 and one HDMI 2.0 port.
Dual LAN enable you to connect simultaneously with public and internal networks to improve the security. And it can support teaming function enabled on this system makes data transmission more effective.
You can build triple 4K@60Hz displays with three video outputs: two DisplayPort 1.2 and one HDMI 2.0 port.

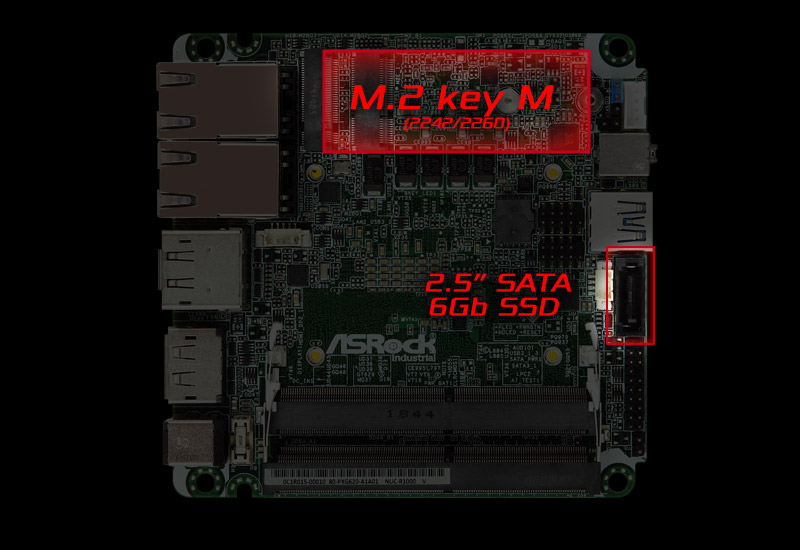

Expandability won’t limit by its size, this system is able to support 1 SATA3 port and 1 M.2 key M (2242/2260)* to satisfy all your needs.
*Not supports M.2 Key M 2280 modules.

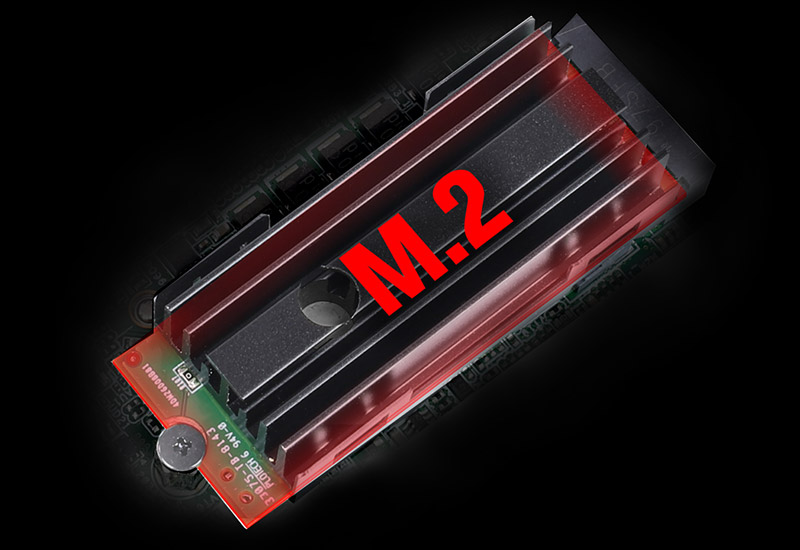

A massive full coverage M.2 heatsink can support Type 2242/2260 M.2 devices, it is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.
*Not supports M.2 Key M 2280 modules.
A home theater system for your living room, powerful enough for gaming.
Drives three independent monitors for working smart.
Support an expansive range of performance and power profiles, enabling highly versatile industrial PC designs for flexible deployment across processing- and graphics-driven industrial infrastructure.
| iBOX-V1000M | iBOX-R1000 |
 |
|
• Fanless design featuring the AMD Ryzen™ Embedded V-Series (V1605B) |
• Fanless design featuring the AMD Ryzen™ Embedded R-Series (iBOX-R1000M: R1606G / iBOX-R1000V: R1505G) |
• Targets industrial and fanless (0-50C) designs and supports for 3 displays (1 x HDMI, 2 x Displayport) |
• Targets industrial and fanless (0-50C) designs and supports for 3 displays (1 x HDMI, 2 x Displayport) |

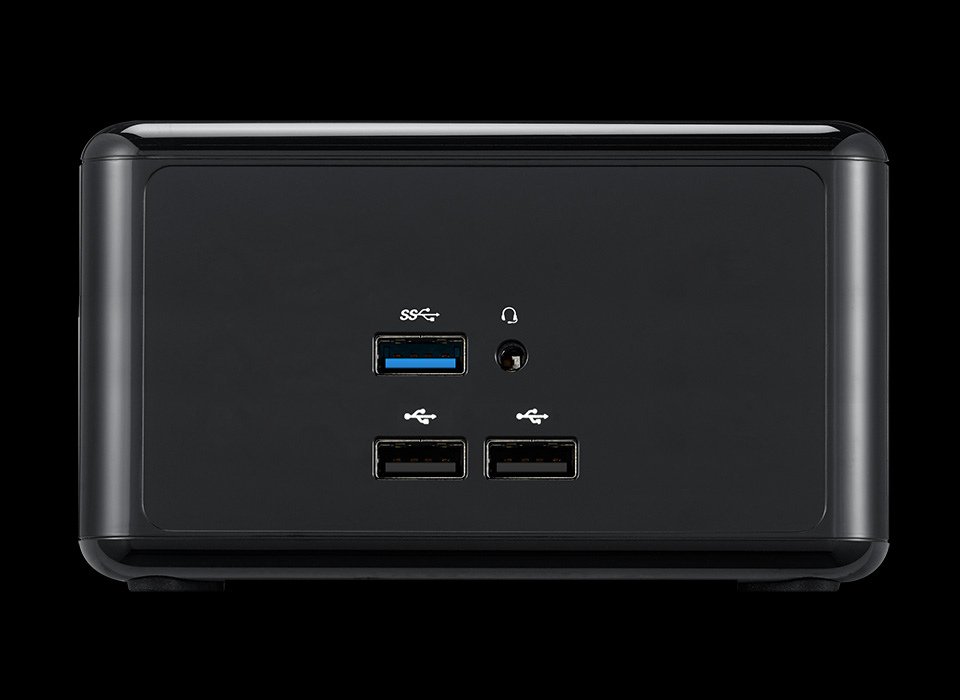

• Flexible I/O (2 x GbE, 3 x USB 3.1, 2 x USB 2.0) and expansion slot (1 x M.2 Key M) |
• Flexible I/O (2 x GbE, 3 x USB 3.1, 2 x USB 2.0) and expansion slot (1 x M.2 Key M) |

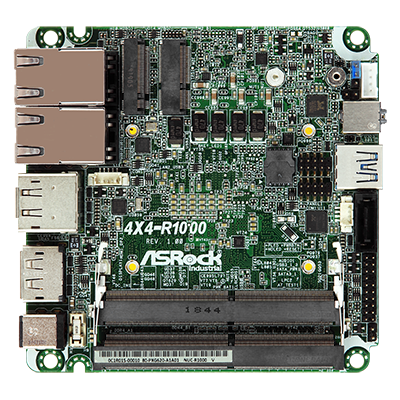

| 4X4-V1000M | 4X4-R1000 |
 |
 |
• Compact mother board design featuring the AMD Ryzen™ Embedded V Series (V1605B) |
• Compact mother board design featuring the AMD Ryzen™ Embedded R Series (4X4-R1000M: R1606G / 4X4-R1000V: R1505G) |
• Targets applications such as Industry 4.0. digital signage, edge and collaboration |
• Targets applications such as Industry 4.0. digital signage, edge and collaboration |
• Supports 3 displays (1 x HDMI, 2 x Displayport) and 2 x Realtek Gigabit LAN |
• Supports 3 displays (1 x HDMI, 2 x Displayport) and 2 x Realtek Gigabit LAN |
• Dual storage connectors: 1 x SATA3 port and 1 x M.2 key M |
• Dual storage connectors: 1 x SATA3 port and 1 x M.2 key M |
