AOI System through Workload Consolidation Brings 100X Data Transmission Enhancement for Increased Product Inspection Efficiency

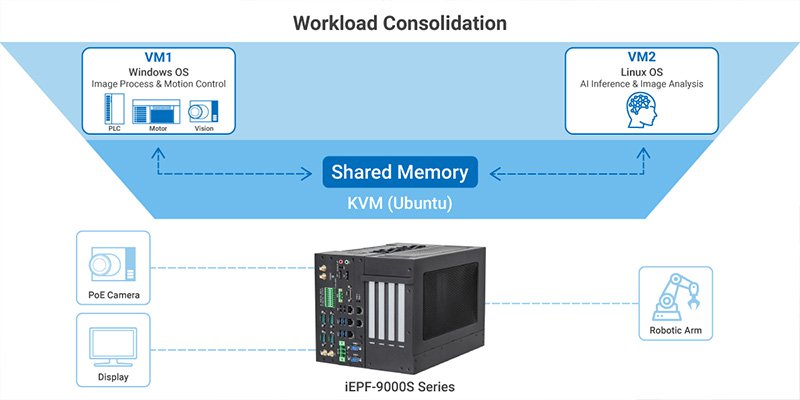

One leading DMS company used the iEPF-9000S Series through workload consolidation approach for phenomenal upgrades in its AOI system. One iEPF-9000S can process all AOI tasks for product quality inspection, replacing the traditional setting of using at least two IPC systems and improving overall images data transmission performance. The results show improved data transfer rate up to one hundred times for increased product inspection efficiency with fewer devices to manage, thus smaller system equipment footprint and lower system integration complexity.

Expendable Edge AIoT Platform Compact Edge AIoT Platform
  • iEPF-9000S-EX4
  • iEPF-9001S-EX4
  • iEPF-9002S-EX4

  • iEP-9000E
  • iEP-9001E
  • iEP-9002E


Key Features of iEPF-9000S/ iEP-9000E Series

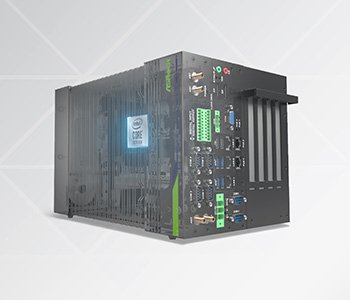

Super Computing Power

  • Intel® 10th Gen (Comet Lake) Xeon® W and Core™ Processors
  • 4 x 260-pin SO-DIMM up to 128GB (32GB per DIMM)

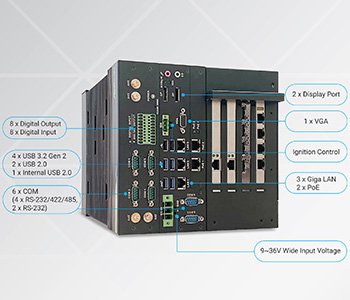

Rich Industrial-centric I/Os

  • 4 x USB 3.2 Gen2, 3 x USB 2.0, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO
  • 5 x Intel Gigabit LAN (2 support PoE)
  • Supports Triple Display, 2 x DisplayPort, 1 x VGA

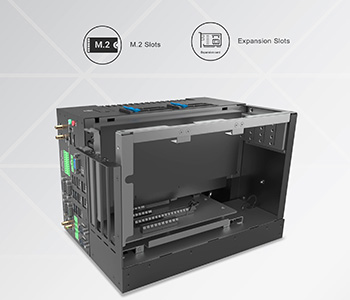

Flexible Expansions

  • 1 x PCIe x16 (Gen 3) or 2 x PCIe x8 (Gen 3), 2 x PCIe x4 [iEPF-9000S Series]
  • 1 x M.2 Key M, 1 x M.2 Key B, 1 x M.2 Key E, 2 x Mini PCIe

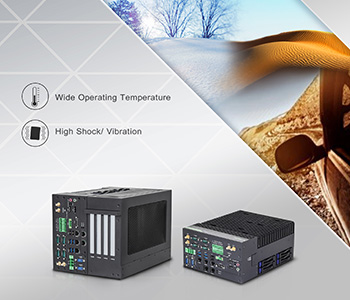

Rugged Design for Harsh Environment

  • -40~75°C Wide Operating Temperature
  • IEC-60068/Shock 100 Grms/Vibration 10G
What’s New
Wide Coverage of ASRock Industrial’s iEPF-9000S/ iEP-9000E Series from Industrial Media Outlets

More than 36 news reports from renowned industrial global media, such as, Embedded Computing Design, EETimes, Vision-systems Design, Industry EMEA, and more provided coverage on ASRock Ind’s ruggedized Edge AIoT Platform iEPF-9000S/ iEP-9000E Series products!
